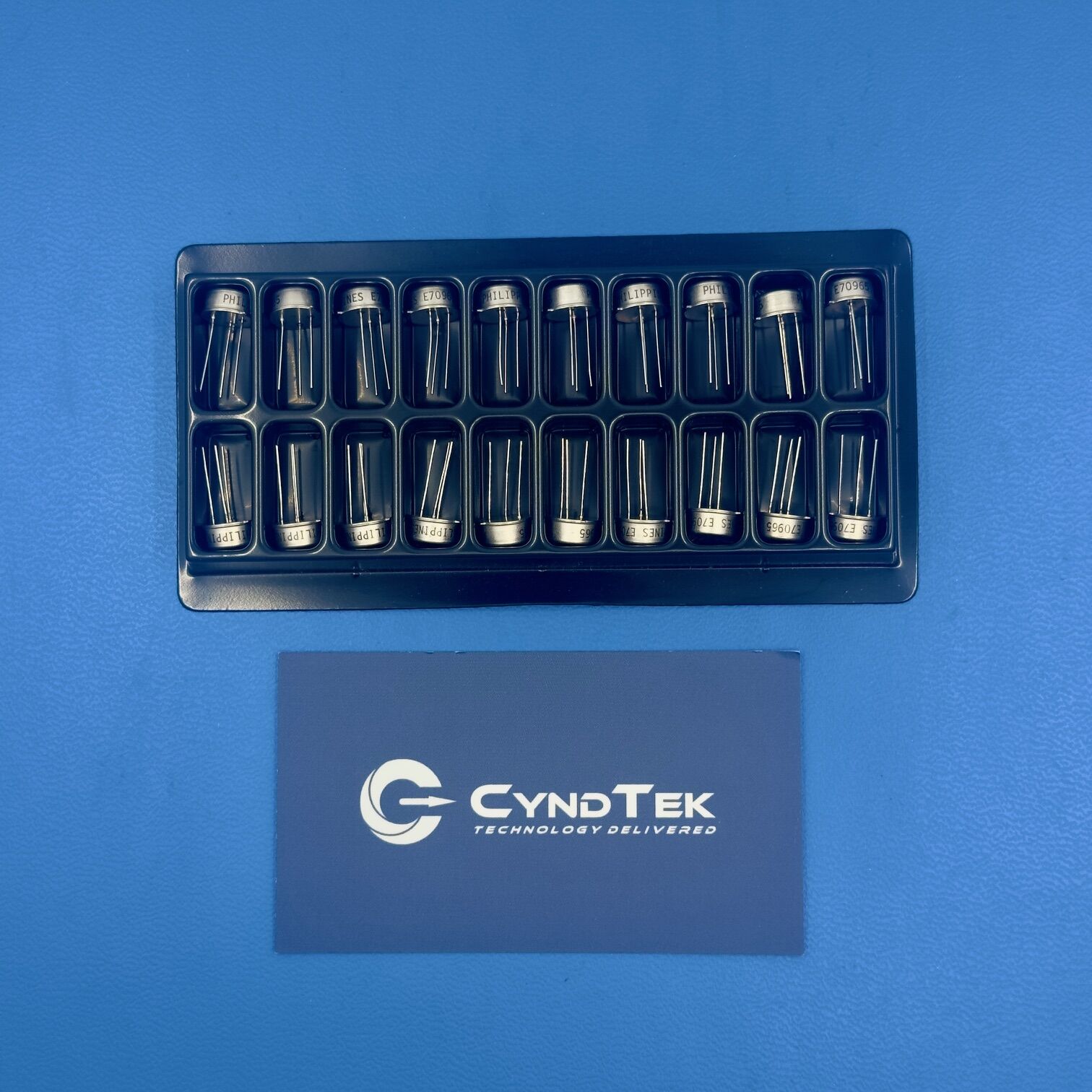

LT1086MH Specifications
Manufacturer: Linear Technology
Part Number: LT1086MH
NSN: 5962-01-431-4806
Product Type: Linear Voltage Regulator
Output Voltage: 5 V
Output Current: 1.5 A
Input Voltage Range: Up to 30 V
Dropout Voltage: Low Dropout Design
Package Type: TO-220-3
Mounting Type: Through Hole
Regulator Type: Positive Fixed Output
Operating Temperature Range: -55°C to +125°C
Application Class: Military and Industrial
Compliance: Military Temperature Range
Packaging: Factory
Key Features
The LT1086MH is a low dropout linear regulator designed to provide stable 5 V output at up to 1.5 A. It supports input voltages up to 30 V for flexible power supply designs. Additionally, the low dropout architecture improves efficiency compared to standard linear regulators. The TO-220-3 package supports effective thermal management with proper heat sinking. Because it operates across the military temperature range, it integrates into aerospace and defense power systems. As a result, it delivers dependable voltage regulation in demanding environments.
Applications
Military avionics power modules
Ground vehicle control electronics
Naval communication systems
Aerospace instrumentation platforms
Industrial power supplies
Embedded control boards
Battery backup regulation circuits
High-reliability DC regulation systems
Product Overview
The LT1086MH from Linear Technology delivers reliable fixed 5 V regulation for rugged electronic systems. First, its 1.5 A output capability supports moderate power loads. Furthermore, the low dropout design allows efficient operation with limited input-to-output voltage differential. Because it is housed in a TO-220 package, it enables effective heat dissipation with standard mounting hardware.
Moreover, the military temperature rating supports operation in extreme environmental conditions. In addition, through-hole mounting enhances mechanical stability in high-vibration platforms. Therefore, it is suitable for both new system builds and maintenance replacements. Overall, this linear regulator provides stable voltage output, rugged construction, and long-term operational reliability.
