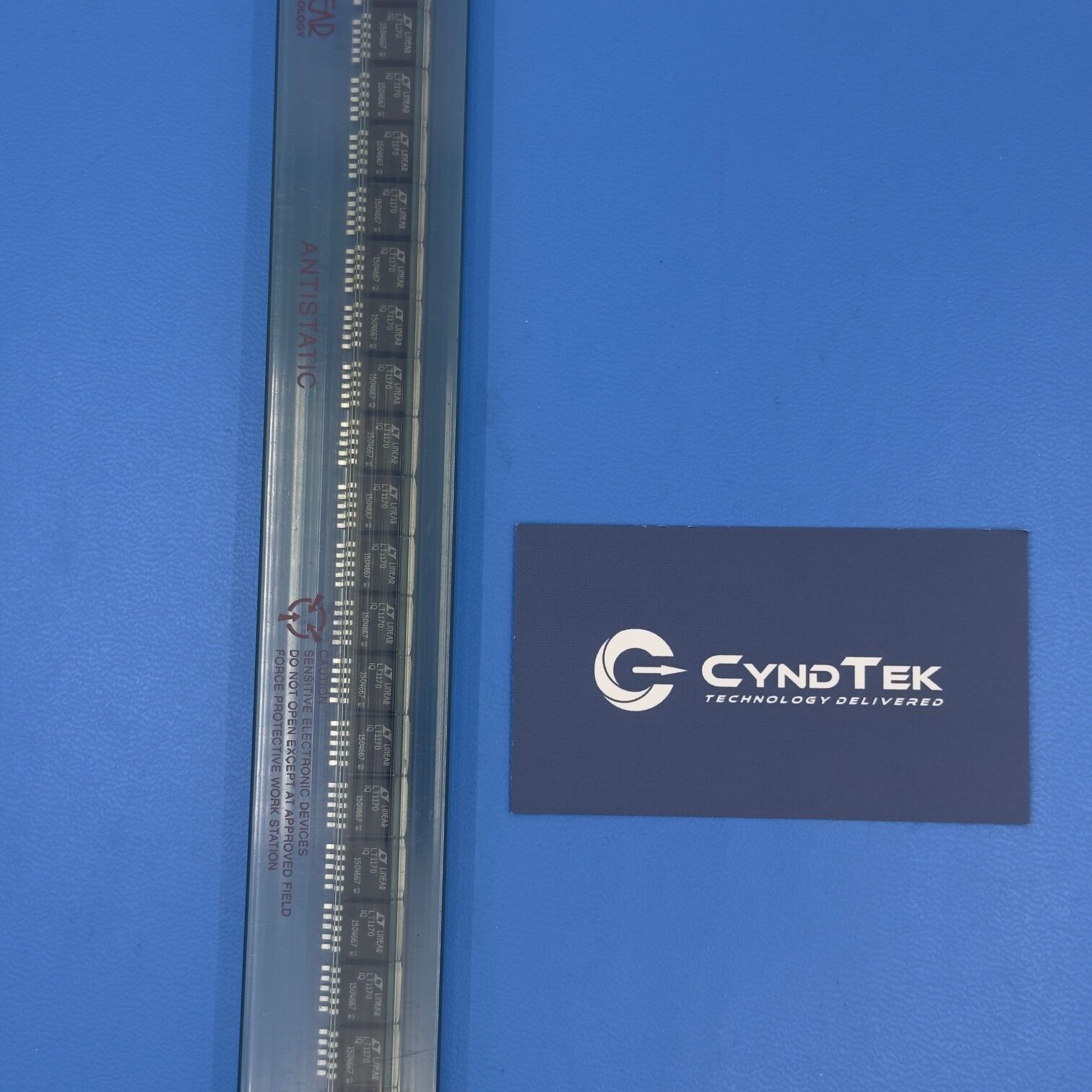

LT1170IQ#PBF Specifications
Manufacturer: Linear Technology
Part Number: LT1170IQ#PBF
Product Type: Switching Regulator Controller
Regulator Type: High Power Switch Regulator
Output Current: Up to 5 A
Switching Frequency: 100 kHz
Control Method: Current Mode Switching Regulator
Supply Voltage Range: Wide Input Operating Range
Internal Switch: Integrated Power Switch
Package Type: SOIC-24
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Applications Class: Switching Power Regulation
Packaging: Factory
Key Features
The LT1170IQ#PBF is a high power switching regulator designed for efficient DC to DC power conversion. It supports output currents up to 5 amps which allows it to drive high power loads. Additionally, the integrated switching architecture improves efficiency compared to traditional linear regulators. Because switching regulators reduce heat dissipation and improve energy efficiency, engineers frequently use them in power supply designs. As a result, the LT1170IQ#PBF supports reliable power conversion in embedded and industrial electronic systems.
Applications
Switching power supplies
DC to DC converter modules
Industrial power regulation systems
Communication equipment power supplies
Embedded computing platforms
Automotive electronic systems
Battery powered equipment
Power distribution circuits
Product Overview
The LT1170IQ#PBF from Linear Technology provides an efficient switching regulator solution for high power electronic systems. First, the integrated high current switching architecture allows the regulator to drive loads up to 5 amps.
Additionally, the device operates at switching frequencies around 100 kilohertz which allows efficient power conversion while maintaining stable regulation. Because switching regulators reduce energy losses, they are widely used in industrial electronics and embedded computing platforms.
Moreover, the SOIC-24 package supports reliable surface mount installation and compact circuit board integration. Engineers frequently use the LT1170 switching regulator family in power supply modules, communication hardware, and industrial power control systems.
Therefore, the LT1170IQ#PBF remains a dependable solution for efficient DC to DC power conversion in high power electronic applications.
