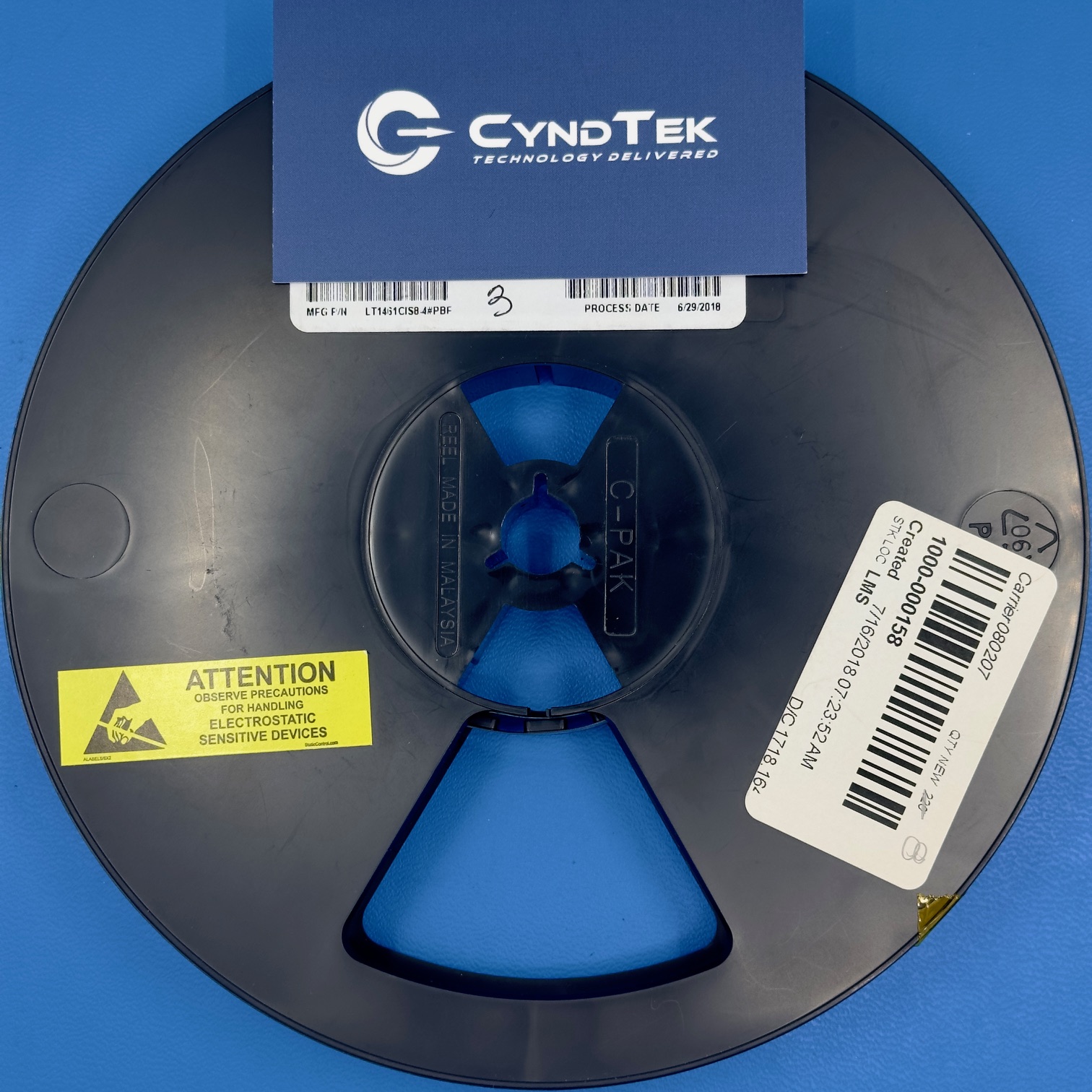

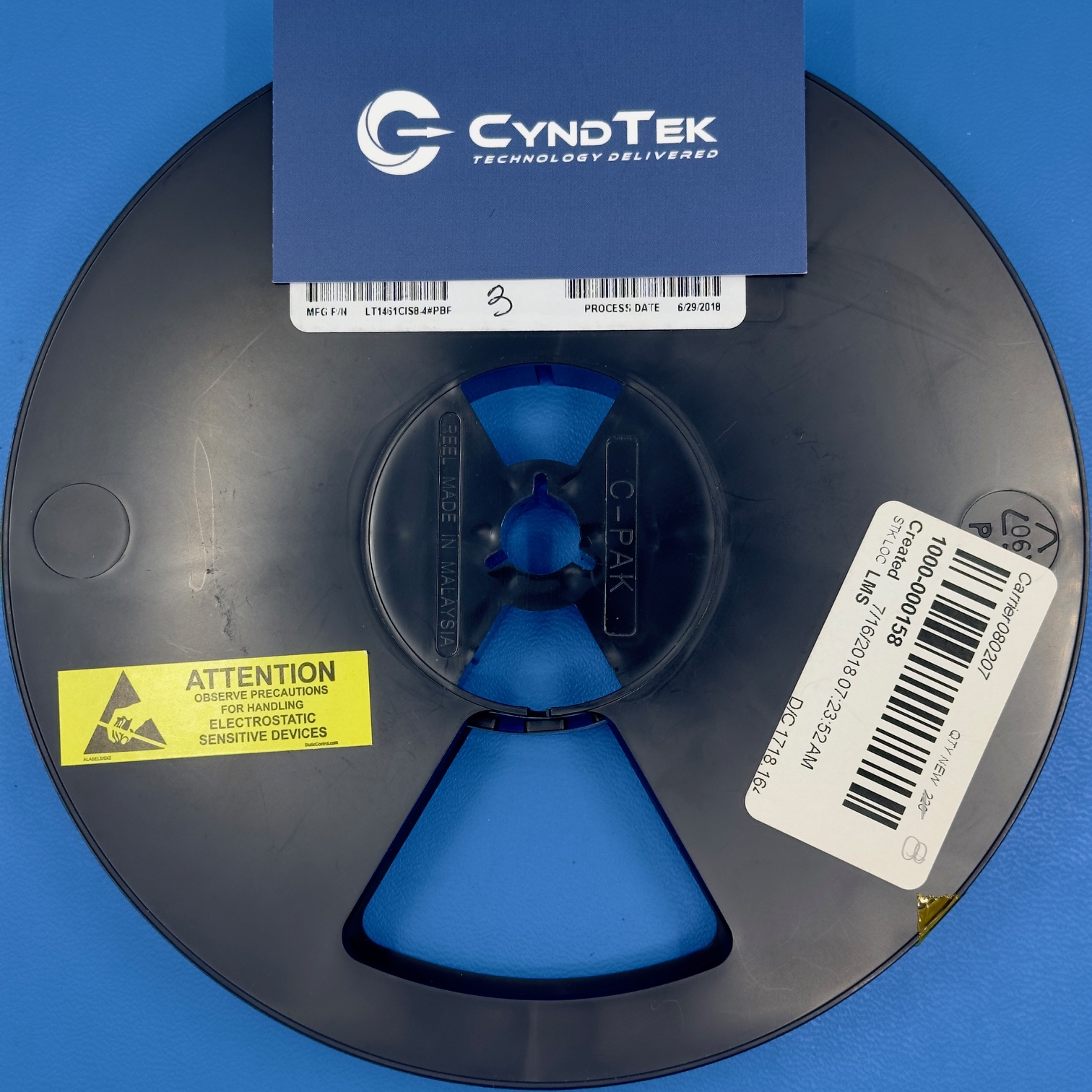

LT1461CIS8-4#PBF Specifications
Manufacturer: Analog Devices
Part Number: LT1461CIS8-4#PBF
Product Type: Precision Voltage Reference
Reference Voltage: 4.096 V
Initial Accuracy: ±0.08%
Temperature Coefficient: Low Drift Precision Reference
Output Type: Series Voltage Reference
Supply Voltage Range: 5 V to 20 V
Output Current: Up to 50 mA
Package Type: SOIC-8
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Applications Class: Precision Analog Systems
Packaging: Factory
Key Features
The LT1461CIS8-4#PBF is a precision voltage reference designed to provide a highly stable reference voltage for analog circuits. It delivers a 4.096 volt output with an initial accuracy of ±0.08 percent. Additionally, the device features very low temperature drift which helps maintain reference stability across varying environmental conditions. Because precision reference voltages are critical in measurement systems, engineers frequently use this device in instrumentation and data acquisition hardware.
Applications
Precision data acquisition systems
Instrumentation amplifiers
Analog to digital converter reference circuits
Digital to analog converter reference circuits
Industrial measurement equipment
Calibration and test instrumentation
Medical monitoring electronics
Precision control systems
Product Overview
The LT1461CIS8-4#PBF from Analog Devices provides a highly accurate voltage reference for precision analog circuit designs. First, the device delivers a stable 4.096 volt reference voltage that is commonly used in high resolution analog systems.
Additionally, the precision trimmed architecture supports very low temperature drift and excellent long-term stability. Because analog measurement systems rely on stable reference voltages, designers frequently select this device for instrumentation and data conversion applications.
Moreover, the SOIC-8 surface mount package allows integration into compact analog circuit boards. Engineers commonly integrate the LT1461 into high accuracy ADC and DAC reference circuits where voltage stability directly affects system performance.
Therefore, the LT1461CIS8-4#PBF provides dependable reference voltage performance for precision analog electronics used in industrial, medical, and measurement systems.
