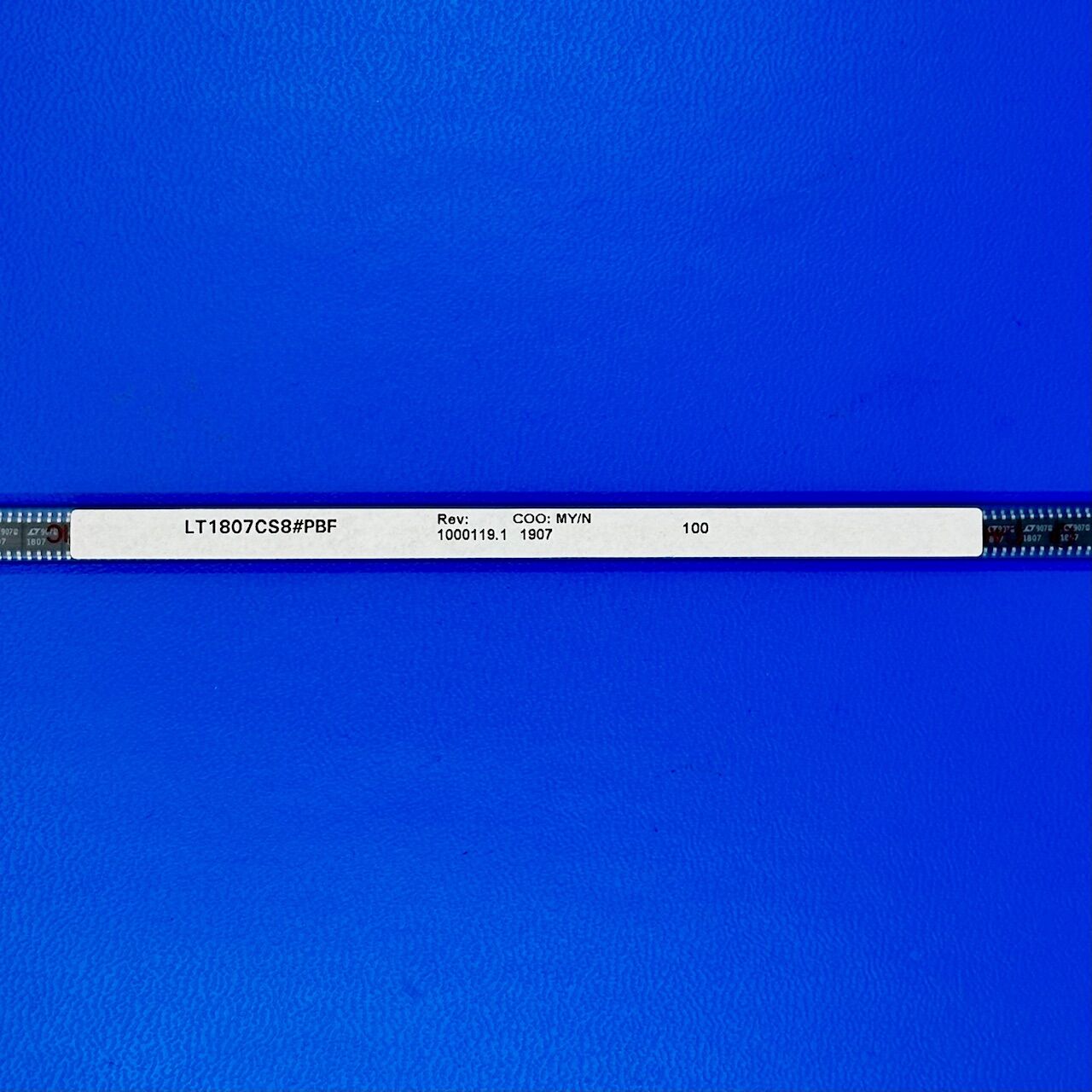

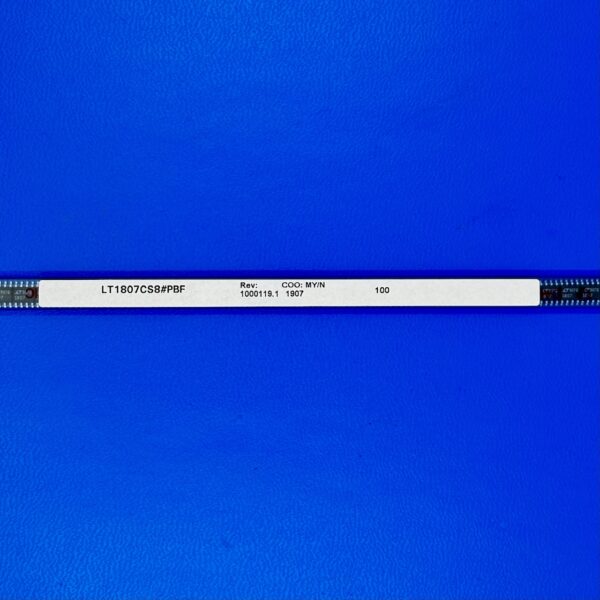

LT1807CS8#PBF

LT1807CS8#PBF Specifications

Manufacturer: Analog Devices
Part Number: LT1807CS8#PBF
Product Type: Dual High-Speed, Low-Noise Op Amp
Number of Channels: 2
Gain Bandwidth Product: 325 MHz
Slew Rate: 140 V/µs
Input Offset Voltage: 100 µV
Input Bias Current: 1 µA
Voltage Noise Density: 3.5 nV/√Hz
Output Current per Channel: 85 mA
Supply Voltage Range: 2.5 V to 12.6 V
Operating Temperature Range: 0°C to +70°C
Input/Output Type: Rail-to-Rail
Mounting Type: Surface Mount
Package / Case: 8-SOIC (3.90 mm Width)
RoHS Status: RoHS Compliant

Key Features

The LT1807CS8#PBF is a precision dual operational amplifier from Analog Devices, offering high-speed performance with low noise and distortion. Its 325 MHz gain bandwidth and 140 V/µs slew rate make it ideal for fast analog signal processing. With a low offset voltage of just 100 µV and a bias current of 1 µA, it provides excellent accuracy. Additionally, it features rail-to-rail input and output, which ensures maximum dynamic range in low-voltage systems. Capable of sourcing or sinking 85 mA per channel, the LT1807 can drive capacitive or low-impedance loads with ease. Designed to operate from a 2.5 V to 12.6 V supply, it provides flexibility across various application environments.

Applications

High-speed digital oscilloscopes requiring accurate waveform acquisition
Broadcast video systems with low distortion requirements for analog signal paths
Ultrasound diagnostic imaging amplifiers needing high resolution and low noise
RF communication modules for signal integrity in transceivers and base stations
Precision motor control and servo feedback circuits in factory automation systems

Product Overview

Analog Devices’ LT1807CS8#PBF is a dual-channel op amp designed for applications that require high speed and low noise in a compact footprint. Its rail-to-rail architecture allows full swing on both input and output, enhancing its dynamic range in low-voltage circuits. With a fast slew rate and wide bandwidth, this amplifier maintains signal clarity even under rapid voltage changes. Its ability to source and sink 85 mA makes it especially useful for applications requiring the direct driving of heavy loads or capacitive interfaces. With its robust specifications and proven reliability, the LT1807CS8#PBF stands out in designs where signal precision and response speed are equally critical.
