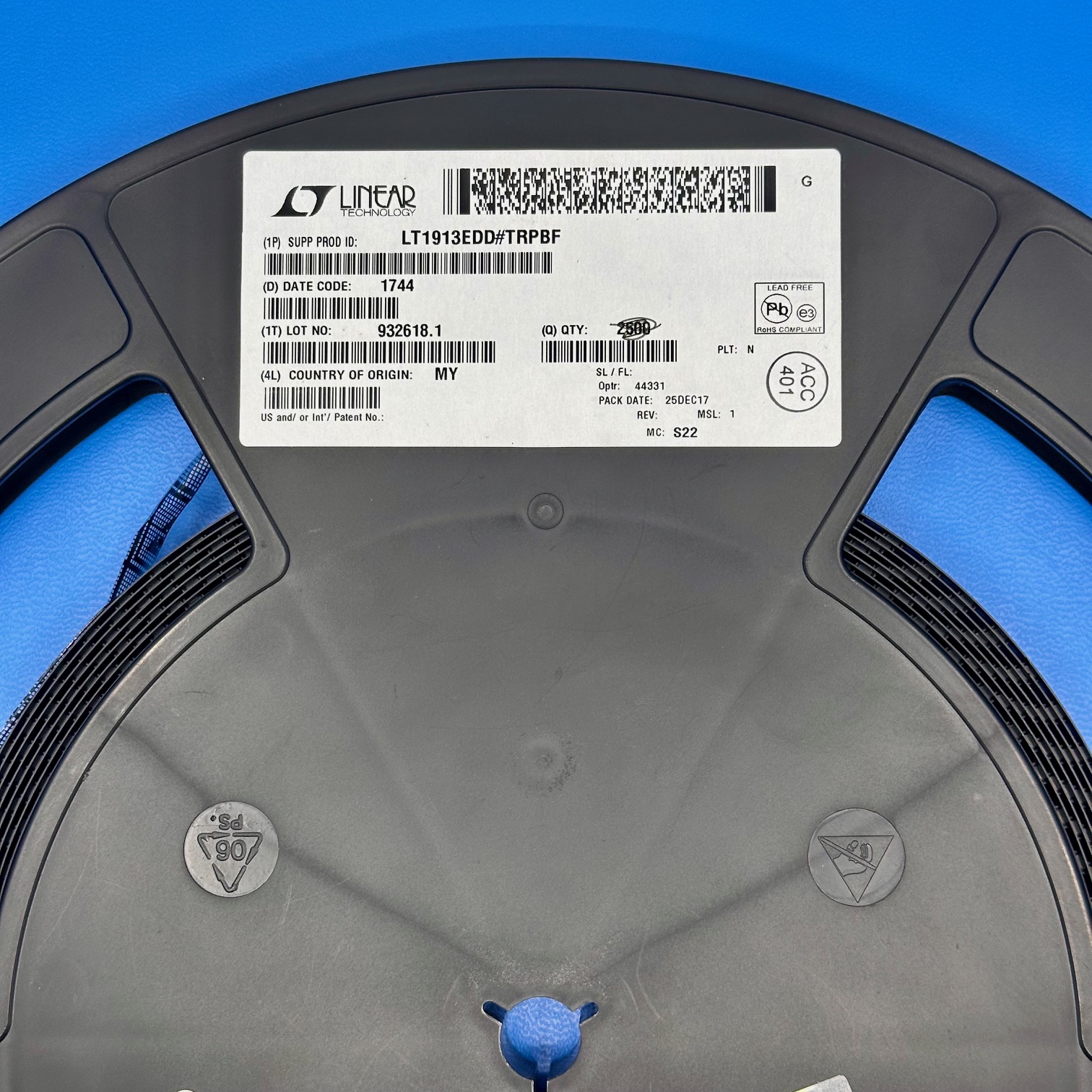

LT1913EDD#TRPBF Specifications
Manufacturer: Linear Technology
Part Number: LT1913EDD#TRPBF
Product Type: Step-Down Switching Regulator
Input Voltage Range: 3.6V to 25V
Maximum Output Current: 3.5A
Adjustable Switching Frequency: 200kHz to 2.4MHz
Feedback Reference Voltage: 0.790V
On-Resistance: 95mΩ
Shutdown Current: Less than 1µA
Package / Case: 10-Lead 3mm × 3mm DFN
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
RoHS Status: RoHS Compliant
Key Features
The LT1913EDD#TRPBF is a versatile step-down switching regulator designed for high efficiency and compact applications. It operates within an input voltage range of 3.6V to 25V and delivers up to 3.5A of output current. The device features an adjustable switching frequency from 200kHz to 2.4MHz, allowing designers to optimize performance based on specific application requirements. Its low on-resistance of 95mΩ enhances efficiency, while the integrated boost diode simplifies the design process. The regulator also includes a power good flag for monitoring output voltage status and supports synchronization between 250kHz to 2MHz for applications requiring frequency coordination.
Applications
Automotive battery regulation
Power supplies for portable products
Distributed power regulation systems
Industrial power supplies
Wall transformer regulation
Product Overview
The LT1913EDD#TRPBF is engineered to meet the demands of modern power management systems. Its wide input voltage range and high output current capability make it suitable for various applications, from automotive battery regulation to industrial power supplies. The adjustable switching frequency provides flexibility in balancing efficiency and component size, while the low shutdown current of less than 1µA ensures minimal power consumption when inactive. The inclusion of features such as soft-start capability, thermal protection, and a power good flag. This enhances its reliability and ease of use in complex designs.
