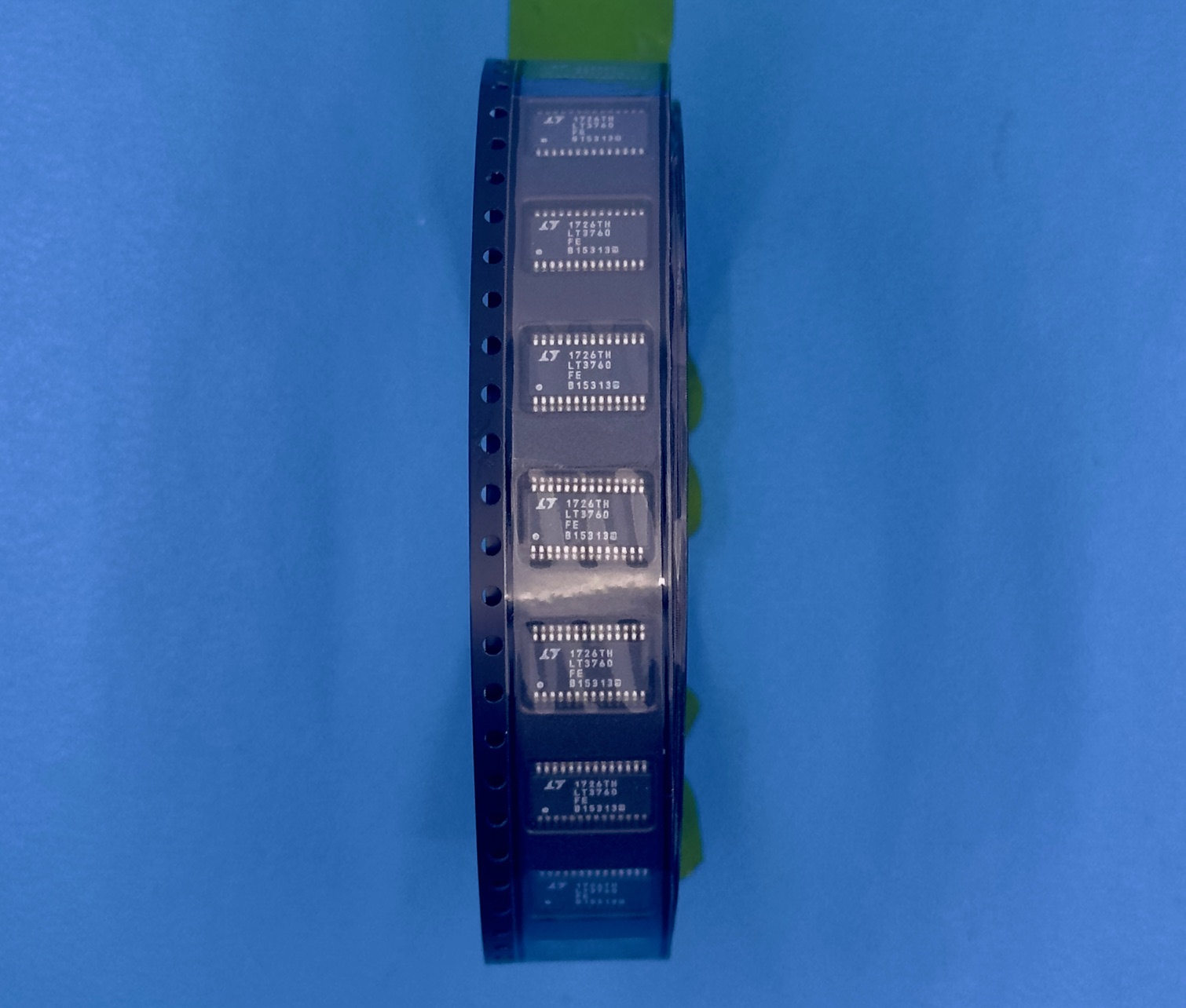

LT3760EFE#TRPBF Specifications
Manufacturer: Analog Devices
Part Number: LT3760EFE#TRPBF
NSN: 5962-01-647-9158
Product Type: LED Driver Controller
Topology: Boost, Buck, Buck-Boost
Number of Outputs: Single Channel
Supply Current: 12 mA Typical
Input Voltage Range: 8 V to 40 V
Switching Frequency: Programmable
Control Interface: Analog Dimming
Package Type: 28-Pin TSSOP Exposed Pad
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
Compliance: RoHS Compliant
Packaging: Factory
Key Features
The LT3760EFE#TRPBF is a high-performance LED driver controller designed for precision current regulation. It supports boost, buck, and buck-boost configurations for flexible system design. Additionally, the programmable switching frequency allows optimized efficiency across applications. The 12 mA typical supply current supports stable operation in demanding environments. Because it integrates advanced current sensing architecture, it delivers accurate LED current control. As a result, it improves brightness stability and system efficiency in high-reliability lighting systems.
Applications
Aerospace lighting control modules
Military vehicle LED systems
Industrial high-power LED drivers
Architectural lighting controllers
Automotive LED headlamp systems
Signal and beacon lighting assemblies
Power supply control circuits
High-efficiency illumination systems
Product Overview
The LT3760EFE#TRPBF from Analog Devices delivers dependable LED current control for demanding applications. First, its wide input voltage range supports diverse power architectures. Furthermore, the flexible topology options simplify system integration. Because it incorporates programmable switching features, designers can optimize thermal and efficiency performance.
Moreover, the exposed pad TSSOP package enhances thermal dissipation. In addition, the device supports analog dimming for precise brightness adjustment. Therefore, it is suitable for both new production builds and advanced lighting retrofits. Overall, this LED driver controller provides accurate current regulation, design flexibility, and reliable performance in industrial and defense environments.
