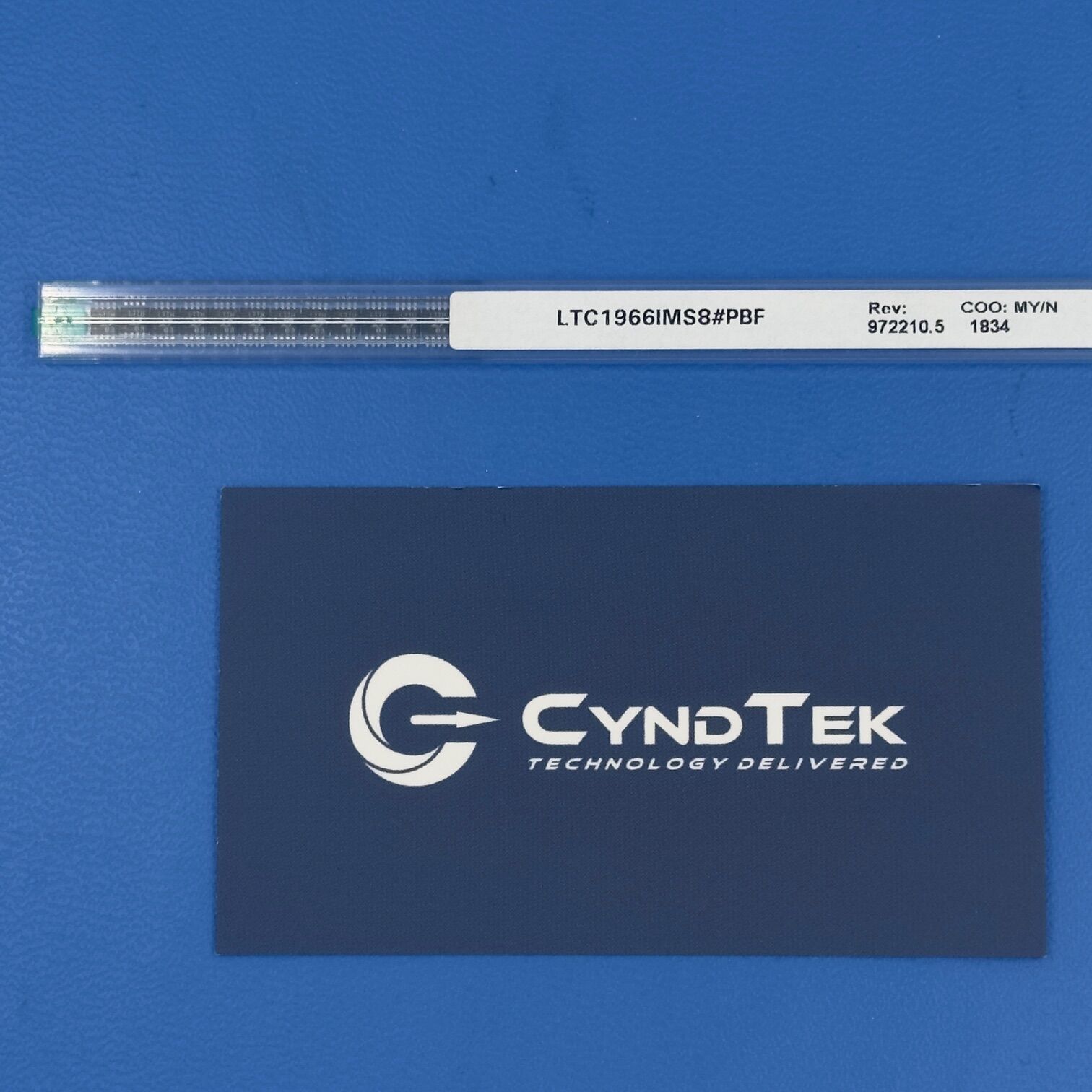

LTC1966IMS8#PBF Specifications
Manufacturer: Analog Devices
Part Number: LTC1966IMS8#PBF
Product Type: RMS-to-DC Converter
Input Signal Type: AC or Complex Waveforms
Conversion Function: True RMS to DC Output
Supply Voltage Range: 4.5 V to 5.5 V
Input Bandwidth: Wideband Precision Measurement
Accuracy: High Precision RMS Measurement
Output Type: Analog DC Voltage
Package Type: MSOP-8
Mounting Type: Surface Mount
Operating Temperature Range: Industrial Temperature Range
Application Class: Instrumentation and Signal Measurement
Packaging: Factory
Key Features
The LTC1966IMS8#PBF is a precision RMS-to-DC converter designed for accurate measurement of AC and complex waveform signals. It converts the true RMS value of an input signal into a proportional DC output voltage. Additionally, the device supports a wide range of waveform types including sinusoidal, square, and complex signals. The integrated architecture simplifies circuit design by eliminating the need for discrete RMS calculation circuits. Because it uses precision internal computation techniques, it delivers highly accurate signal measurement performance. As a result, the device is well suited for instrumentation and measurement applications requiring reliable RMS detection.
Applications
Power measurement instruments
Industrial signal monitoring equipment
True RMS digital multimeters
Data acquisition systems
Audio level measurement circuits
Process monitoring electronics
Test and measurement platforms
Embedded instrumentation systems
Product Overview
The LTC1966IMS8#PBF from Analog Devices provides highly accurate RMS-to-DC conversion for precision measurement systems. First, the device processes AC signals and produces a proportional DC output representing the true RMS value. Furthermore, the converter supports complex waveform inputs that traditional averaging circuits cannot measure accurately. Because the integrated design eliminates external computational circuitry, it simplifies system design and reduces component count.
Moreover, the MSOP-8 package enables compact installation in high-density PCB layouts. In addition, the precision architecture improves measurement accuracy across a wide range of signal conditions. Therefore, the LTC1966IMS8#PBF is commonly used in instrumentation equipment, industrial monitoring systems, and measurement electronics. Overall, the device provides reliable RMS measurement capability and stable analog output performance.
