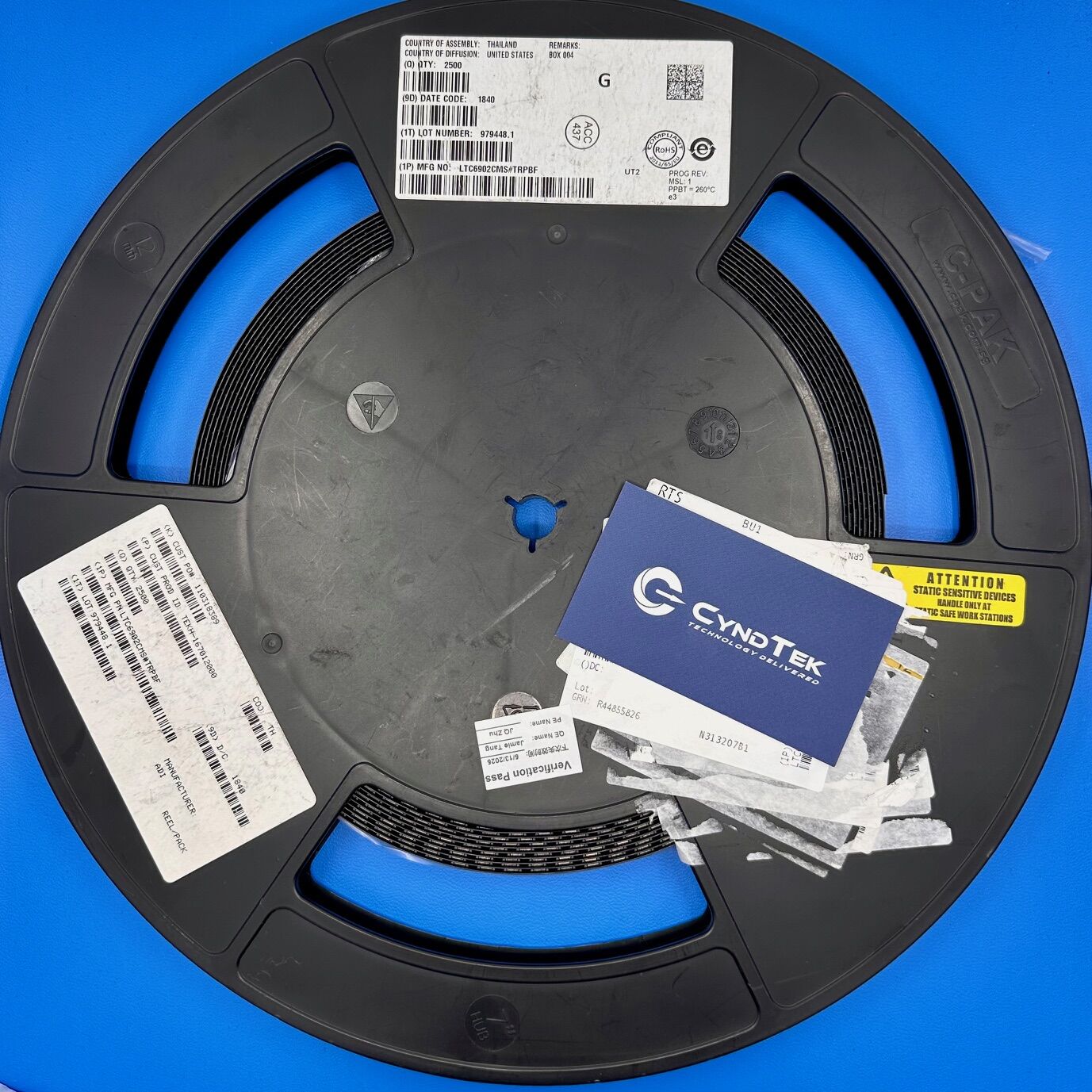

LTC6902CMS#TRPBF

LTC6902CMS#TRPBF Specifications

Manufacturer: Analog Devices Inc.
Part Number: LTC6902CMS#TRPBF
Product Type: Multiphase Oscillator with Spread Spectrum Frequency Modulation
Frequency Range: 5 kHz to 20 MHz
Output Phases: 2-, 3-, or 4-phase
Supply Voltage Range: 2.7 V to 5.5 V
Supply Current: 400 µA typical at 3 V, 1 MHz
Frequency Accuracy: ≤1.5% max (5 kHz to 10 MHz, TA = 25°C)
Temperature Stability: ±40 ppm/°C
Start-Up Time: 50 µs to 1.5 ms
Output Driver Resistance: 100 Ω CMOS
Package / Case: 10-Lead MSOP
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The LTC6902CMS#TRPBF is a precision, low-power oscillator that provides multiphase outputs in a compact package. Its frequency is set by a single external resistor, simplifying design and reducing component count. The device supports 2-, 3-, or 4-phase outputs, offering flexibility for various applications. Additionally, it features optional spread spectrum frequency modulation (SSFM), which can be activated and controlled by an additional external resistor. This SSFM capability modulates the oscillator’s frequency with a pseudorandom noise signal, effectively spreading the oscillator’s energy over a wide frequency band. Consequently, this reduces peak electromagnetic radiation levels and improves electromagnetic compatibility (EMC) performance. The oscillator operates over a wide frequency range from 5 kHz to 20 MHz and maintains high accuracy and stability across its operating range.

Applications

Switching power supply clock reference
Portable and battery-powered equipment
PDAs
Cell phones
Clocking switched capacitor filters

Product Overview

The LTC6902CMS#TRPBF from Analog Devices Inc. is engineered to deliver precise and reliable clock signals for applications requiring multiphase outputs. Its ability to generate 2-, 3-, or 4-phase waveforms makes it particularly suitable for driving multiphase switching regulators and other timing-critical circuits. The optional spread spectrum frequency modulation enhances EMC performance by reducing peak electromagnetic emissions. Operating from a single supply voltage between 2.7 V and 5.5 V, the device consumes minimal power, making it ideal for portable and battery-operated devices. The 10-lead MSOP package supports surface mount assembly, facilitating compact and efficient PCB layouts. Overall, the LTC6902CMS#TRPBF offers a versatile and high-performance solution for designers seeking a programmable oscillator with multiphase output capabilities.
