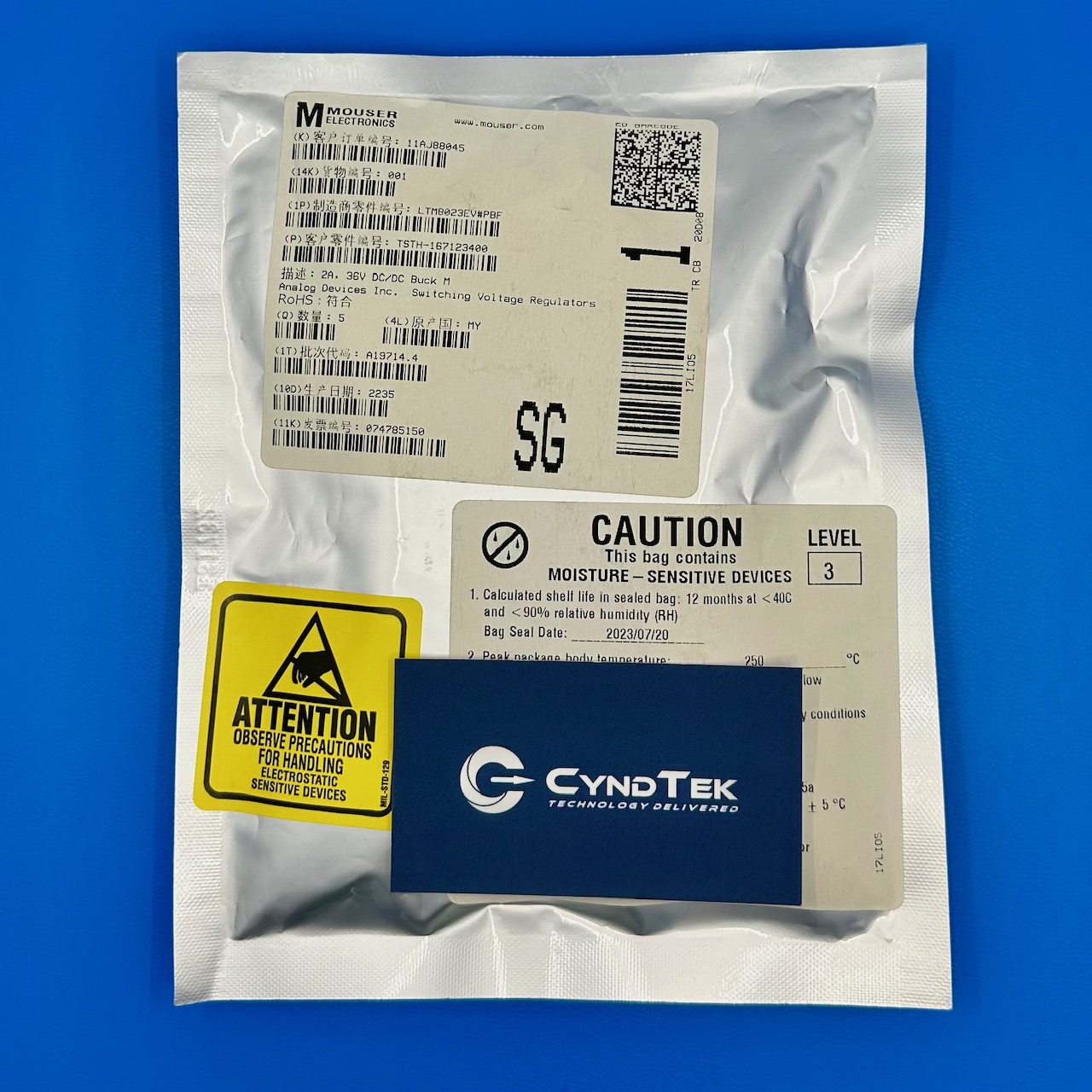

LTM8023EV#PBF

LTM8023EV#PBF

$8.00

DC DC CONVERTER 0.8-10V 2A Buck Module

  • Manufacturer: Analog Devices Inc.
  • Part Number: LTM8023EV#PBF
  • Packaging:  Cut Tape
  • Quantity: Each
  • Datecode: 2235

Availability: 5 in stock

SKU TSX005E Category Brand:

LTM8023EV#PBF – Specifications

  • Manufacturer: Analog Devices (formerly Linear Technology)
  • Output Voltage: 0.8V to 10V
  • Input Voltage Range: 3.6V to 36V
  • Output Current: Up to 2A
  • Switching Frequency: 200kHz to 2.4MHz
  • Efficiency: Up to 90%
  • Topology: Step-down (Buck)
  • Operating Temperature Range: -40°C to +125°C
  • Package Type: 11.25mm × 9mm × 4.92mm LGA
Key Features

The LTM8023EV#PBF is a compact and efficient DC-DC step-down μModule® regulator, offering a wide input voltage range of 3.6V to 36V. Its integrated design simplifies power management, reducing external component requirements while maintaining high efficiency of up to 90%. The adjustable switching frequency (200kHz to 2.4MHz) allows flexibility in design optimization. With a small LGA package, it enables easy integration into space-constrained applications while supporting automated assembly. Its wide operating temperature range ensures reliability in demanding industrial and automotive environments.

Applications

The LTM8023EV#PBF is ideal for various power management applications, including:

  • Industrial Power Systems – Reliable voltage regulation for factory automation and control systems.
  • Automotive Electronics – Suitable for infotainment, ADAS, and power distribution applications.
  • Communications Equipment – Efficient power conversion for networking and RF systems.
  • Medical Devices – Compact power supply solutions for portable and embedded healthcare electronics.
  • Battery-Powered Systems – Optimized power efficiency for extending battery life in portable applications.
Product Overview

The LTM8023EV#PBF is a high-performance step-down regulator designed for efficiency and ease of use. With its wide input voltage range, it is well-suited for industrial, automotive, and communication applications. Its high integration minimizes external components, simplifying board design while maintaining performance. The ability to adjust the switching frequency provides flexibility for noise-sensitive environments, and its high efficiency reduces heat dissipation. This μModule® regulator offers a compact solution for space-constrained applications while ensuring stable and reliable power delivery across a wide temperature range.
