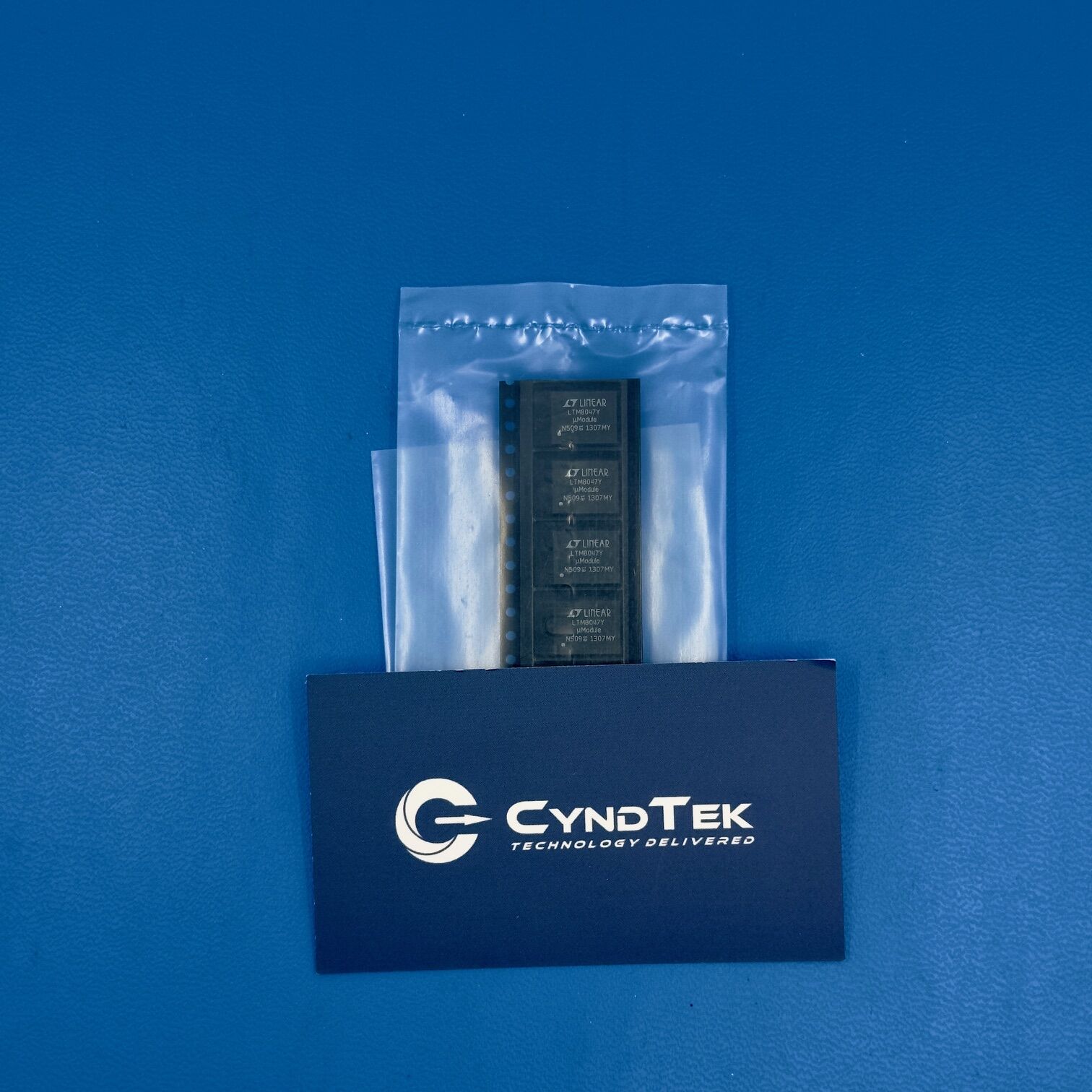

LTM8047MPY#PBF Specifications
Manufacturer: Linear Technology
Part Number: LTM8047MPY#PBF
Product Type: DC-DC Power Module Regulator
Converter Type: Step-Down Switching Regulator Module
Input Voltage Range: 2.7 V to 18 V
Output Voltage Range: 2.5 V to 12 V Adjustable
Output Current: 2 A Continuous
Switching Frequency: 200 kHz to 2 MHz Adjustable
Regulation Type: Current Mode Control
Package Type: LGA-15 µModule Package
Mounting Type: Surface Mount
Operating Temperature Range: −40°C to +125°C
Application Class: Industrial and Embedded Power Systems
Packaging: Factory
Key Features
The LTM8047MPY#PBF is a compact DC-DC step-down regulator module designed to simplify power supply design in embedded electronic systems. It integrates the switching controller, power switches, inductor, and supporting components into a single µModule package. Additionally, the regulator supports adjustable output voltages from 2.5 volts to 12 volts while delivering up to 2 amps of output current. The wide input voltage range allows the module to operate from multiple supply rails commonly used in industrial electronics. Because the integrated architecture reduces external component requirements, designers can simplify layout and shorten development cycles. As a result, the device provides reliable and efficient voltage conversion for modern electronic equipment.
Applications
Industrial embedded power supplies
Communication equipment power rails
Instrumentation electronics
FPGA and processor power systems
Data acquisition hardware
Industrial automation controllers
Telecommunications equipment
Compact distributed power modules
Product Overview
The LTM8047MPY#PBF from Linear Technology provides a highly integrated power regulation solution for compact electronic systems. First, the µModule architecture combines the switching regulator controller, inductor, and power devices into a single surface mount package. Furthermore, the adjustable switching frequency allows engineers to optimize efficiency or minimize noise depending on system requirements. Because the module design reduces the number of external components, engineers can achieve faster design cycles and improved PCB layout simplicity.
Moreover, the device supports a wide input voltage range that accommodates many common industrial and embedded power architectures. In addition, the integrated current mode control improves transient response and output voltage stability. Therefore, the module is well suited for powering processors, communication subsystems, and instrumentation electronics. Overall, the LTM8047MPY#PBF provides efficient voltage conversion, compact integration, and dependable performance in modern power supply designs.
