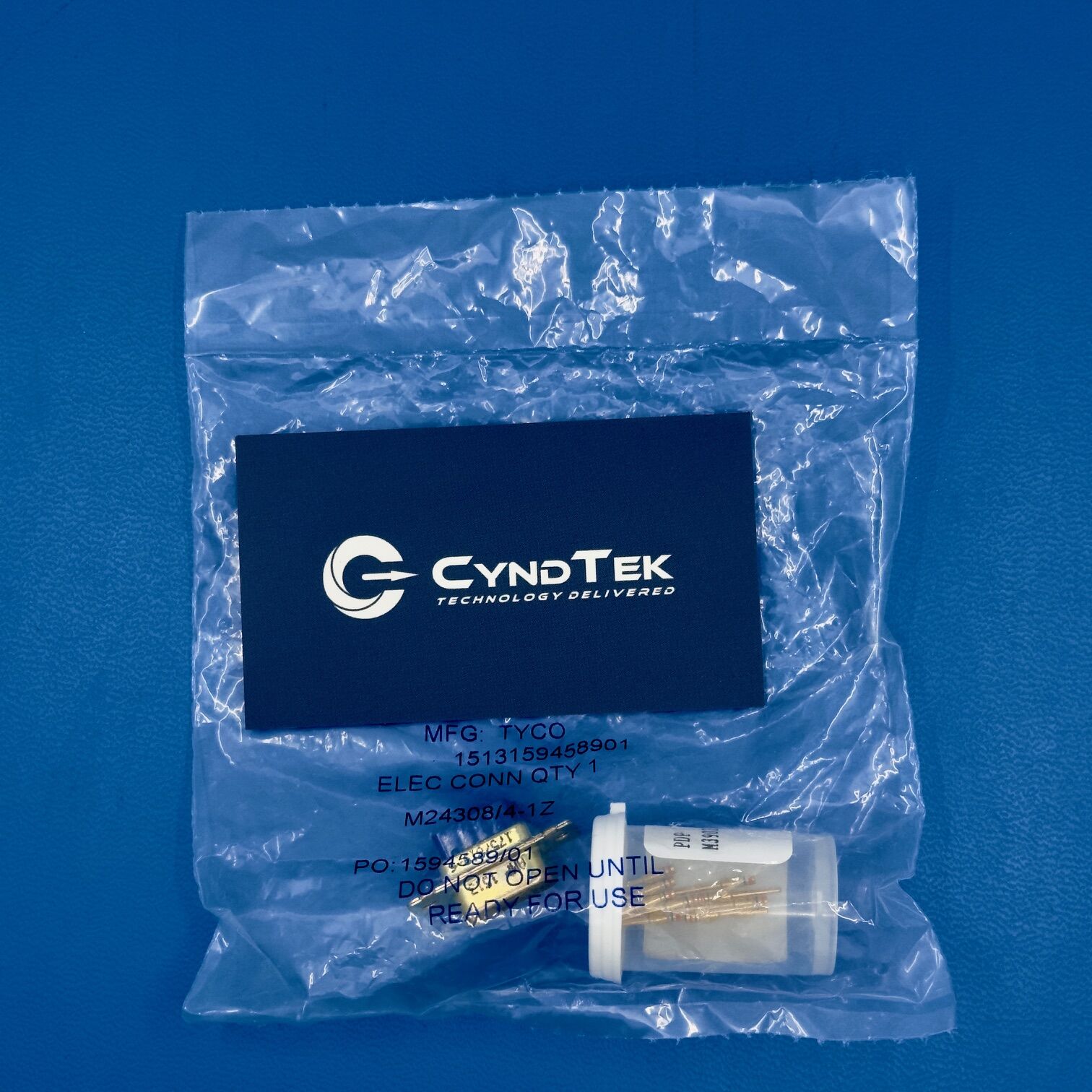

M24308/4-1Z Specifications
Manufacturer: TE Connectivity (Tyco)
Part Number: M24308/4-1Z
NSN: 5935-01-021-7477
Connector Type: D-Sub Plug
Number of Positions: 9
Contact Gender: Pin
Shell Size: Size 1
Shell Material: Steel
Shell Finish: Zinc Plated
Mounting Type: Panel Mount
Termination Type: Crimp
Contact Plating: Gold over Nickel
Compliance: MIL-DTL-24308
Operating Temperature Range: -55°C to +125°C
Packaging: Factory
Key Features
The M24308/4-1Z is a military-qualified 9-position D-Sub plug engineered for rugged interconnect applications. It features gold-plated pin contacts to ensure reliable signal transmission and low contact resistance. Additionally, the zinc-plated steel shell enhances durability and provides mechanical protection. The crimp termination method supports secure and repeatable harness assembly. Because it complies with MIL-DTL-24308 requirements, it integrates directly into defense and aerospace systems. As a result, it supports mission-critical signal connectivity in demanding environments.
Applications
Military communication systems
Avionics control modules
Ground vehicle electronics
Naval control panels
Industrial control assemblies
Test and measurement equipment
Defense signal interface systems
Secure data transmission modules
Product Overview
The M24308/4-1Z from TE Connectivity delivers dependable D-Sub connectivity for high-reliability applications. First, its 9-pin configuration supports compact signal interconnections. Furthermore, gold-plated contacts improve long-term electrical performance and corrosion resistance. Because it uses crimp termination, it enables consistent assembly in production environments.
Moreover, the zinc-plated steel shell enhances mechanical strength under vibration. In addition, MIL-DTL-24308 compliance ensures compatibility with standardized military connector systems. Therefore, it supports both retrofit maintenance and new production builds. Overall, this D-Sub plug combines rugged construction, stable signal integrity, and military-grade performance in a compact form factor.
