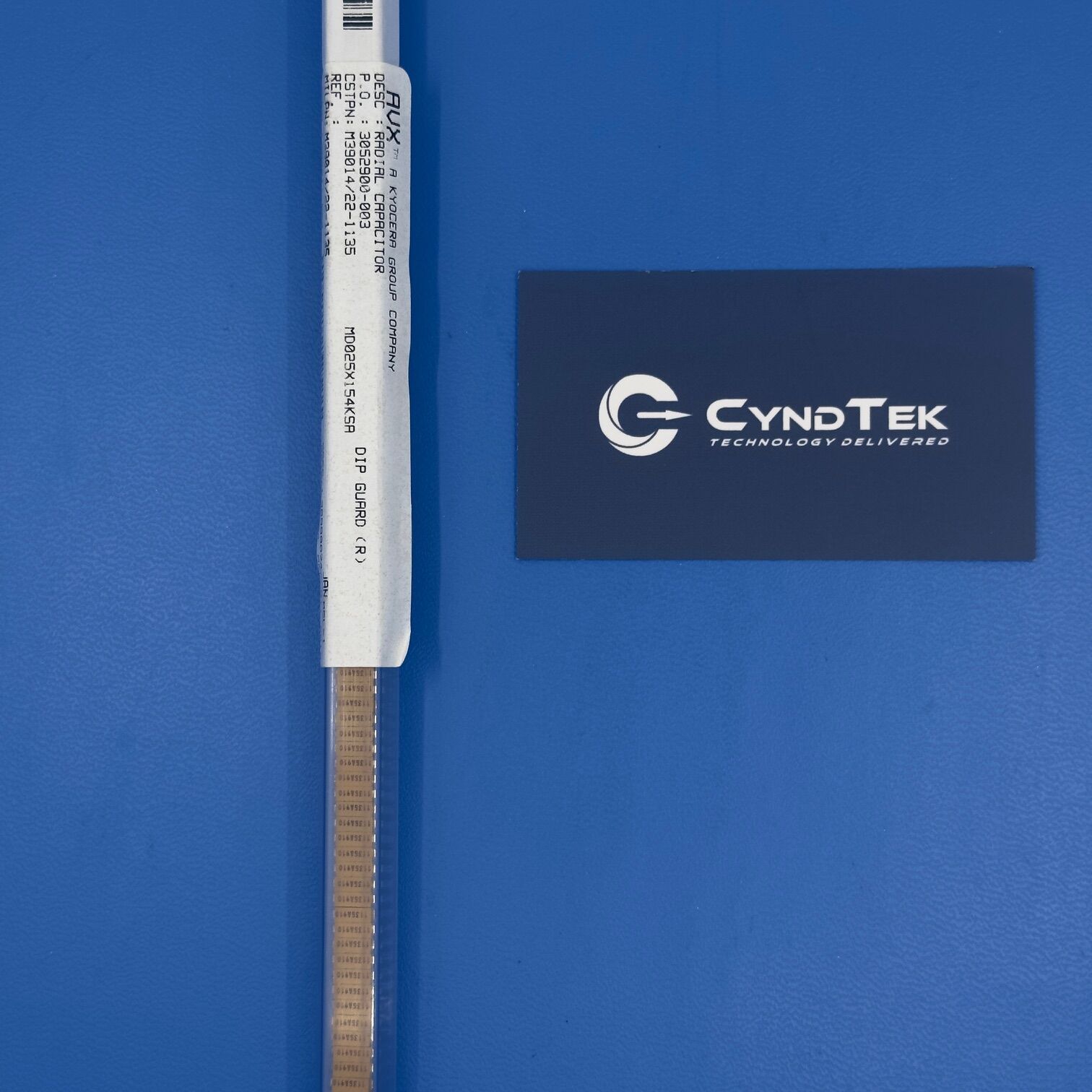

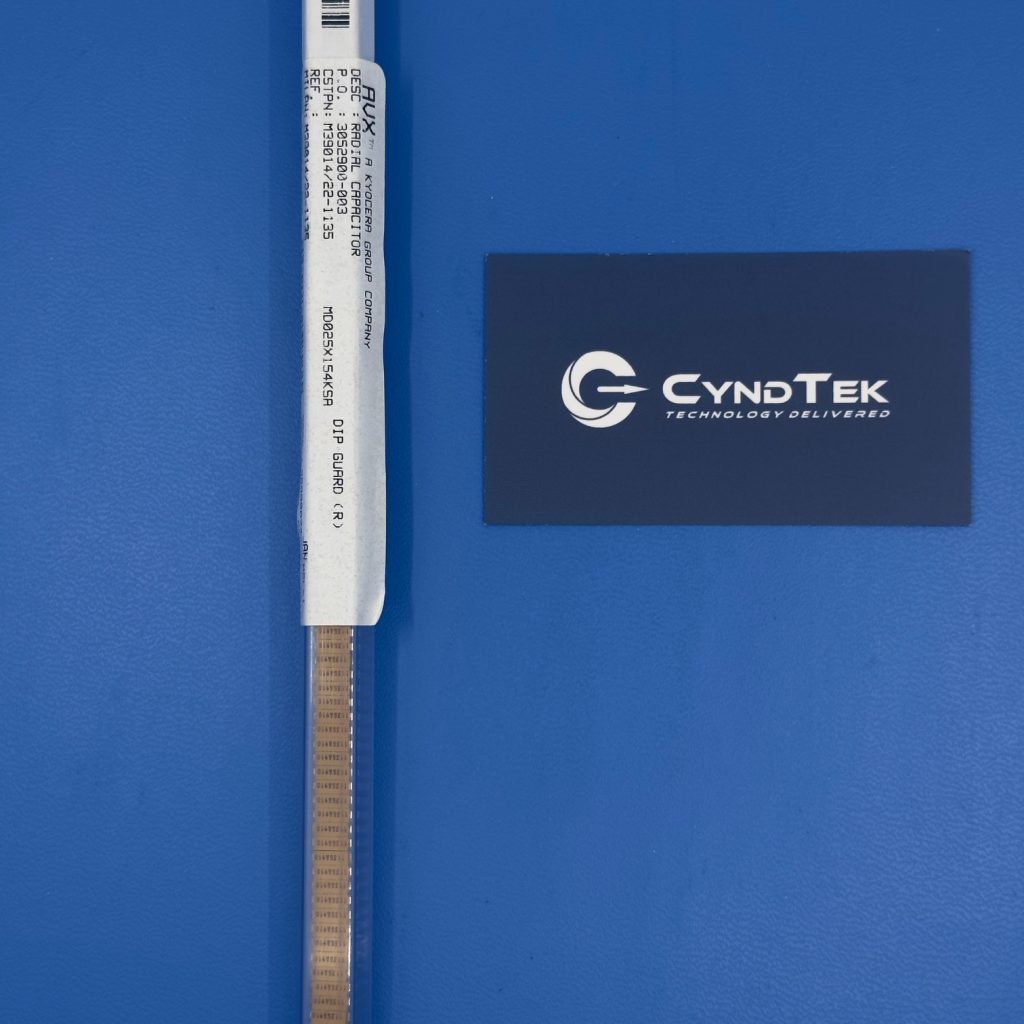

M39014/22-1135 Specifications
Manufacturer: Kyocera AVX
Part Number: M39014/22-1135
NSN: 5910-01-101-3851
Product Type: Ceramic Capacitor
Capacitance: 0.22 µF
Voltage Rating: 100 V
Tolerance: ±10%
Dielectric Type: BX
Package Type: Radial Leaded DIP
Termination Style: Through Hole
Military Specification: MIL-PRF-39014
Operating Temperature Range: -55°C to +125°C
Applications Class: Military and Aerospace Electronics
Packaging: Factory
Key Features
The M39014/22-1135 is a military grade ceramic capacitor designed for high reliability electronic systems. It is manufactured in accordance with MIL-PRF-39014 performance requirements. Additionally, the capacitor provides stable capacitance characteristics across a wide temperature range. Because military grade capacitors undergo strict quality and reliability screening, engineers frequently use them in aerospace and defense electronics. As a result, this capacitor supports dependable operation in demanding environments.
Applications
Military avionics systems
Defense communication equipment
Radar and surveillance electronics
Aerospace instrumentation systems
Navigation and guidance electronics
Industrial control electronics
High reliability power supply filtering
Defense computing hardware
Product Overview
The M39014/22-1135 ceramic capacitor from Kyocera AVX provides reliable capacitance performance for high reliability electronic systems. First, the device is manufactured according to the MIL-PRF-39014 specification which defines performance standards for military ceramic capacitors.
Additionally, the BX dielectric provides stable electrical characteristics across a broad temperature range. Because military and aerospace electronics often operate in extreme environments, components that meet military specifications help ensure long-term reliability.
Moreover, the radial leaded package allows easy installation into through hole circuit boards used in rugged electronic assemblies. Engineers frequently select MIL-PRF-39014 capacitors for avionics electronics, radar systems, and defense instrumentation.
Therefore, the M39014/22-1135 remains a dependable component for aerospace electronics, defense systems, and other applications requiring high reliability ceramic capacitors.
