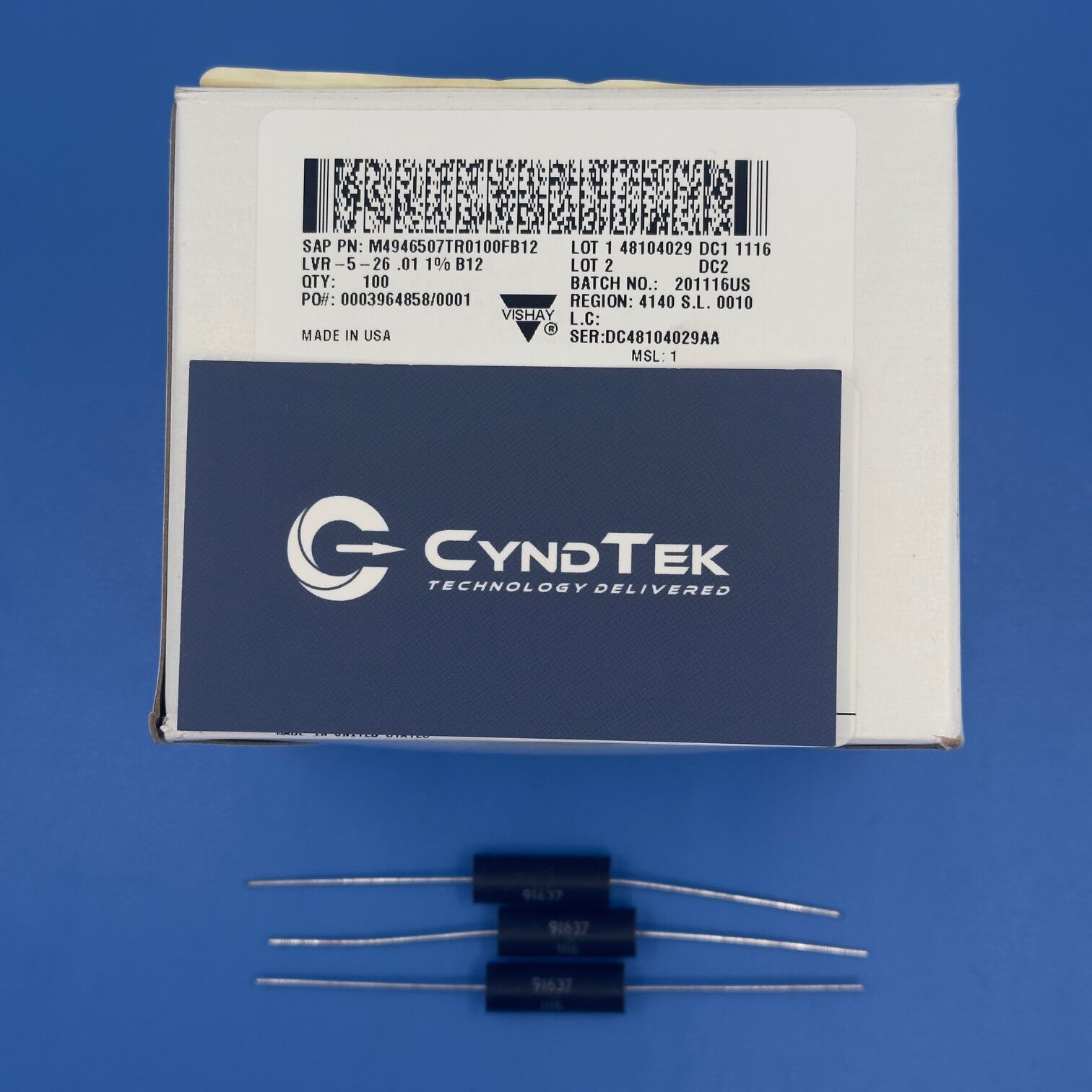

M4946507TR0100FB12 Specifications
Manufacturer: Vishay
Part Number: M4946507TR0100FB12
Product Type: Fixed Resistor
Resistance Value: 0.01 Ω
Tolerance: ±1%
Power Rating: 5 W
Resistor Technology: Metal Element Current Sense
Mounting Type: Through Hole
Lead Style: Axial Lead
Resistance Type: Low Ohmic Precision
Construction: Power Resistor
Operating Temperature Range: -55°C to +155°C
Application Class: Power Monitoring and Current Sensing
Packaging: Factory
Key Features
The M4946507TR0100FB12 is a precision low-ohmic resistor designed for current sensing and high-power applications. It provides a resistance value of 0.01 ohms with ±1% tolerance to support accurate current measurement. Additionally, the 5 watt power rating allows the resistor to operate reliably in higher current circuits. The metal element construction ensures stable resistance performance and improved thermal handling. Because the resistor is engineered for precision current sensing, it delivers dependable electrical behavior in demanding power electronics. As a result, it integrates effectively into monitoring circuits where low resistance and accuracy are required.
Applications
Current sensing circuits
Power supply monitoring systems
Battery management systems
Industrial motor control electronics
Power distribution measurement
High-current DC circuits
Energy monitoring equipment
Embedded power management systems
Product Overview
The M4946507TR0100FB12 from Vishay provides precise low-resistance measurement capability for power electronics. First, the 0.01 ohm resistance value enables accurate current sensing while minimizing voltage drop in the circuit. Furthermore, the ±1% tolerance supports precise current monitoring and system calibration. Because the resistor features a 5 watt power rating, it handles higher current loads without significant performance degradation.
Moreover, the metal element construction improves thermal stability and long-term reliability. In addition, the axial through-hole design allows straightforward integration into traditional printed circuit board assemblies. Therefore, the device is well suited for power monitoring systems and industrial electronics. Overall, this Vishay resistor delivers reliable current measurement performance, stable electrical characteristics, and robust thermal handling.
