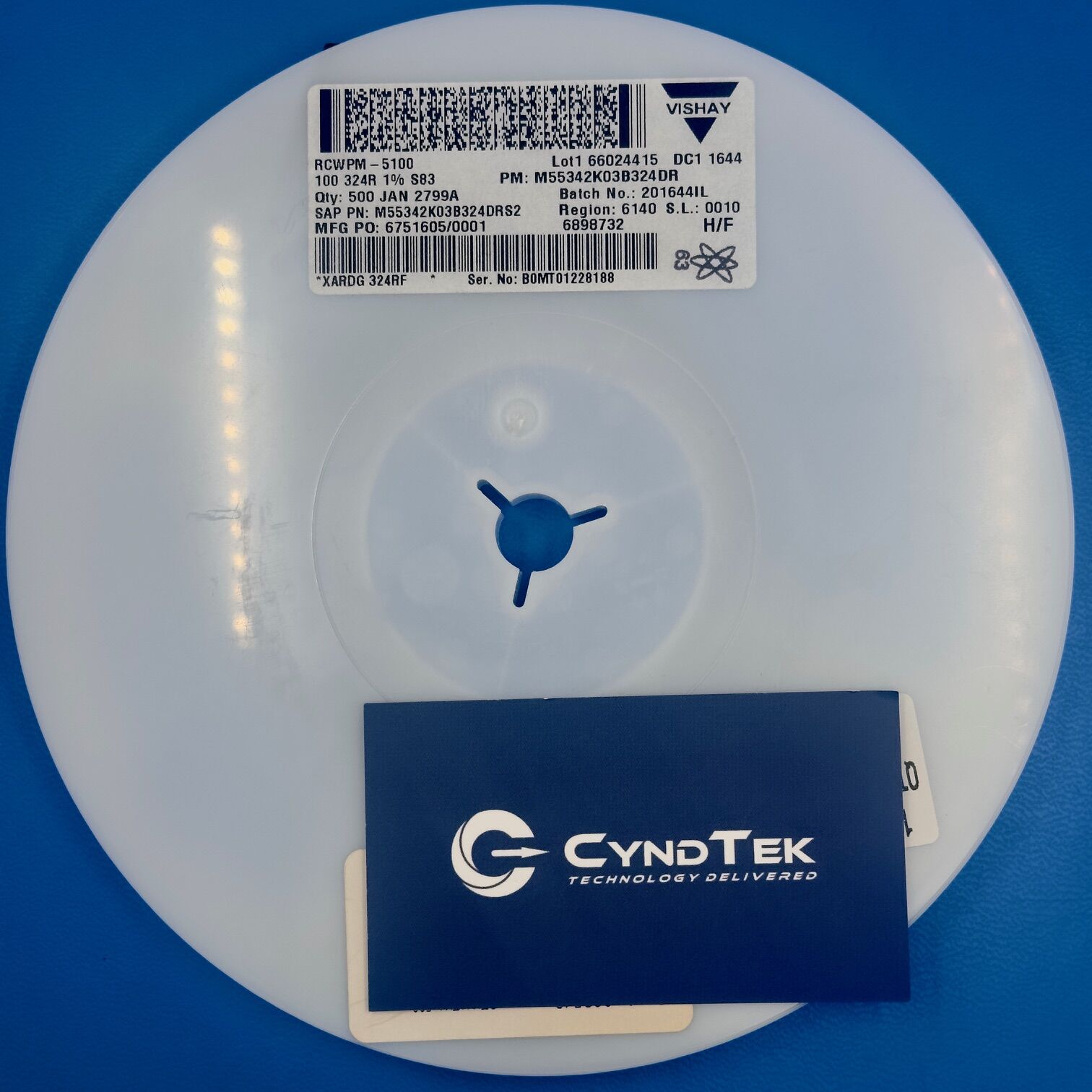

M55342K03B324DR Specifications
Manufacturer: Vishay
Part Number: M55342K03B324DR
NSN: 5905-01-270-5747
Product Type: Thick Film Chip Resistor
Resistance Value: 324 Ohms
Tolerance: ±1%
Power Rating: 0.125 Watt
Case Size: 1005
Mounting Type: Surface Mount
Temperature Coefficient: ±100 ppm/°C
Failure Rate: Established Reliability
Operating Temperature Range: -55°C to +150°C
Compliance: MIL-PRF-55342
Packaging: Factory
Key Features
The M55342K03B324DR is a MIL-PRF-55342 qualified thick film chip resistor designed for high-reliability surface mount applications. It provides 324 ohms resistance with ±1% tolerance for precise circuit performance. Additionally, the 1005 case size supports compact PCB layouts in space-constrained designs. The established reliability rating enhances long-term operational stability. Because it meets military specification requirements, it integrates directly into aerospace and defense platforms. As a result, it delivers dependable resistance control in mission-critical systems.
Applications
Military avionics circuit boards
Ground vehicle electronic modules
Naval radar signal conditioning
Aerospace instrumentation assemblies
Defense communication systems
High-density surface mount PCB designs
Precision biasing networks
Industrial control electronics
Product Overview
The M55342K03B324DR from Vishay delivers stable electrical performance in compact surface mount assemblies. First, its 324 ohm value supports controlled current limiting and signal conditioning functions. Furthermore, the ±1% tolerance ensures predictable circuit behavior under regulated specifications. Because it features thick film construction, it maintains consistent performance across extended operating cycles.
Moreover, MIL-PRF-55342 compliance supports qualification within aerospace and defense procurement programs. In addition, the small 1005 footprint enables efficient high-density board layouts. Therefore, it is suitable for both new production builds and maintenance replacements. Overall, this surface mount resistor provides reliable performance, compact integration, and long-term durability.
