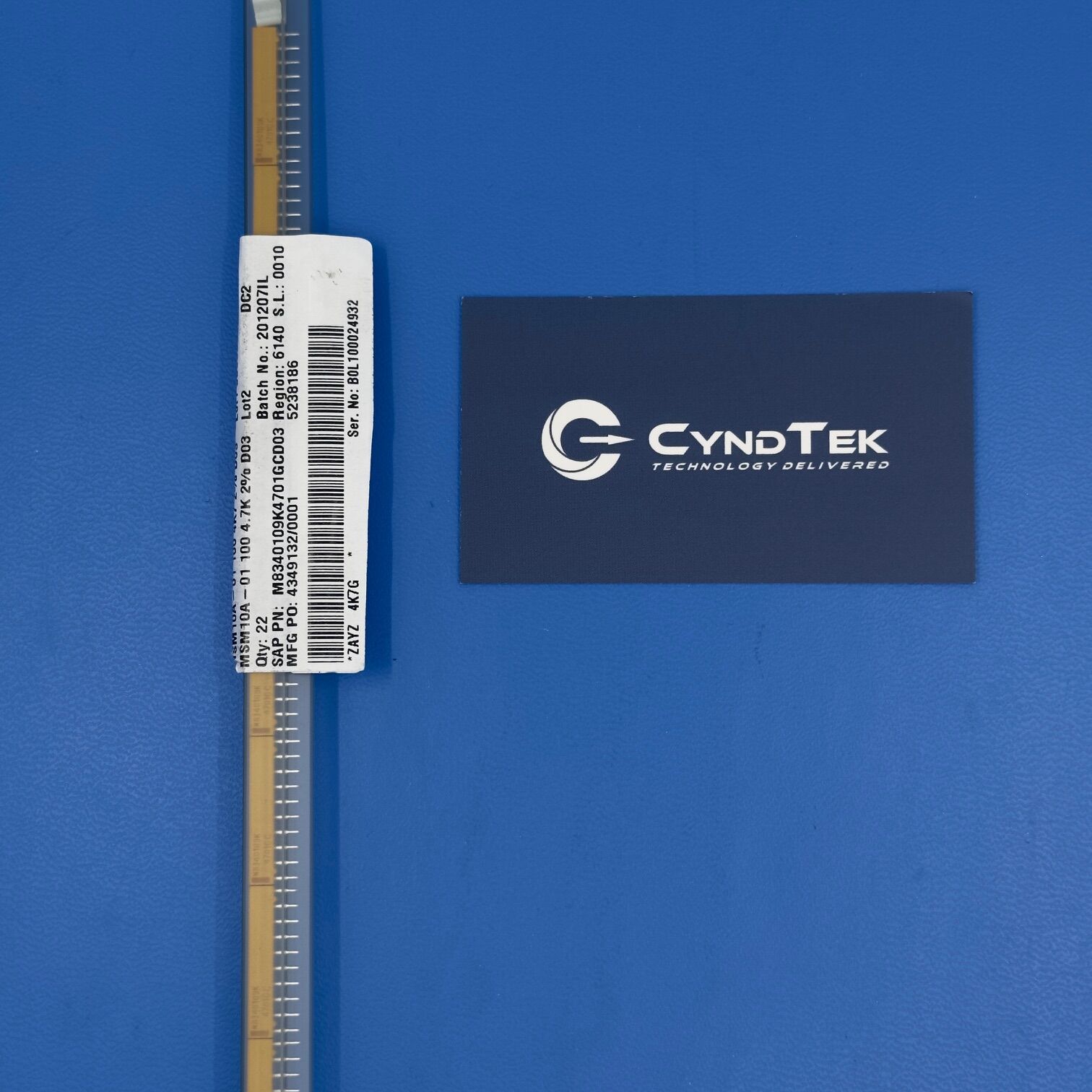

M8340109K4701GC Specifications
Manufacturer: Vishay
Part Number: M8340109K4701GC
NSN: 5905-01-210-8027
Product Type: Resistor Network
Resistance Value: 4.7 kOhm
Number of Resistors: 9
Configuration: Isolated Resistor Array
Tolerance: ±2%
Resistor Technology: Thick Film Network
Package Type: SIP-10
Mounting Type: Through Hole
Military Specification: MIL-PRF-83401
Operating Temperature Range: -55°C to +125°C
Applications Class: Military and Aerospace Electronics
Packaging: Factory
Key Features
The M8340109K4701GC is a military grade resistor network designed for reliable signal conditioning and circuit integration. It contains nine individual 4.7 kiloohm resistors packaged in a single SIP configuration. Additionally, the component is manufactured to MIL-PRF-83401 specifications which ensures high reliability performance in aerospace and defense electronics. Because resistor networks help simplify circuit design by integrating multiple resistors into one package, engineers frequently use them in signal distribution and control circuits. As a result, the M8340109K4701GC supports dependable operation in high reliability electronic systems.
Applications
Military avionics electronics
Radar and surveillance systems
Aerospace instrumentation hardware
Defense communication electronics
Signal conditioning circuits
Industrial control electronics
Automated test equipment
High reliability electronic assemblies
Product Overview
The M8340109K4701GC resistor network from Vishay provides a compact solution for integrating multiple resistors within a single component. First, the device integrates nine resistors which reduces board space requirements and simplifies circuit layout.
Additionally, the thick film resistor network construction provides stable resistance characteristics across temperature variations. Because military and aerospace electronics require components that meet strict reliability standards, MIL-PRF-83401 resistor networks remain widely used in these environments.
Moreover, the SIP-10 package allows easy through hole installation into circuit boards used in rugged electronic assemblies. Engineers frequently use resistor networks such as the M83401 series in avionics electronics, defense control systems, and instrumentation hardware.
Therefore, the M8340109K4701GC remains a dependable resistor network solution for aerospace electronics, defense systems, and other high reliability circuit designs.
