MAX4410EUD+T

MAX4410EUD+T

$1.00

IC AMP CLSS AB STER 80MW 14TSSOP T/R
  • Manufacturer: Maxim
  • Part Number: MAX4410EUD+T

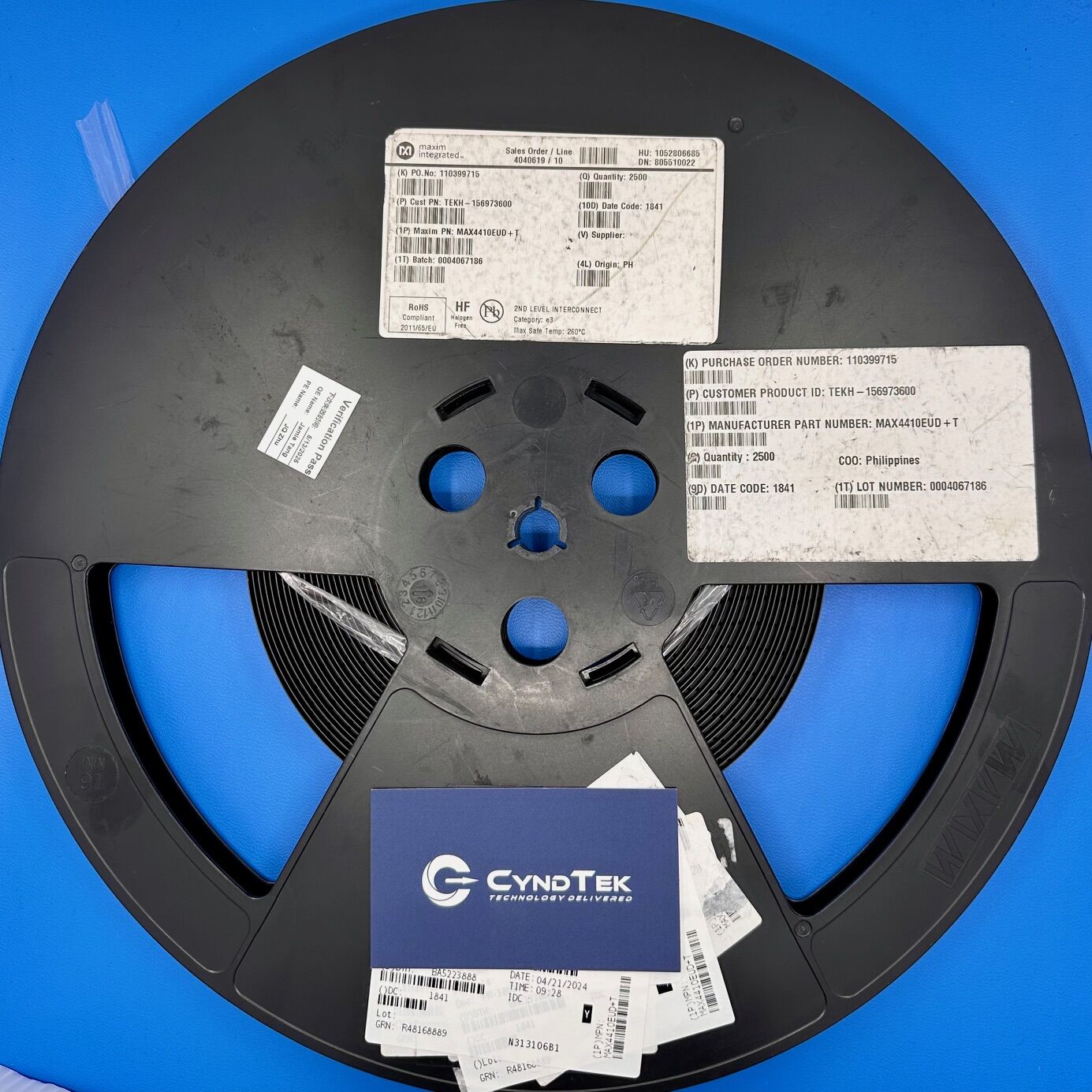

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 1841

Availability: 1245 in stock

SKU TSX029B Category Brand:

MAX4410EUD+T Specifications

Manufacturer: Analog Devices Inc. / Maxim Integrated
Part Number: MAX4410EUD+T
Product Type: Stereo Headphone Amplifier
Output Power: 80 mW per channel into 16 Ω load
Total Harmonic Distortion Plus Noise (THD+N): 0.003%
Power Supply Rejection Ratio (PSRR): 90 dB at 1 kHz
Operating Voltage Range: 1.8 V to 3.6 V
Quiescent Current: 7 mA
Shutdown Current: 0.1 µA
ESD Protection: ±8 kV on amplifier outputs
Package / Case: 14-Pin TSSOP
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The MAX4410EUD+T is a high-performance stereo headphone amplifier designed for portable applications where space and power efficiency are critical. It features DirectDrive® technology, which eliminates bulky DC-blocking capacitors by generating ground-referenced outputs from a single supply. This reduces component count and improves low-frequency response. Additionally, the amplifier delivers 80 mW per channel into a 16 Ω load with ultra-low distortion of just 0.003% THD+N, ensuring clear audio playback.

Its high PSRR of 90 dB at 1 kHz helps suppress power supply noise, making it suitable for operation in systems with noisy digital supplies. The amplifier also includes click-and-pop suppression circuitry, which minimizes audio disturbances during power transitions. Furthermore, independent left and right shutdown controls provide flexible power management, helping to extend battery life. With built-in short-circuit protection, thermal shutdown, and ±8 kV ESD protection, the device offers reliable performance in various environments.

Applications

Notebook computers
Cellular phones
Personal Digital Assistants (PDAs)
MP3 players
Web pads
Portable audio equipment

Product Overview

The MAX4410EUD+T provides high-quality audio in a compact, power-efficient design. Its DirectDrive® architecture removes the need for large capacitors, allowing for slimmer devices without sacrificing sound quality. Additionally, its low quiescent current of 7 mA reduces power consumption, making it an excellent choice for battery-powered devices.

The amplifier’s high PSRR enhances signal clarity by reducing noise interference from power supplies. Meanwhile, its fast startup time and click-and-pop suppression prevent unwanted audio artifacts. Because of its integrated protection features, the device operates reliably in demanding environments. Packaged in a 14-pin TSSOP, the MAX4410EUD+T supports surface-mount assembly, simplifying integration into compact designs.
