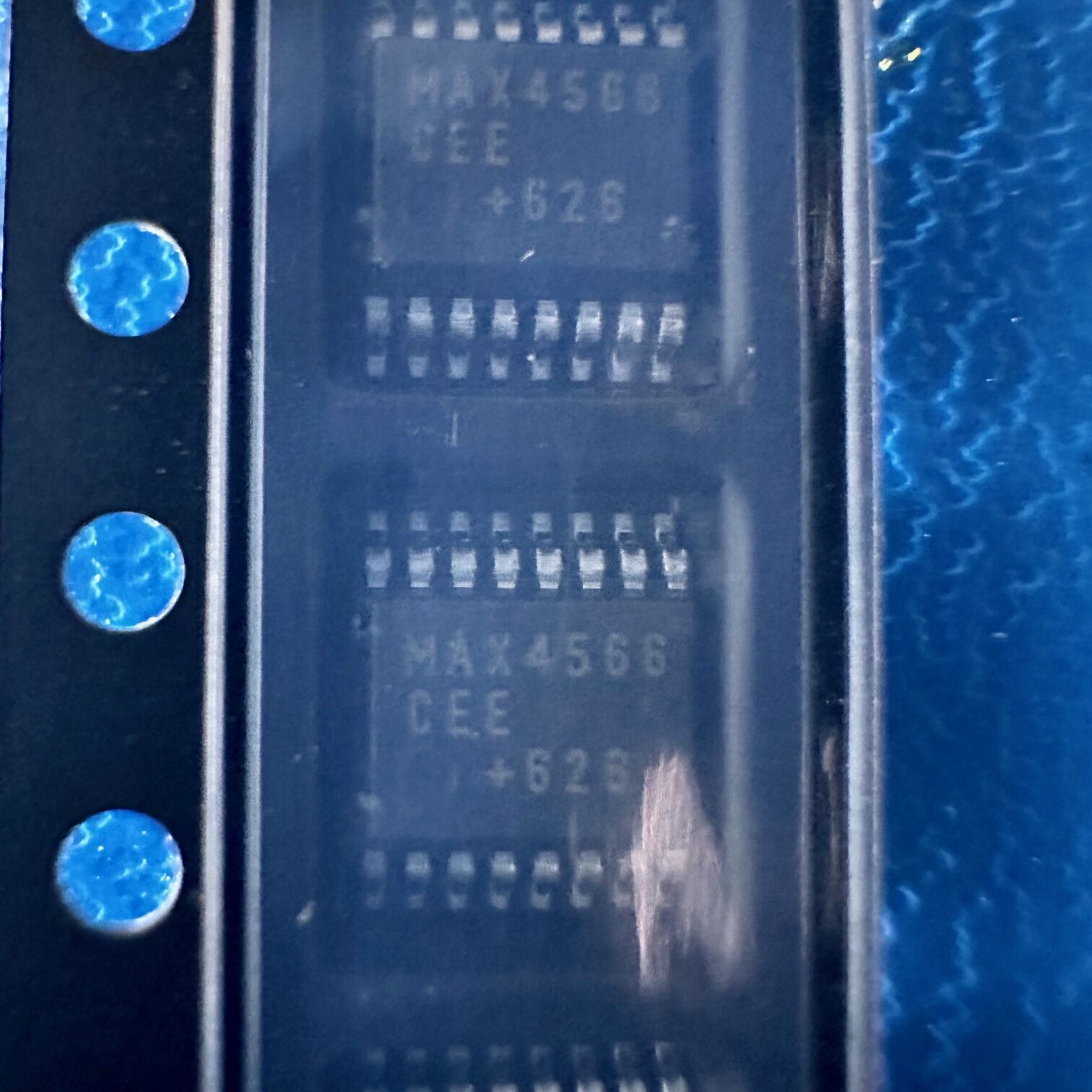

MAX4566CEE+T

MAX4566CEE+T

$4.00

Video Switch IC 1 Channel 16-QSOP Surface Mount 0°C ~ 70°C (TA)

  • Manufacturer: Maxim
  • Description: IC VIDEO SWITCH DUAL SPST 16QSOP

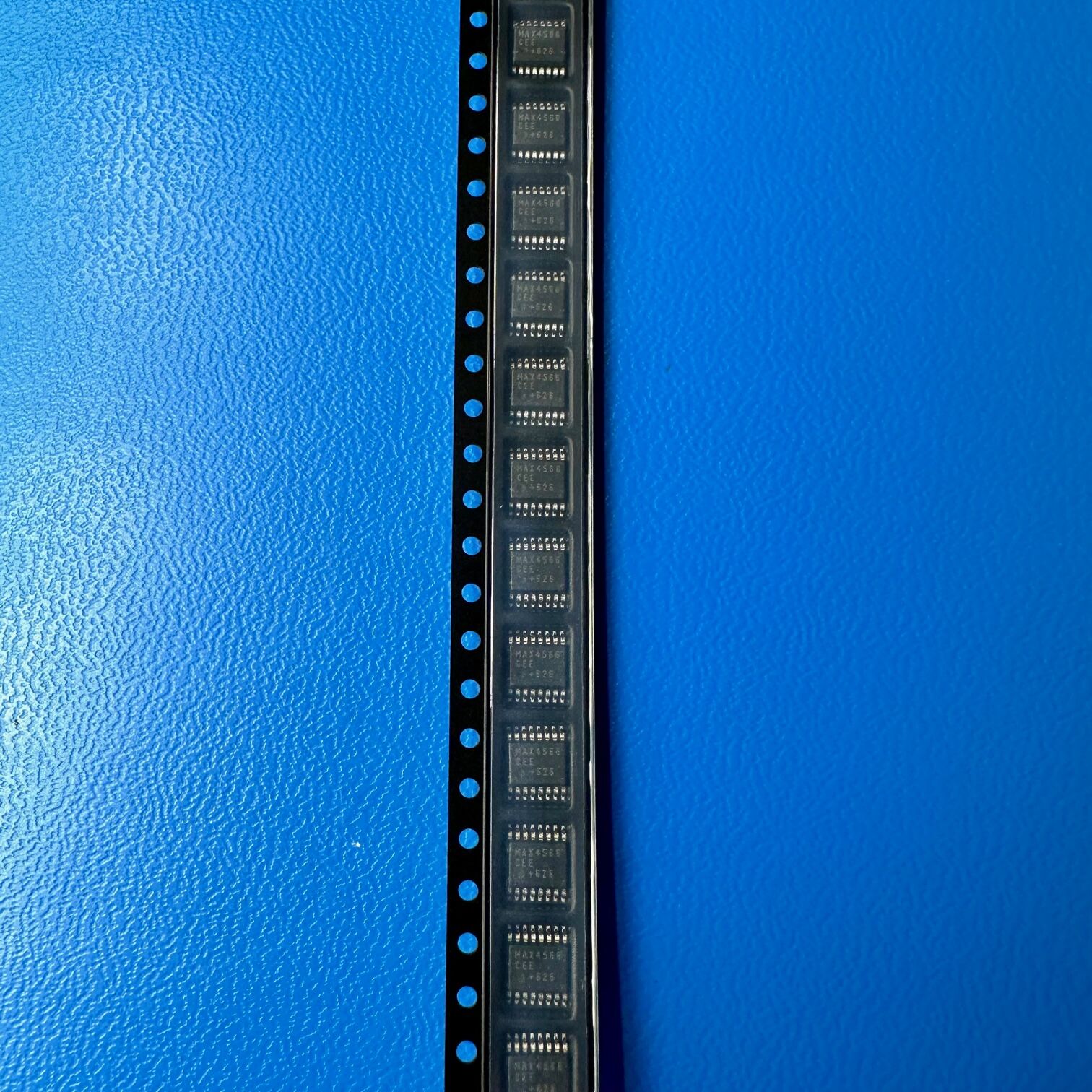

  • Packaging: Cut Tape
  • Quantity: Each
  • Volume Discount Available: Yes
  • Datecode:  16+

Availability: 3664 in stock

SKU TSX045B Category Brand:
MAX4566CEE+T Specifications
  • Product Type: RF/Video Switch
  • Configuration: 2 x SPST (Single-Pole, Single-Throw)
  • On Resistance (Max): 60 Ω
  • Bandwidth: 350 MHz
  • On Time (Max): 150 ns
  • Off Time (Max): 100 ns
  • Operating Supply Voltage: 2.7V to 12V
  • Dual Supply Voltage: ±2.7V to ±6V
  • Supply Current (Max): 10 µA
  • Switch Continuous Current: 25 mA
  • Switch Voltage (Max): 5.5V
  • Off Isolation (Typical): -82 dB
  • Power Dissipation: 667 mW
  • Operating Temperature Range: 0°C to +70°C
  • Mounting Style: SMD/SMT

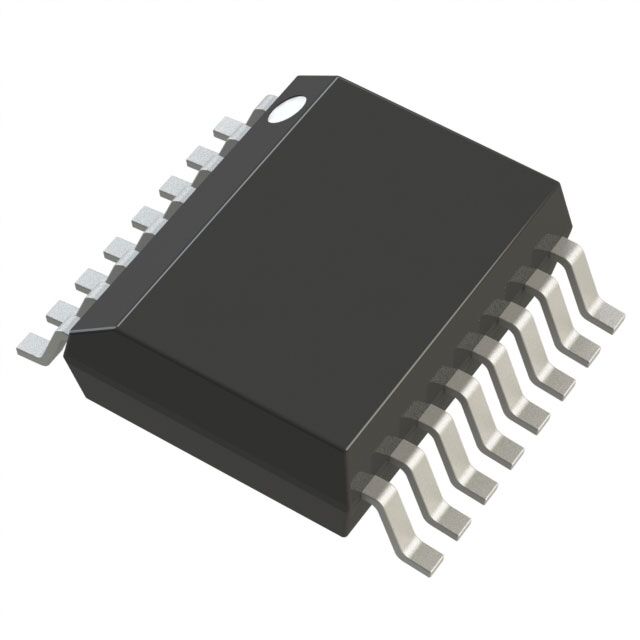

  • Package / Case: QSOP-16
  • Dimensions:
    • Height: 1.55 mm (Max)
    • Length: 4.98 mm (Max)
    • Width: 3.99 mm (Max)
  • Packaging: Tube
  • Manufacturer: Analog Devices / Maxim Integrated
  • Series: MAX4566
  • Subcategory: Switch ICs
Product Overview

The MAX4566CEE+T is a low-voltage RF/video switch designed for seamless switching of RF and video signals across a DC to 350 MHz spectrum in 50Ω and 75Ω systems. It features two dual SPST switches, with one normally open and one normally closed.

Key Features:
  • Superior Signal Isolation & Crosstalk: Provides exceptional off isolation (-82 dB) and low crosstalk (-83 dB at 10 MHz) for high-fidelity signal transmission.
  • Flat & Matched On-Resistance: Maintains a consistent on-resistance (60Ω max) with a flat variation of only 2Ω max, ensuring minimal signal distortion.
  • Low Leakage Current: Less than 5 nA at 25°C and 50 nA at 85°C, making it ideal for sensitive signal applications.
  • Flexible Power Supply: Operates with a single supply (2.7V to 12V) or dual supply (±2.7V to ±6V) for versatile integration.
  • Rail-to-Rail Analog Signal Handling: Supports bidirectional signal flow, ensuring compatibility with various system architectures.
  • TTL & CMOS Logic Compatibility: Digital inputs with 0.8V/2.4V logic thresholds allow seamless interfacing with standard logic families.
Applications:
  • RF Switching
  • Video Signal Routing
  • High-Speed Data Acquisition
  • Test Equipment & Automated Test Equipment (ATE)
  • Networking Systems
