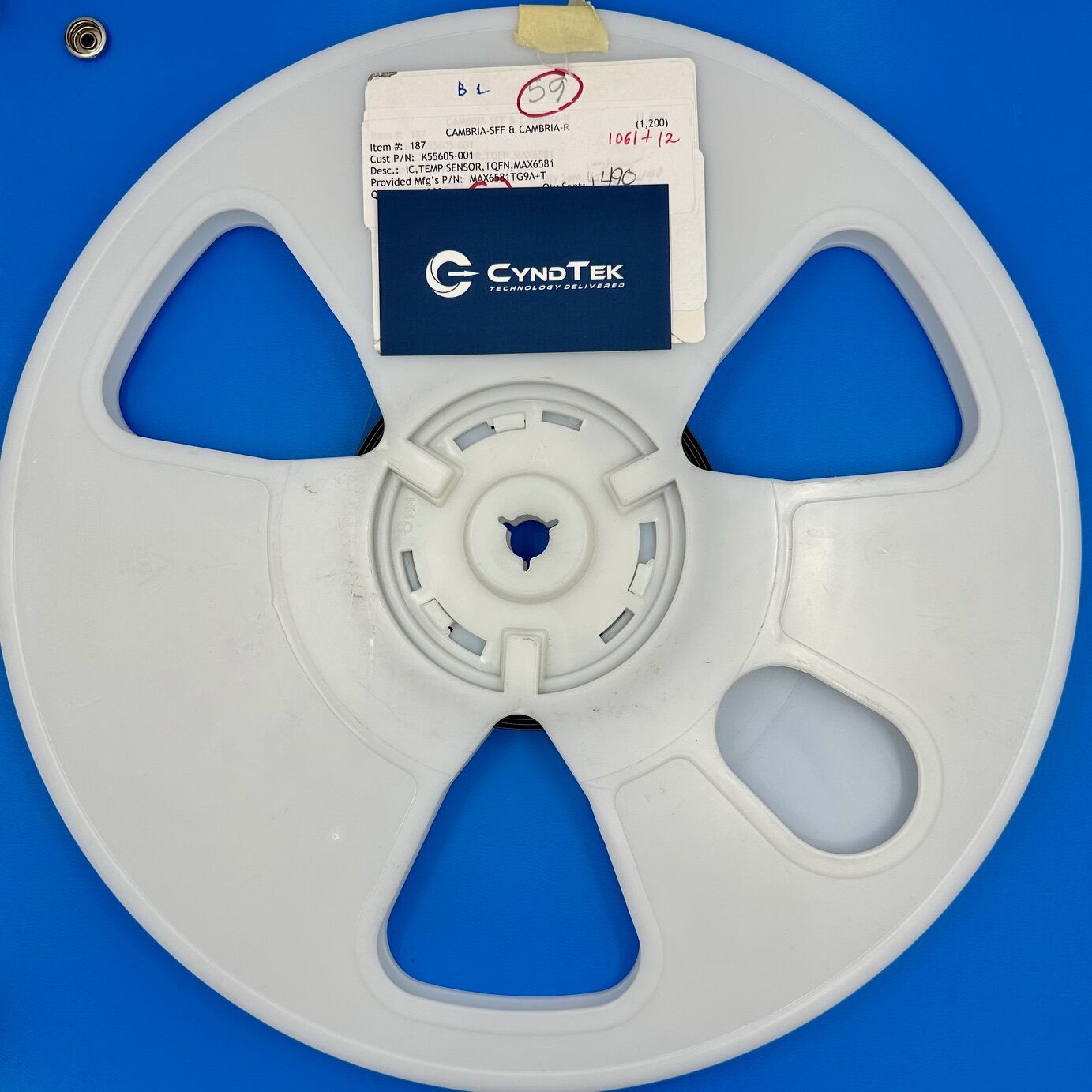

MAX6581TG9A+T

MAX6581TG9A+T Specifications

Manufacturer: Analog Devices (Maxim Integrated)
Part Type: Multichannel Temperature Sensor
Sensor Inputs: 7 Remote Diodes + 1 Local Sensor
Interface Type: SMBus/I2C Compatible
Supply Voltage Range: 3 V to 3.6 V
Resolution: 0.125°C
Conversion Time: 160 ms (typical)
Operating Temperature Range: -40°C to +125°C
Package Type: 16-Pin TQFN
Mounting Type: Surface Mount
Alert Function: Programmable with Interrupt Output
ADC Resolution: 11-Bit
Diode Compatibility: Intel and AMD CPU Thermal Diodes
Power-On Reset: Integrated
Low Power Consumption: Yes
RoHS Compliant: Yes

Key Features

The MAX6581TG9A+T is a high-accuracy, multi-channel temperature sensor designed for advanced thermal monitoring. It can simultaneously measure temperatures from seven external diode-connected transistors and one internal sensor. The device communicates over SMBus or I2C and provides 11-bit resolution, enabling precise temperature control. Additionally, it offers a programmable alert function and supports thermal diode standards from major CPU manufacturers. With low power consumption and fast conversion times, it is ideal for thermal management in space-constrained, high-performance systems.

Applications

Enterprise servers
GPU and CPU thermal monitoring
Network switches and routers
High-end gaming PCs
Telecom base stations
Data center infrastructure
RAID storage enclosures
Fan speed control modules
Thermal protection circuits
Advanced industrial computers

Product Overview

Designed for systems where accurate thermal monitoring is essential, the MAX6581TG9A+T enables real-time temperature tracking across multiple zones. Its 7 remote and 1 local sensor channels provide flexible integration in densely packed PCBs. The 0.125°C resolution allows for fine-grain thermal feedback, supporting adaptive cooling strategies. Its compatibility with Intel and AMD thermal diodes makes it ideal for CPU and GPU temperature sensing. With fast conversion speed and SMBus/I2C compatibility, it integrates seamlessly into embedded control systems, ensuring both performance and safety.
