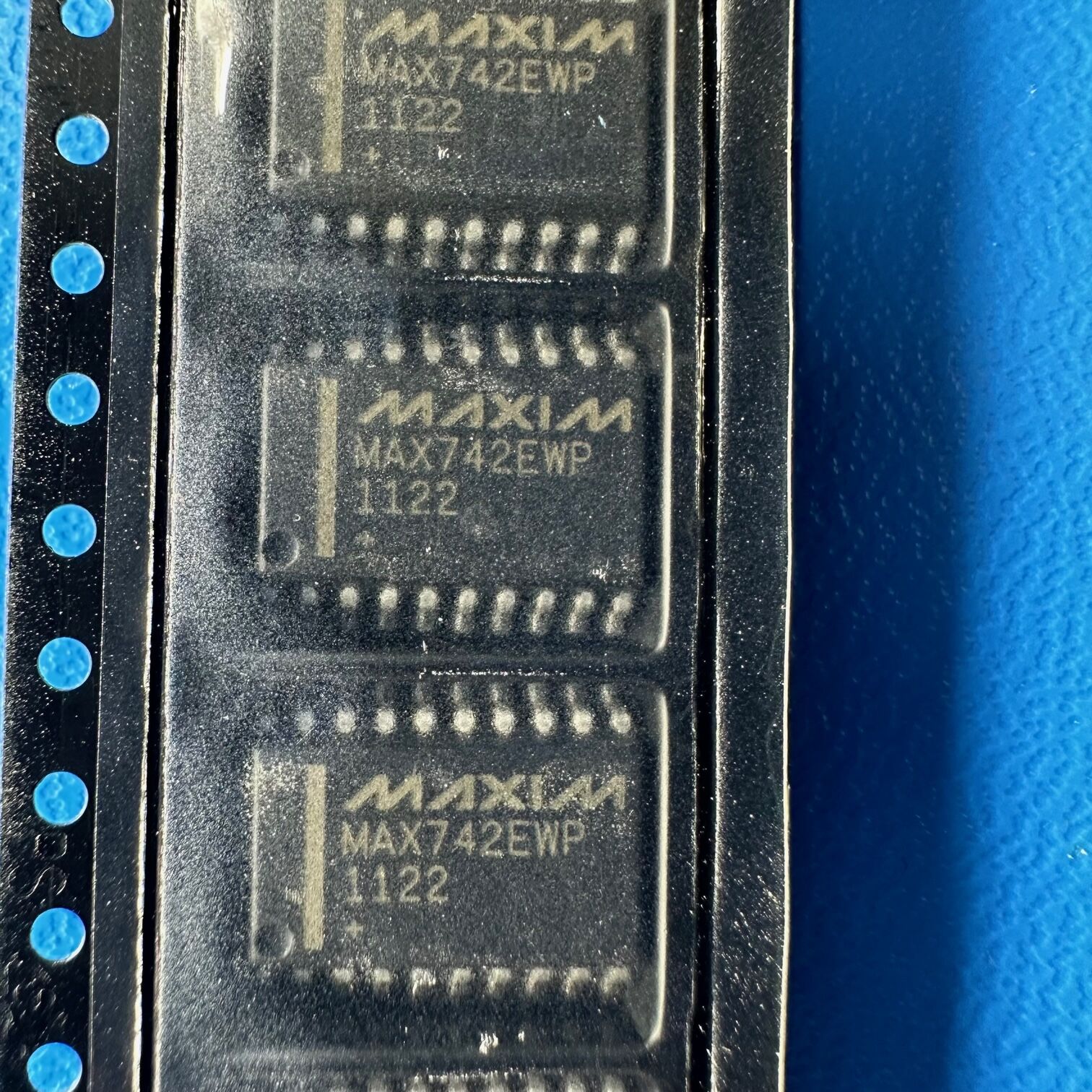

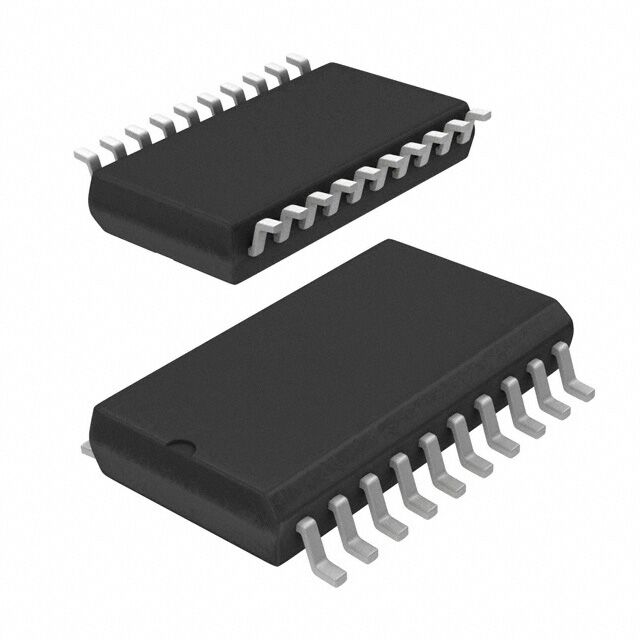

MAX742EWP+

MAX742EWP+ Specifications:

• Part Numbers: MAX742EWP, MAX742EWP+
• Temperature Range: to +125°C
• Pin-Package Options: 20 Plastic DIP, 20 Wide SO, Dice*, 20 CERDIP
• Input Voltage Range: to +12V
• Output Voltage Range: -14V to +25V
• Operating Temperature Ranges: to +125°C
• Storage Temperature: to +150°C
• Lead Temperature (soldering, 10sec): +300°C

Additional information:

The MAX742 DC-DC converter is a high-performance controller designed for dual-output power supplies up to 60W. It employs a simple two-terminal inductor configuration, eliminating the need for transformers, ensuring independent regulation of both outputs within ±4% across various conditions, including line voltage fluctuations, temperature changes, and load currents. With a remarkable efficiency of up to 92% across a broad output loading range, the MAX742 utilizes two independent PWM current-mode feedback loops to deliver precise regulation and noise-free operation.

This versatile converter operates efficiently with small, lightweight external components, offering easy ripple and noise filtering. It provides a regulated output for input voltages ranging from to 10V and can handle higher inputs with additional components. External power MOSFETs, directly driven by the MAX742, are safeguarded by cycle-by-cycle overcurrent sensing. The device also incorporates features like undervoltage lockout, thermal shutdown, and programmable soft-start for enhanced functionality.

Ideal for DC-DC converter module replacement, distributed power systems, and computer peripherals, the MAX742 ensures efficient, reliable, and precise power regulation.
