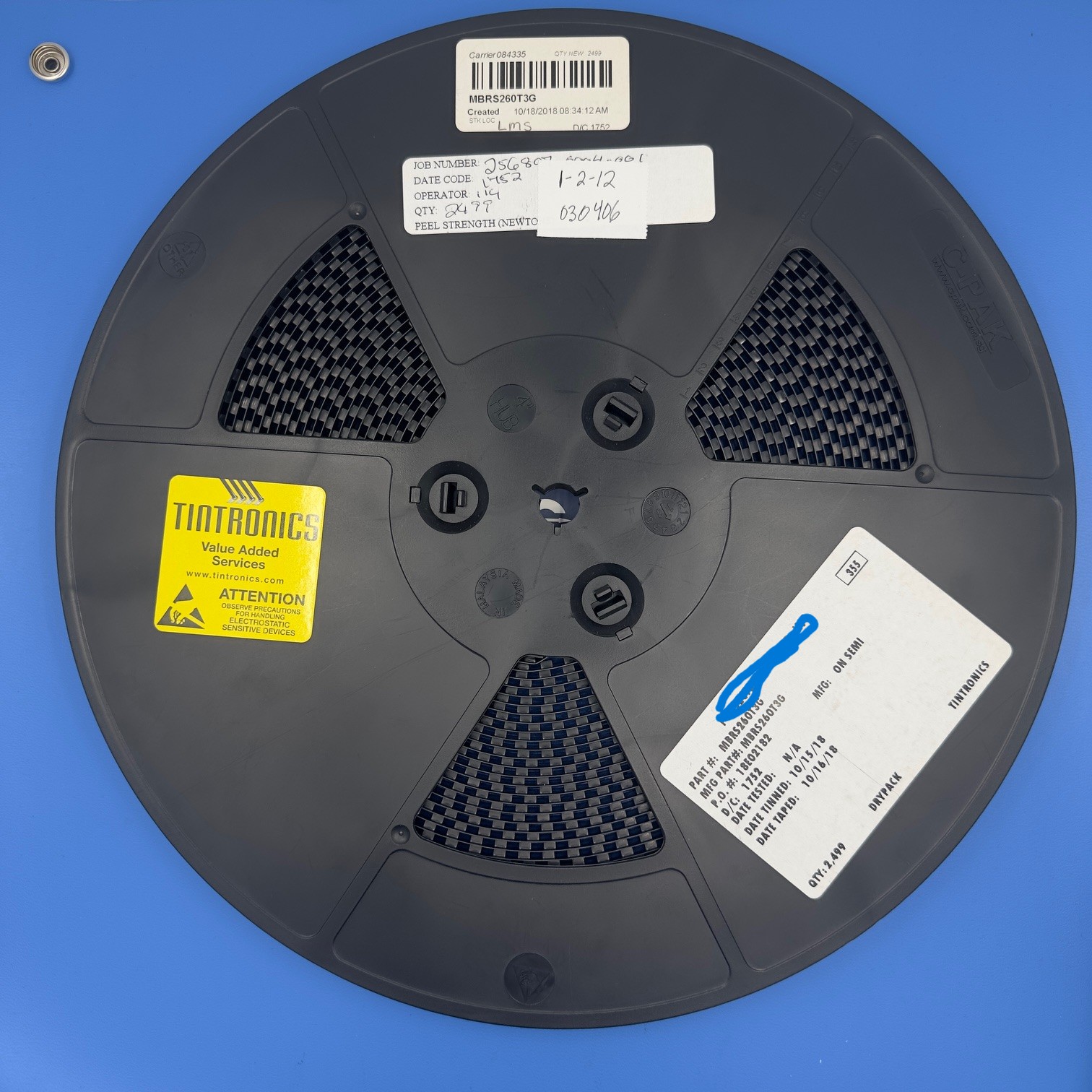

MBRS260T3G Specifications
Manufacturer: ON Semiconductor
Part Number: MBRS260T3G
Product Type: Schottky Rectifier Diode
Diode Type: Schottky Barrier Diode
Reverse Voltage Rating: 60 V
Forward Current: 2 A
Forward Voltage Drop: Low Forward Voltage Design
Package Type: SMB
Mounting Type: Surface Mount
Recovery Time: Fast Switching
Operating Temperature Range: -65°C to +150°C
Applications Class: Power Rectification
Packaging: Factory
Key Features
The MBRS260T3G is a Schottky barrier rectifier diode designed for efficient power rectification and switching applications. It supports a reverse voltage rating of 60 volts and forward current up to 2 amps. Additionally, the Schottky diode structure provides low forward voltage drop which improves efficiency in power circuits. Because Schottky diodes offer fast switching characteristics and reduced power loss, engineers frequently use them in power supply and rectification designs. As a result, the MBRS260T3G supports reliable performance in modern electronic systems.
Applications
Switching power supply rectification
DC to DC converter circuits
Industrial power electronics
Power distribution modules
Embedded power management systems
Communication equipment power circuits
Battery charging systems
General purpose power rectification
Product Overview
The MBRS260T3G from ON Semiconductor provides efficient rectification performance for electronic power circuits. First, the Schottky barrier structure allows the diode to operate with low forward voltage drop which reduces energy loss.
Additionally, the device offers fast switching characteristics which makes it suitable for high frequency switching power supplies. Because efficient rectification components help improve overall power supply efficiency, Schottky diodes remain widely used in modern power electronics.
Moreover, the SMB surface mount package supports compact circuit board layouts and automated assembly processes. Engineers frequently use the MBRS260 series in power supply modules, DC to DC converters, and industrial electronic equipment.
Therefore, the MBRS260T3G remains a dependable rectifier solution for power supply circuits and high efficiency electronic systems.
