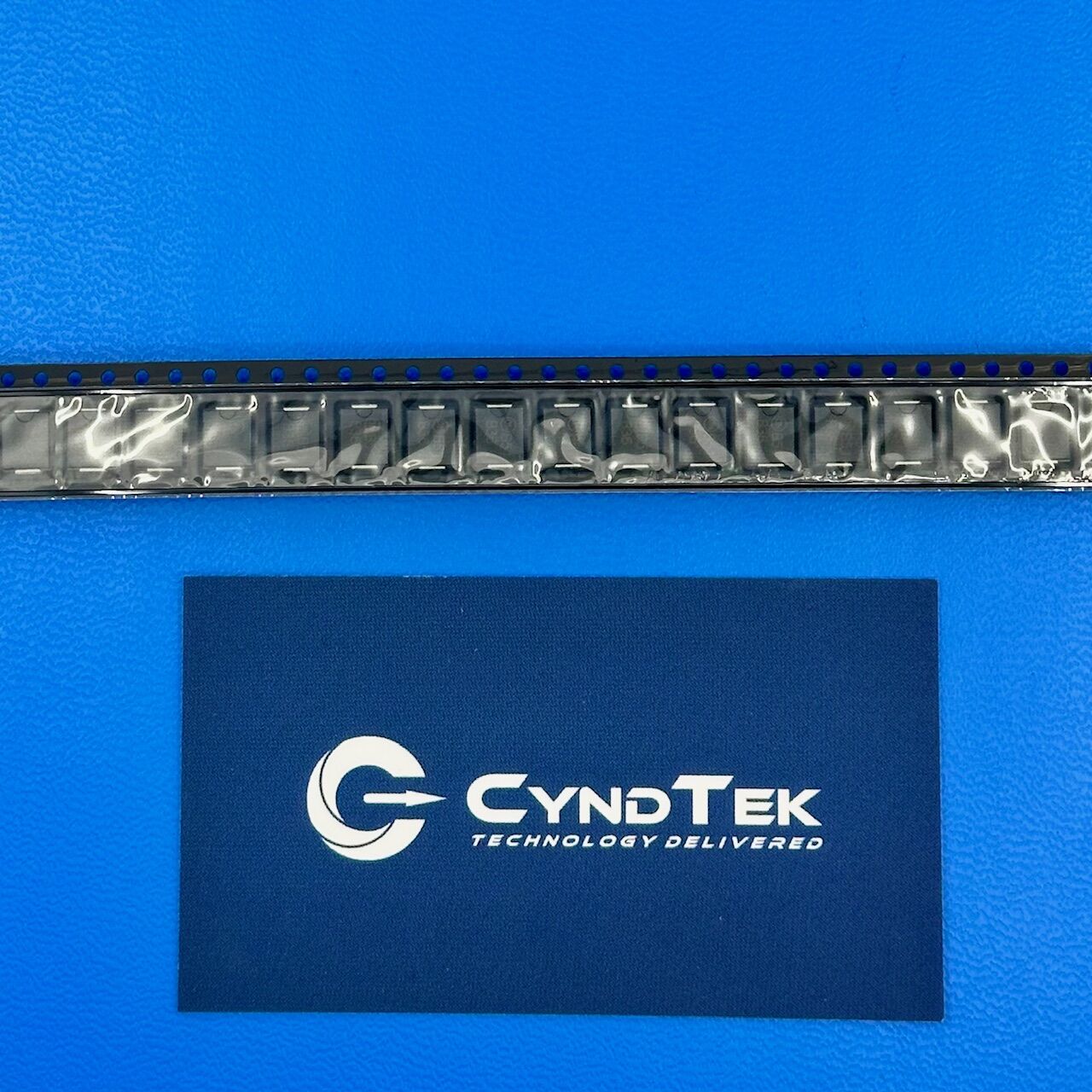

MBRS360T3G

MBRS360T3G

$0.20

Diode Rect Schottky; 60v
  • Manufacturer: onsemi
  • Part Number: MBRS360T3G
  • Packaging: Cut Tape
  • Quantity: Each
  • Datecode: 1251

Availability: 20 in stock

SKU TSX049D Category Brand:

MBRS360T3G Specifications

Manufacturer: onsemi
Part Number: MBRS360T3G
Product Type: Schottky Power Rectifier
Maximum Repetitive Reverse Voltage (V_RRM): 60 V
Average Rectified Forward Current (I_O): 3 A
Peak Forward Surge Current (I_FSM): 125 A
Forward Voltage (V_F) @ 3 A: 0.74 V
Reverse Current (I_R) @ 60 V: 150 µA
Operating Junction Temperature Range (T_J): -65°C to +175°C
Package / Case: SMC (DO-214AB)
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The MBRS360T3G is a Schottky power rectifier designed for high-efficiency applications. It employs the Schottky Barrier principle, utilizing a large-area metal-to-silicon power diode with epitaxial construction and oxide passivation. This design ensures low forward voltage drop and minimal reverse leakage current. The device’s compact SMC package with J-bend leads facilitates automated handling and surface mount assembly. Additionally, it exhibits excellent capability to withstand reverse avalanche energy transients and includes a guard-ring for stress protection. The MBRS360T3G operates effectively over a wide temperature range, making it suitable for various demanding environments.

Applications

Low-voltage, high-frequency rectification
Free-wheeling diodes
Polarity protection diodes
Switching power supplies
DC-DC converters

Product Overview

The MBRS360T3G Schottky power rectifier from onsemi offers a blend of efficiency and reliability for modern electronic systems. Its low forward voltage drop reduces power loss, enhancing overall system efficiency. The device’s ability to handle high surge currents makes it ideal for applications requiring robust performance under transient conditions. Its surface-mount design and compact form factor allow for high-density PCB layouts, catering to space-constrained designs. Compliance with RoHS standards ensures environmental responsibility, aligning with global regulatory requirements.
