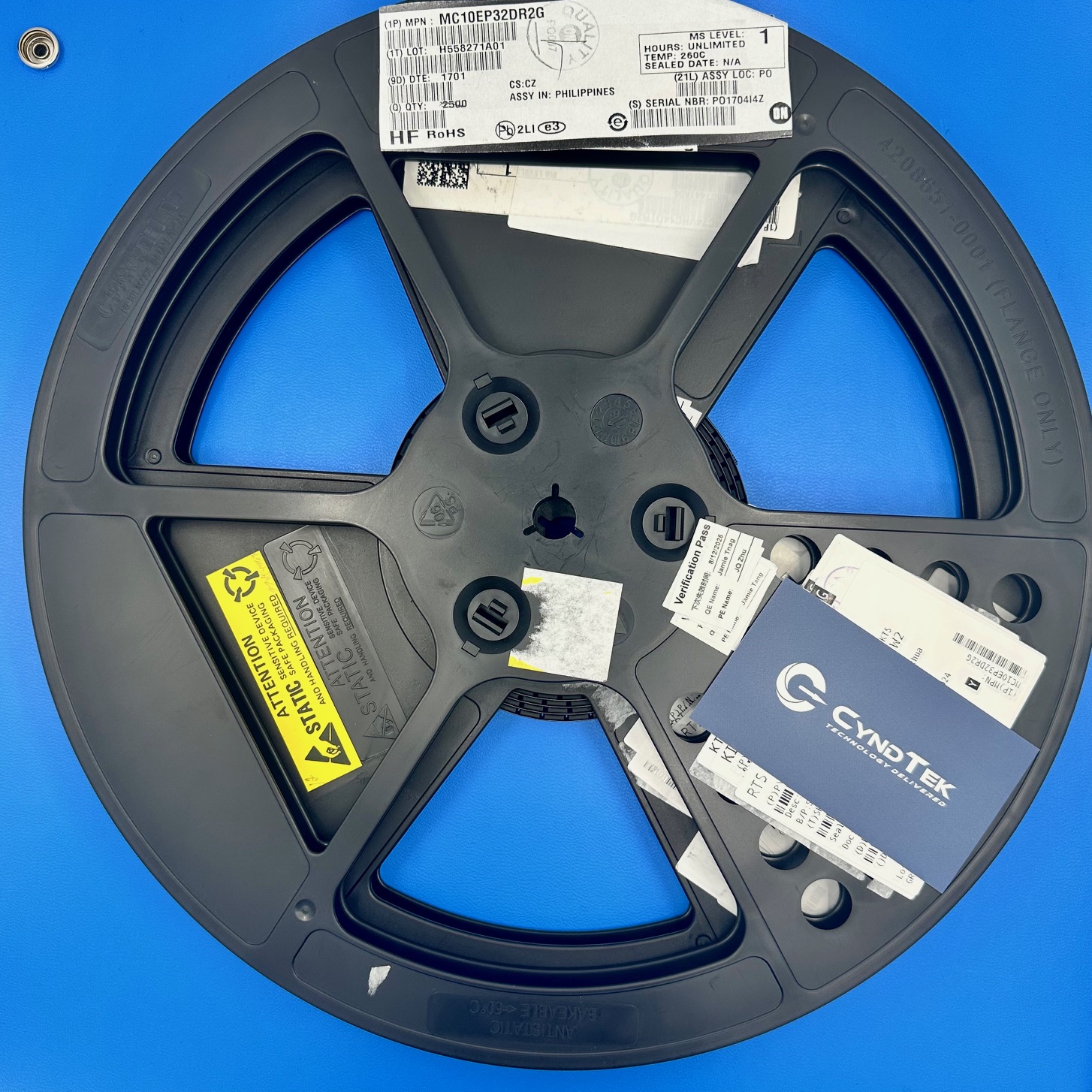

MC10EP32DG

MC10EP32DG Specifications

Manufacturer: onsemi
Part Number: MC10EP32DG
Product Type: ECL Divide-by-2 Frequency Divider
Logic Family: PECL / NECL
Input Type: Differential Clock
Max Frequency: Greater than 4 GHz
Propagation Delay: 350 ps (typical)
Output Type: Differential
Reset Function: Asynchronous Reset (Active High)
Reference Output: VBB for Single-Ended Input
Voltage Range: 3.0 V to 5.5 V (PECL), -3.0 V to -5.5 V (NECL)
Package Type: 8-SOIC (3.90 mm Width)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The MC10EP32DG from onsemi is a high-speed frequency divider that operates as a divide-by-2 logic circuit with exceptional precision and minimal delay. It supports both PECL and NECL logic levels, offering flexible compatibility in advanced circuit designs. The device operates reliably at frequencies above 4 GHz, with only 350 picoseconds of propagation delay, making it ideal for high-speed clocking. It features differential inputs and outputs to ensure clean signal transitions, while the integrated VBB reference output supports single-ended signal sources. With an asynchronous reset input, it allows for full output synchronization regardless of input timing. This part comes in a compact 8-lead SOIC package optimized for surface mount technology.

Applications

Fiber optic transceivers in long-haul telecom systems that require sub-GHz frequency division
High-frequency signal test equipment for dividing fast analog or digital signals
Radar signal generation subsystems in avionics and satellite platforms
Timing circuits in LTE and 5G wireless base stations for channel synchronization
Medical imaging front-end systems in MRI machines requiring clock signal conditioning

Product Overview

onsemi’s MC10EP32DG is a precision-engineered, high-speed divide-by-2 frequency divider designed for demanding RF, microwave, and logic applications. Its wide voltage operation range allows it to support both positive and negative ECL logic environments. With sub-nanosecond propagation delays and a bandwidth exceeding 4 GHz, the device performs reliably in data-intense communication and instrumentation systems. The integrated VBB reference simplifies single-ended input designs, while differential I/O supports low-noise transmission and reception across complex boards. Designed for harsh environments and wide temperature tolerances, the MC10EP32DG enables robust, fast-switching frequency control in today’s most performance-critical platforms.
