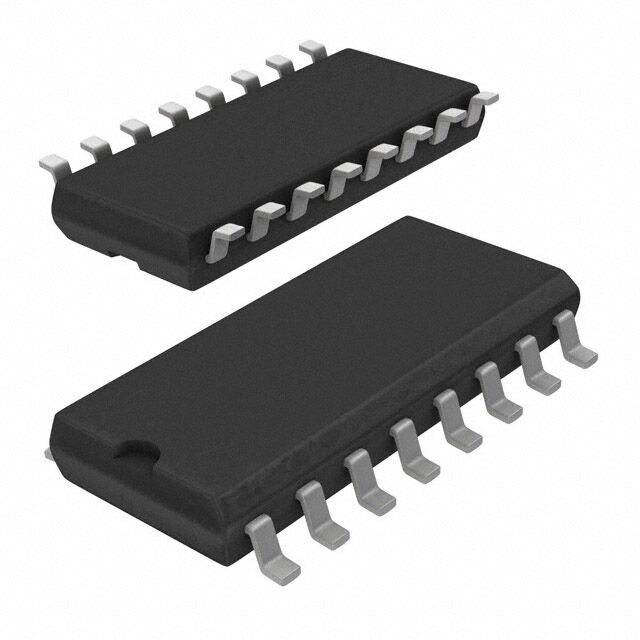

MC10H350MG

MC10H350MG Specifications:

• Part Number: MC10H350MG
• Description: PECL to TTL Translator, 4 Functions, True Output, ECL, Plastic Dual Small Outline (PDSO16)
• RoHS: Yes
• Lifecycle Status: Obsolete (EOL Date: 04/05/2011)
• Part Type: Level Translators
• Product Family: Logic
• Base Part Number: MC10H350
• Manufacturer: On Semi
• Mfr. Cage Code: ONS
• Harmonized Code: 8542.39.0001
• Product Group: Additional Logic Functions
• Product Category: Level Translators
• Package: SOP16
• Pin Count: 16

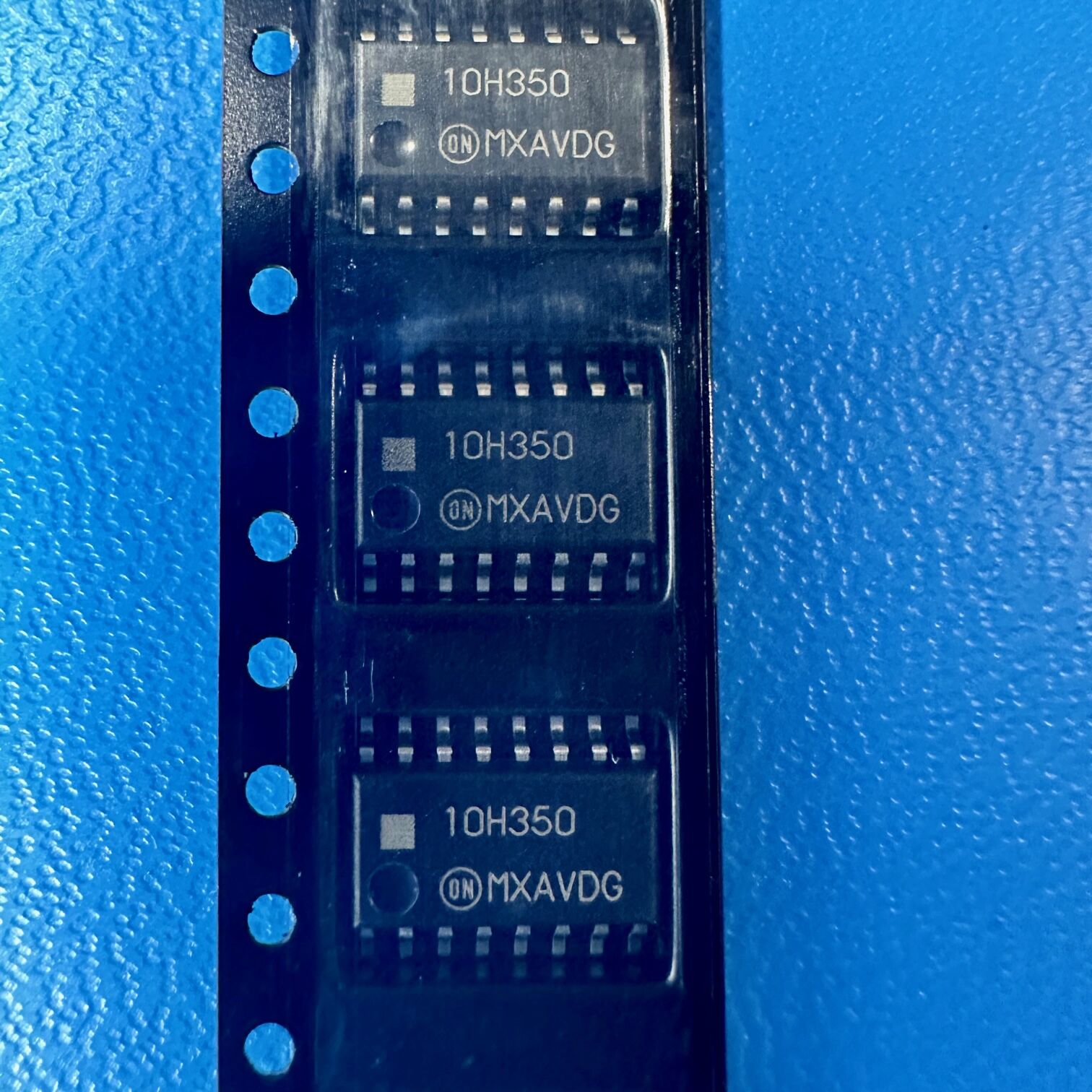

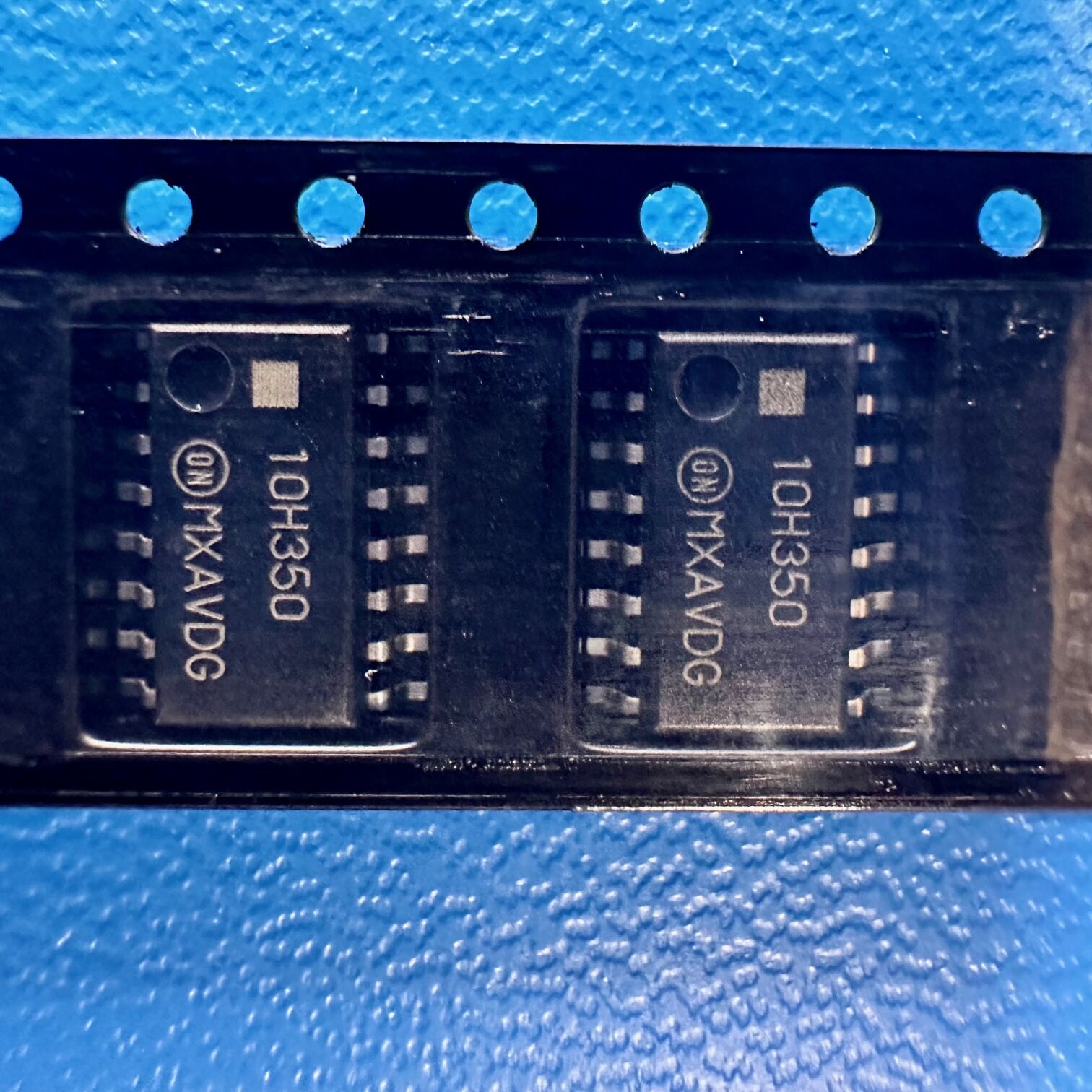

• Packaging Type: Cut Tape
• Lead Free: Yes
• EU RoHS: Yes

Additional Information:

The MC10H350MG, belonging to the high-performance 10H family of ECL logic, features 4 translators with differential inputs and TTL outputs. These outputs, with a 3-state capability, can be deactivated by applying a HIGH TTL logic level to the common OE input. Specifically designed for systems integrating ECL and TTL logic sharing a common power supply, the MC10H350 maintains separate VCC power pins to isolate noisy TTL VCC runs from quieter ECL VCC runs on the printed circuit board. Its differential inputs allow versatile usage as an inverting or noninverting translator, or as a differential line receiver. Additionally, the MC10H350MG can drive CMOS with the inclusion of a pullup resistor. Notable features include a typical propagation delay of 3.5 ns, compatibility with MECL 10K™, and availability in Pb−Free packages.
