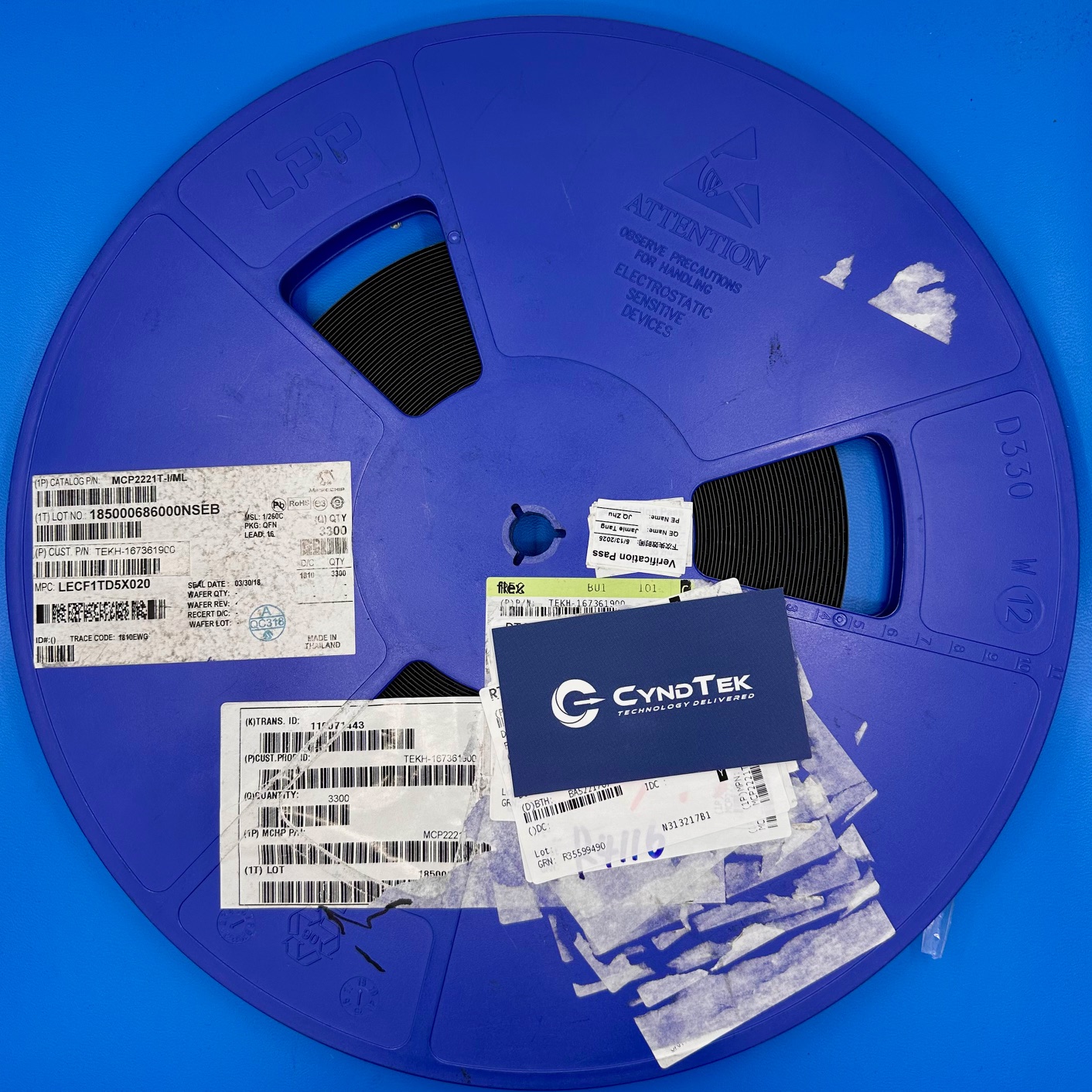

MCP2221T-I/ML

MCP2221T-I/ML Specifications

Manufacturer: Microchip Technology
Part Number: MCP2221T-I/ML
Product Type: USB 2.0 to I²C/UART Protocol Converter with GPIO
USB Speed: Full-Speed (12 Mb/s)
Interfaces: I²C, UART, GPIO
Supply Voltage Range: 3.0 V to 5.5 V
Operating Current: 3 mA (typical)
Suspend Current: 5.5 µA (typical)
GPIO Pins: 4 (configurable as GPIO, ADC, DAC, or special functions)
ADC Resolution: 10-bit
DAC Resolution: 5-bit
Package / Case: 16-Lead VQFN
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The MCP2221T-I/ML is a versatile USB-to-UART/I²C serial converter that enables USB connectivity in applications with UART and I²C interfaces. It supports full-speed USB 2.0 operation at 12 Mb/s, facilitating efficient data transfer. The device integrates four general-purpose I/O pins, which can be configured as GPIO, 10-bit ADC inputs, 5-bit DAC outputs, or for special functions such as clock output and status indicators. Operating within a supply voltage range of 3.0 V to 5.5 V, the MCP2221T-I/ML consumes minimal power, with a typical operating current of 3 mA and a suspend current of 5.5 µA. Its compact 16-lead VQFN package supports surface mount assembly, making it suitable for space-constrained designs. The device operates reliably over a temperature range of -40°C to +85°C and complies with RoHS standards, ensuring environmental responsibility.

Applications

USB-to-I²C/UART protocol conversion
USB-to-GPIO interface bridging
USB data acquisition systems
Embedded system programming
Industrial automation control

Product Overview

The MCP2221T-I/ML from Microchip Technology offers a seamless solution for integrating USB connectivity into systems with I²C and UART interfaces. By bridging the gap between USB and these communication protocols, it simplifies the design of USB-enabled applications. The configurable GPIO pins enhance its versatility, allowing for additional functionalities such as analog-to-digital and digital-to-analog conversions. Its low power consumption and wide supply voltage range make it suitable for various power-sensitive applications. The device’s compliance with USB 2.0 standards ensures compatibility with a broad range of USB hosts, facilitating easy integration into existing systems. Overall, the MCP2221T-I/ML is a robust and flexible choice for designers seeking to add USB functionality to their applications.
