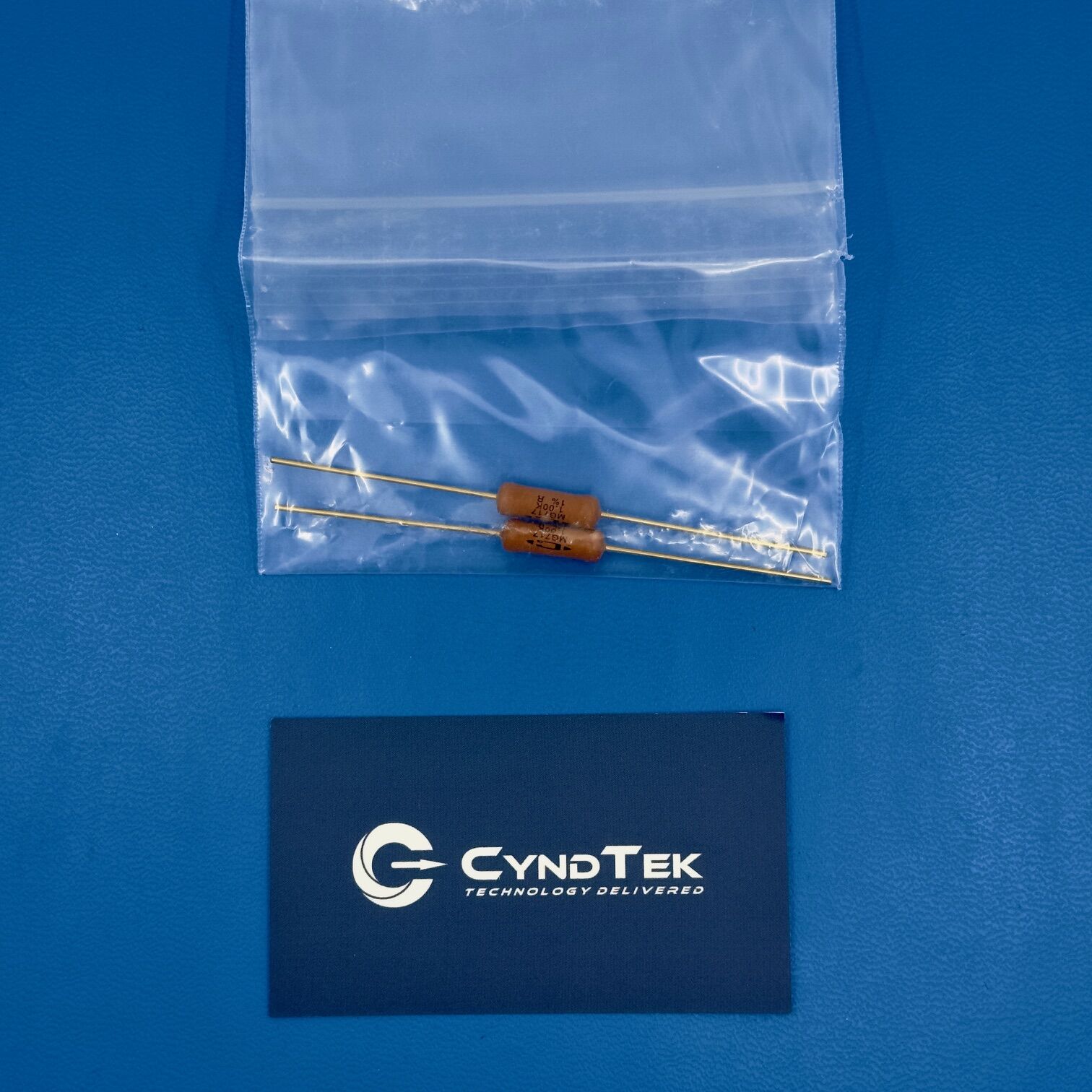

MG717-1.00K-1% Specifications
Manufacturer: Caddock
Part Number: MG717-1.00K-1%
NSN: 5905-01-260-4563
Product Type: High Voltage Precision Resistor
Resistance Value: 1.00 kOhm
Tolerance: ±1%
Power Rating: 7 Watts
Resistor Style: Axial Lead
Construction: Thick Film
Voltage Rating: High Voltage Design
Operating Temperature Range: -55°C to +275°C
Temperature Coefficient: ±100 ppm/°C
Compliance: MIL-PRF-55342
Packaging: Factory
Key Features
The MG717-1.00K-1% is a high voltage precision resistor engineered for aerospace and defense applications. It provides 1.00 kOhm resistance with ±1% tolerance and a 7 watt power rating. Additionally, the thick film construction supports stable performance under elevated voltage conditions. The axial lead configuration allows secure through-hole mounting in rugged assemblies. Because it meets MIL-PRF-55342 performance standards, it integrates directly into regulated military platforms. As a result, it delivers dependable resistance control in high-energy circuits.
Applications
Military aircraft power regulation systems
Ground vehicle electronic control units
Naval radar power modules
Aerospace instrumentation platforms
Defense high voltage supply circuits
Precision load balancing assemblies
Signal conditioning networks
Industrial high voltage control systems
Product Overview
The MG717-1.00K-1% from Caddock delivers stable resistance and dependable high voltage performance in demanding environments. First, its 1.00 kOhm value supports accurate current control and voltage division. Furthermore, the 7 watt rating allows reliable operation under sustained load conditions. Because it is constructed using thick film technology, it offers improved thermal stability compared to standard carbon resistors.
Moreover, its wide operating temperature range supports use in aerospace and defense environments. In addition, the established military compliance ensures consistent quality and traceability. Therefore, it is suitable for both new production builds and maintenance replacements. Overall, this resistor provides dependable electrical accuracy, mechanical durability, and military-grade reliability for high voltage systems.
