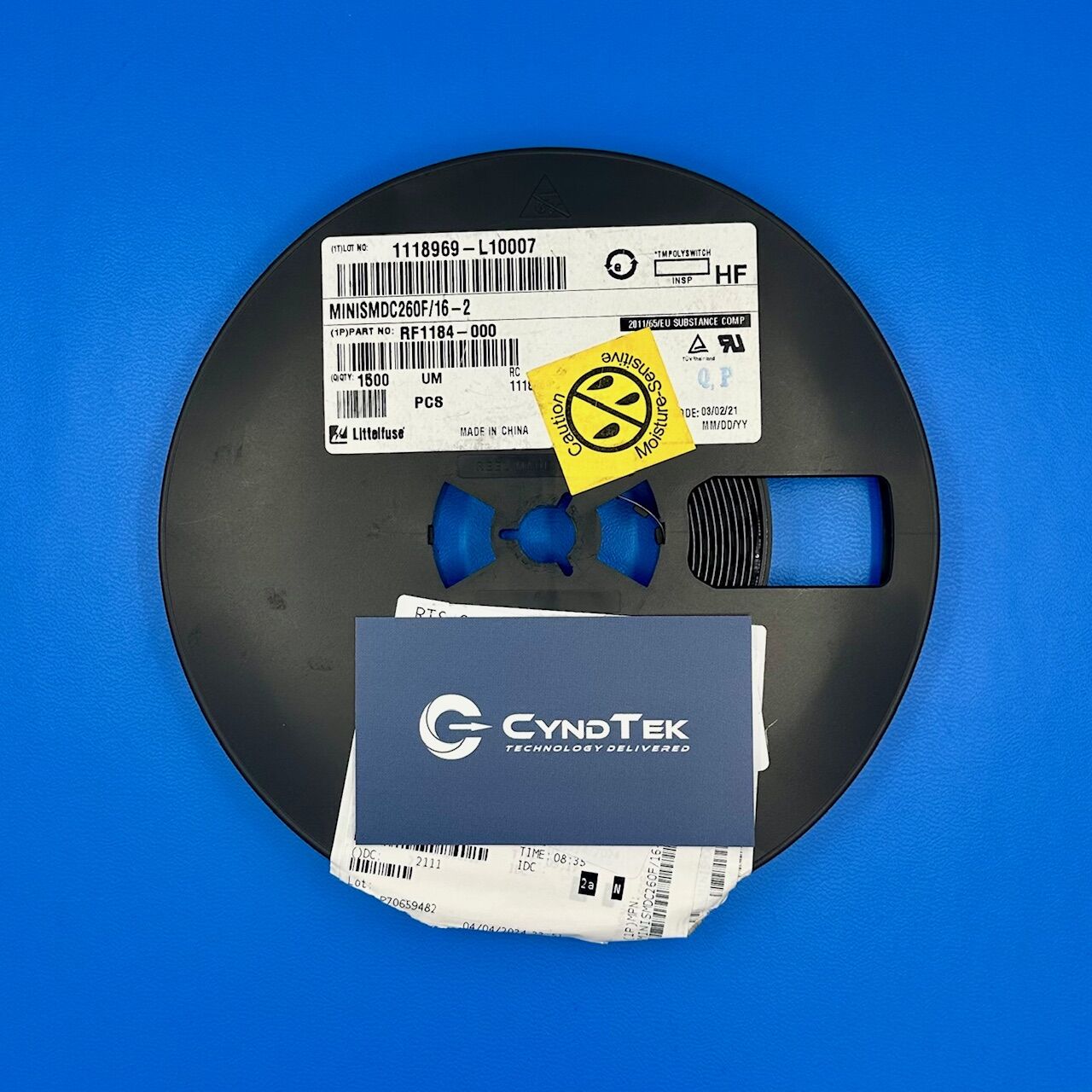

MINISMDC260F/16-2

MINISMDC260F/16-2 Specifications

Manufacturer: Littelfuse
Part Number: MINISMDC260F/16-2
Product Type: PolySwitch® Resettable PPTC Fuse
Hold Current (Ih): 2.6 A
Trip Current (It): 5 A
Maximum Voltage (Vmax): 16 VDC
Maximum Current (Imax): 100 A
Time to Trip: 5 seconds at 8 A
Resistance – Initial (Ri): 0.015 Ω
Resistance – Post Trip (R1max): 0.05 Ω
Power Dissipation (Pd): 1.2 W
Operating Temperature Range: -40°C to +85°C
Package / Case: 1812 (4532 Metric) Surface Mount
RoHS Status: RoHS Compliant

Key Features

The MINISMDC260F/16-2 is a surface-mount PolySwitch® resettable fuse from Littelfuse, designed to provide overcurrent protection in compact electronic circuits. With a hold current of 2.6 A and a trip current of 5 A, it effectively safeguards against overcurrent conditions up to a maximum voltage of 16 VDC. The device can withstand fault currents up to 100 A, ensuring robust protection for sensitive components. Its low initial resistance of 0.015 Ω minimizes voltage drop, while the post-trip maximum resistance of 0.05 Ω ensures consistent performance after fault clearance. The fuse’s power dissipation is rated at 1.2 W, and it operates reliably within a temperature range of -40°C to +85°C. Encased in a compact 1812 surface-mount package, the MINISMDC260F/16-2 is suitable for high-density circuit boards where space is limited.

Applications

• Overcurrent protection in mobile electronics and battery-powered devices

• Safety circuits in consumer electronics such as game consoles and multimedia devices

• Protection for communication equipment including telephones and broadband devices

• Automotive electronics requiring reliable circuit protection

• Industrial control systems needing resettable overcurrent protection

Product Overview

Littelfuse’s MINISMDC260F/16-2 PolySwitch® resettable fuse offers a reliable solution for overcurrent protection in various electronic applications. Its compact 1812 surface-mount package allows for easy integration into space-constrained designs. The device’s low resistance and quick response to fault conditions help maintain system performance and protect sensitive components. With a wide operating temperature range and compliance with RoHS standards, the MINISMDC260F/16-2 ensures durability and adherence to environmental regulations. This resettable fuse is particularly well-suited for applications requiring repeated overcurrent protection without the need for fuse replacement, enhancing both safety and convenience in electronic designs.
