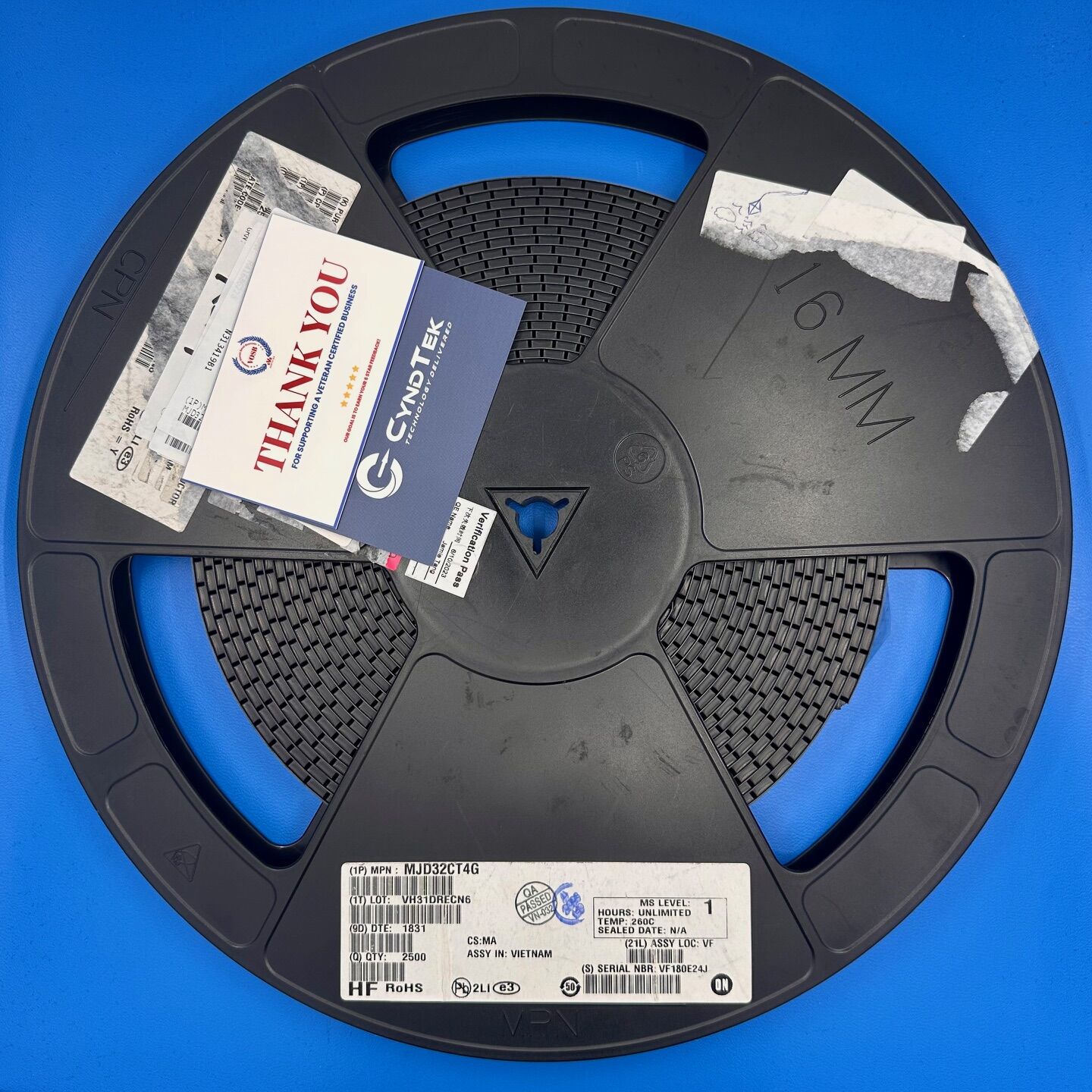

MJD32CT4G

MJD32CT4G Specifications

Manufacturer: onsemi
Part Number: MJD32CT4G
Product Type: PNP Bipolar Power Transistor
Collector-Emitter Voltage: 100 V
Collector Current: 3 A
Power Dissipation: 15 W
DC Current Gain (hFE): 10 (min) at IC = 3 A, VCE = 4 V
Transition Frequency: 3 MHz
Package / Case: DPAK (TO-252)
Mounting Type: Surface Mount
Operating Junction Temperature Range: -65°C to +150°C
RoHS Status: RoHS Compliant

Key Features

The MJD32CT4G is a PNP bipolar power transistor designed for general-purpose amplifier and low-speed switching applications. It supports a maximum collector-emitter voltage of 100 V and a continuous collector current up to 3 A. With a power dissipation capability of 15 W, this transistor is suitable for medium power applications. The device offers a minimum DC current gain of 10 at 3 A collector current and 4 V collector-emitter voltage, ensuring efficient amplification. Its transition frequency of 3 MHz makes it appropriate for low to moderate frequency operations. Packaged in a DPAK (TO-252) case, the MJD32CT4G is optimized for surface-mount applications, facilitating compact and efficient PCB layouts. The operating junction temperature ranges from -65°C to +150°C, accommodating various environmental conditions.

Applications

General-purpose amplification
Low-speed switching
Linear and switching equipment
Power management systems
Automotive electronics

Product Overview

The MJD32CT4G from onsemi is a versatile PNP bipolar power transistor suitable for a range of amplification and switching tasks. Its robust voltage and current handling capabilities, combined with a 15 W power dissipation rating, make it ideal for medium power applications. The transistor’s DC current gain and transition frequency support effective performance in low to moderate frequency circuits. Encased in a DPAK (TO-252) package, the MJD32CT4G is designed for surface-mount technology, promoting efficient use of PCB space. Its wide operating junction temperature range ensures reliability across diverse operating environments. Compliant with RoHS standards, this transistor aligns with global environmental and safety regulations.
