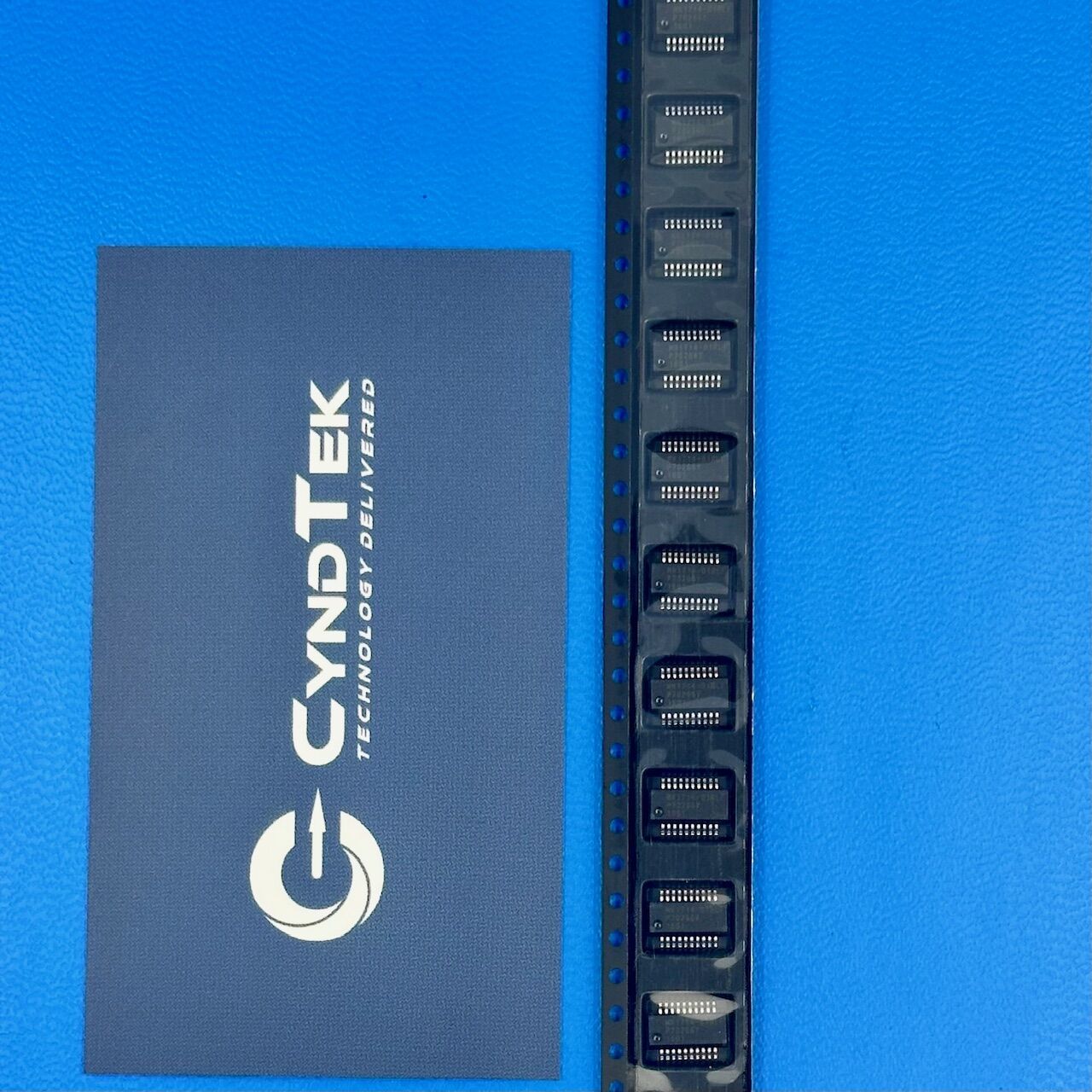

MK1714-01RLF

MK1714-01RLF Specifications

Manufacturer: Renesas Electronics Corporation
Part Number: MK1714-01RLF
Product Type: Spread Spectrum Multiplier Clock
Input Type: Clock, Crystal
Output Type: CMOS
Number of Circuits: 1
Input Frequency Range: 10 MHz to 25 MHz
Output Frequency Range: Up to 200 MHz
Multiplier Modes: x1, x2, x3, x4, x5, x6
Voltage Supply Range: 3.0 V to 5.5 V
Operating Temperature Range: 0°C to +70°C
Mounting Type: Surface Mount
Package / Case: 20-SSOP (0.154″, 3.90mm Width)
RoHS Status: RoHS Compliant

Key Features

The MK1714-01RLF from Renesas Electronics is a low-cost, high-performance clock synthesizer with selectable multipliers and spread spectrum capabilities. Designed to generate high-frequency clocks with reduced electromagnetic interference (EMI). Utilizing analog/digital Phase Locked Loop (PLL) techniques, the device accepts an inexpensive, fundamental mode, parallel resonant crystal or clock input to produce a spread or dithered output. This reduces the EMI amplitude peaks at the odd harmonics by several dB. The MK1714-01RLF offers multiplier modes of x1, x2, x3, x4, x5, and x6, providing flexibility for various applications. The device operates within a voltage supply range of 3.0 V to 5.5 V, Supports an input frequency range of 10 MHz to 25 MHz. Delivers output frequencies up to 200 MHz. Additional features include an Output Enable (OE) pin that tri-states the outputs for board testing and a Power Down pin that stops the outputs low, enhancing its versatility in system designs.

Applications

Electromagnetic interference reduction in computing systems.
Clock generation in consumer electronics.
Frequency synthesis in communication devices.
Timing solutions in industrial automation equipment.
Signal processing in audio and video equipment.

Product Overview

Renesas Electronics’ MK1714-01RLF is engineered to meet the demands of modern electronic systems requiring efficient clock generation with minimized EMI. Its selectable multiplier modes and spread spectrum capabilities make it suitable for a wide range of applications. Involving computing and consumer electronics to industrial automation and communication devices. The device’s ability to accept a low-cost crystal or clock input and produce high-frequency outputs up to 200 MHz offers design flexibility and cost-effectiveness. Operating within a supply voltage range of 3.0 V to 5.5 V and an operating temperature range of 0°C to +70°C, the MK1714-01RLF ensures reliable performance across various environmental conditions. Its compact 20-SSOP package facilitates easy integration into space-constrained designs, making it a valuable component for engineers seeking to reduce EMI while maintaining high-performance clock generation.
