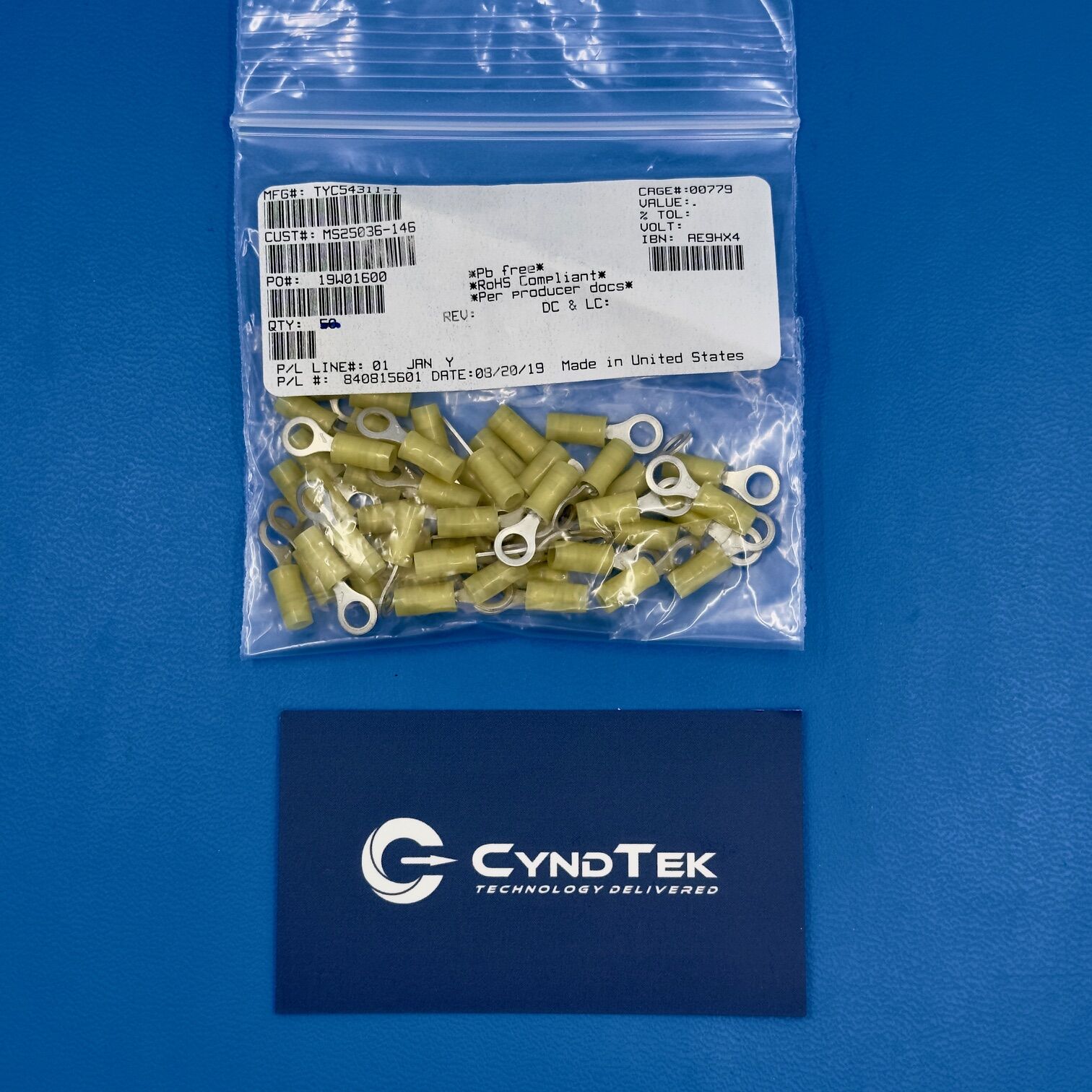

MS25036-146 Specifications
Manufacturer: HSC
Part Number: MS25036-146
NSN: 5940-00-982-2055
Product Type: Ring Tongue Terminal
Stud Size: No. 8
Wire Size Range: 16–14 AWG
Termination Style: Crimp
Material: Copper Alloy
Plating: Tin Plated
Insulation Type: Non-Insulated
Mounting Type: Stud Mount
Operating Temperature Range: -55°C to +125°C
Compliance: MIL-Spec Qualified
Packaging: Factory
Key Features
The MS25036-146 is a MIL-spec ring tongue terminal designed for secure electrical terminations on No. 8 stud connections. It supports 16 to 14 AWG wire sizes, allowing dependable mechanical and electrical performance. Additionally, the crimp termination method ensures consistent wire attachment under vibration. The copper alloy construction provides strong conductivity and mechanical strength. Meanwhile, the tin plating enhances corrosion resistance and improves solderability when required. Because it meets military specifications, it is suitable for aerospace and defense applications requiring long-term reliability.
Applications
Military aircraft wiring harnesses
Ground vehicle power distribution systems
Naval electrical panels
Aerospace control modules
Defense communication systems
Industrial equipment terminals
Battery and grounding connections
Panel-mounted electrical assemblies
Product Overview
The MS25036-146 from HSC delivers reliable ring terminal performance in demanding environments. First, its No. 8 stud compatibility allows secure fastening to standard terminal posts. Furthermore, the crimp-style termination ensures consistent mechanical retention and electrical conductivity. Because it is manufactured to MIL-spec standards, it supports high-reliability installations.
Moreover, the tin-plated copper construction improves corrosion resistance in field conditions. In addition, the non-insulated design allows flexibility for custom insulation sleeves or heat shrink solutions. Therefore, it supports both maintenance operations and new production assemblies. Overall, this ring tongue terminal provides dependable conductivity, mechanical strength, and military-grade durability for professional wiring systems.
Contact Us
Cyndtek supplies new, factory-packaged MIL-spec electrical terminals and interconnect components for aerospace, defense, and industrial procurement programs. If you require volume pricing or immediate availability, contact our team directly. We support OEMs, contractors, and procurement professionals nationwide. For ordering details and current inventory, visit https://cyndtek.com/shop/.
