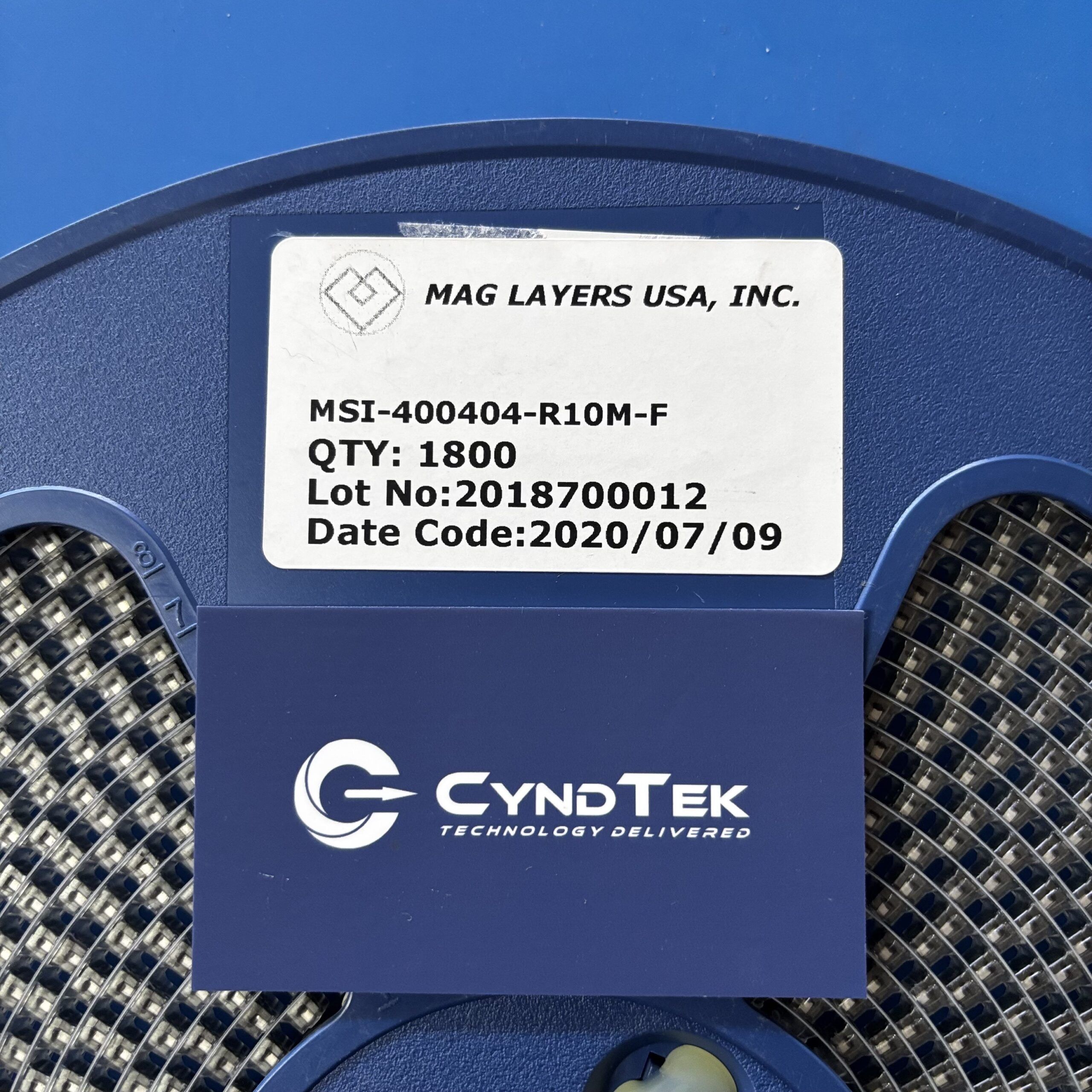

MSI-400404-R10M-F

MSI-400404-R10M-F Specifications

Manufacturer: Mag Layers
Part Number: MSI-400404-R10M-F
Product Type: High Current Surface-Mount Inductor
Inductance: 0.1 µH ±20%
DC Resistance (DCR): 0.32 mΩ ±9%
Rated Current: 24 A to 32 A
Package Dimensions: 4.0 mm (L) x 4.0 mm (W) x 4.0 mm (H)
Operating Temperature Range: -40°C to +125°C
Mounting Type: Surface Mount
Shielding: Unshielded
Saturation Current: High saturation current design
Core Type: Ferrite
Frequency Range: Up to several MHz
Compliance: RoHS Compliant
Typical Applications: Power management and regulation
Thermal Stability: Excellent under high-load conditions

Key Features

The MSI-400404-R10M-F from Mag Layers is a compact, high-current surface-mount inductor specifically engineered for demanding applications requiring reliable energy storage. It offers a low inductance value of 0.1 µH with tight tolerance, paired with a very low DCR of 0.32 mΩ. Thus supporting current loads up to 32 A. These characteristics make it an excellent choice for applications where efficiency and thermal stability are critical. Moreover, the compact 4 mm form factor supports high-density designs, while the wide operating temperature range enables performance in varied environmental conditions. Additionally, the device’s robust ferrite core helps reduce core losses at higher frequencies.

Applications

DC-DC converters in power supply architectures
Voltage regulation in graphics cards and motherboards
Battery management systems in electric vehicles
Power modules in telecom infrastructure equipment
High-current rails in FPGA and ASIC platforms

Product Overview

The MSI-400404-R10M-F delivers robust performance in high-current applications that demand exceptional power handling and thermal efficiency. Its ferrite core construction and unshielded design provide a balance of size and performance. Thus making it ideal for board layouts with limited space. This inductor maintains efficiency under load while minimizing heat generation due to its extremely low resistance. Furthermore, its compatibility with surface-mount assembly streamlines manufacturing and supports automated placement processes.  RoHS compliance and stable inductance across temperature variations The MSI-400404-R10M-F stands out as a durable and efficient solution for advanced power designs.
