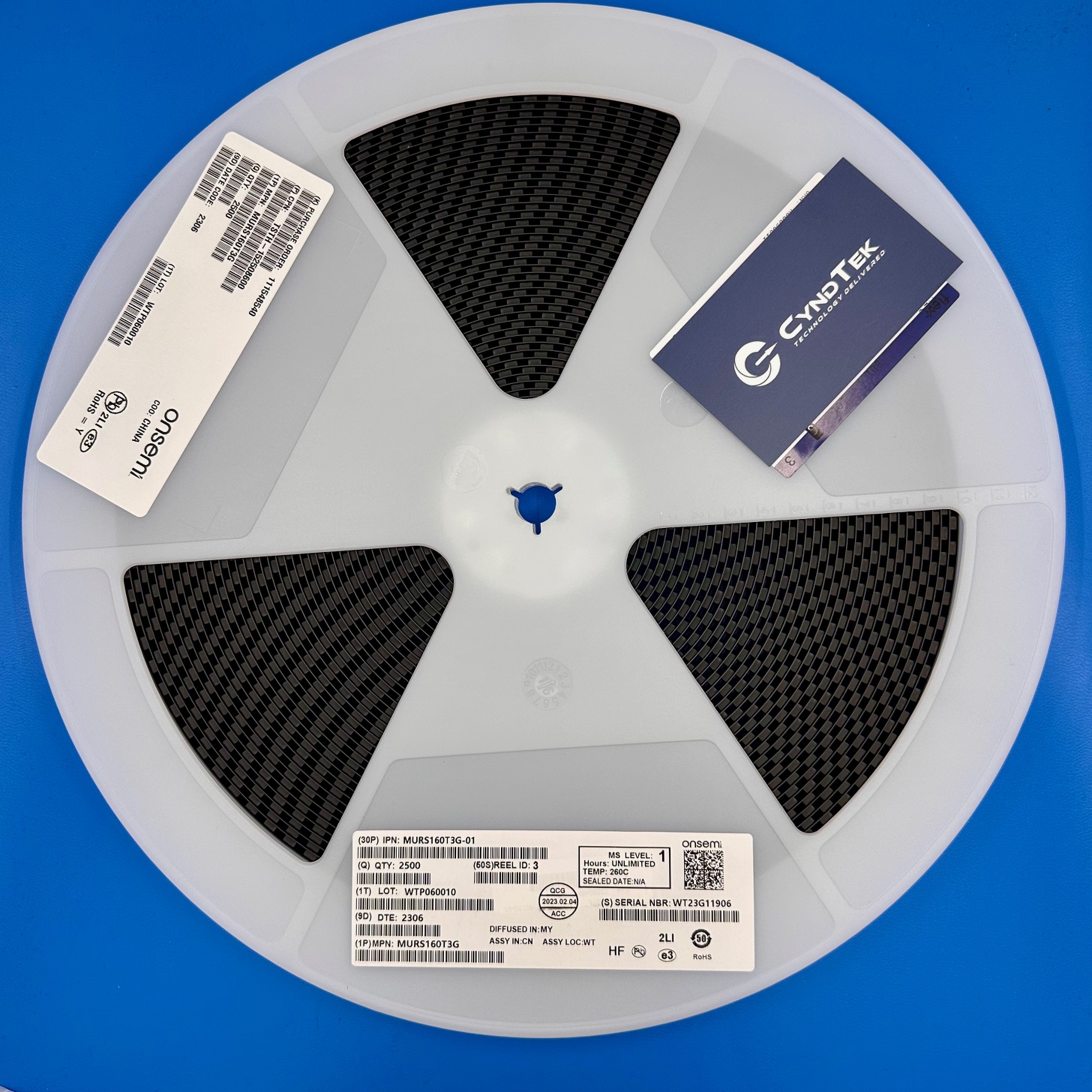

MURS160T3G Specifications
Manufacturer: onsemi
Part Number: MURS160T3G
Product Type: Ultrafast Power Rectifier
Maximum Repetitive Reverse Voltage (VRRM): 600 V
Average Rectified Forward Current (IF(AV)): 1.0 A
Peak Surge Forward Current (IFSM): 35 A
Forward Voltage (VF): 1.25 V at 1.0 A
Reverse Recovery Time (trr): 75 ns
Package / Case: SMB (DO-214AA)
Mounting Type: Surface Mount
Operating Junction Temperature Range: -65°C to +175°C
RoHS Status: RoHS Compliant
Key Features
The MURS160T3G is a surface-mount ultrafast power rectifier designed for high-voltage, high-frequency rectification applications. With a maximum repetitive reverse voltage of 600 V and an average rectified forward current of 1.0 A, it is well-suited for demanding power conversion tasks. The device features a low forward voltage drop of 1.25 V at 1.0 A, enhancing efficiency by reducing power losses. Its ultrafast reverse recovery time of 75 ns minimizes switching losses, making it ideal for high-frequency applications. The rectifier’s peak surge forward current capability of 35 A allows it to withstand transient surges, ensuring reliability in various operating conditions. Encased in the compact SMB (DO-214AA) package, the MURS160T3G supports surface-mount installation, facilitating automated assembly and space-saving designs. Operating over a wide junction temperature range from -65°C to +175°C, it maintains consistent performance across diverse thermal environments. Compliance with RoHS standards underscores onsemi’s commitment to environmental responsibility.
Applications
High-frequency rectification
Freewheeling diodes in switching regulators
Power management systems
Protection diodes in high-voltage applications
Converters and inverters
Product Overview
The MURS160T3G from onsemi is engineered to deliver reliable and efficient performance in high-voltage, high-frequency rectification applications. Its ultrafast recovery time of 75 ns reduces switching losses, thereby improving overall system efficiency. The device’s low forward voltage drop minimizes conduction losses, which is critical in power-sensitive applications. With a peak surge forward current rating of 35 A, it can effectively handle transient conditions, enhancing system robustness. The compact SMB (DO-214AA) package supports surface-mount technology, enabling streamlined manufacturing processes and compact PCB layouts. Operating across a broad junction temperature range, the MURS160T3G ensures stable performance in varying thermal conditions, making it a versatile choice for designers seeking a high-performance rectifier for modern electronic systems.
