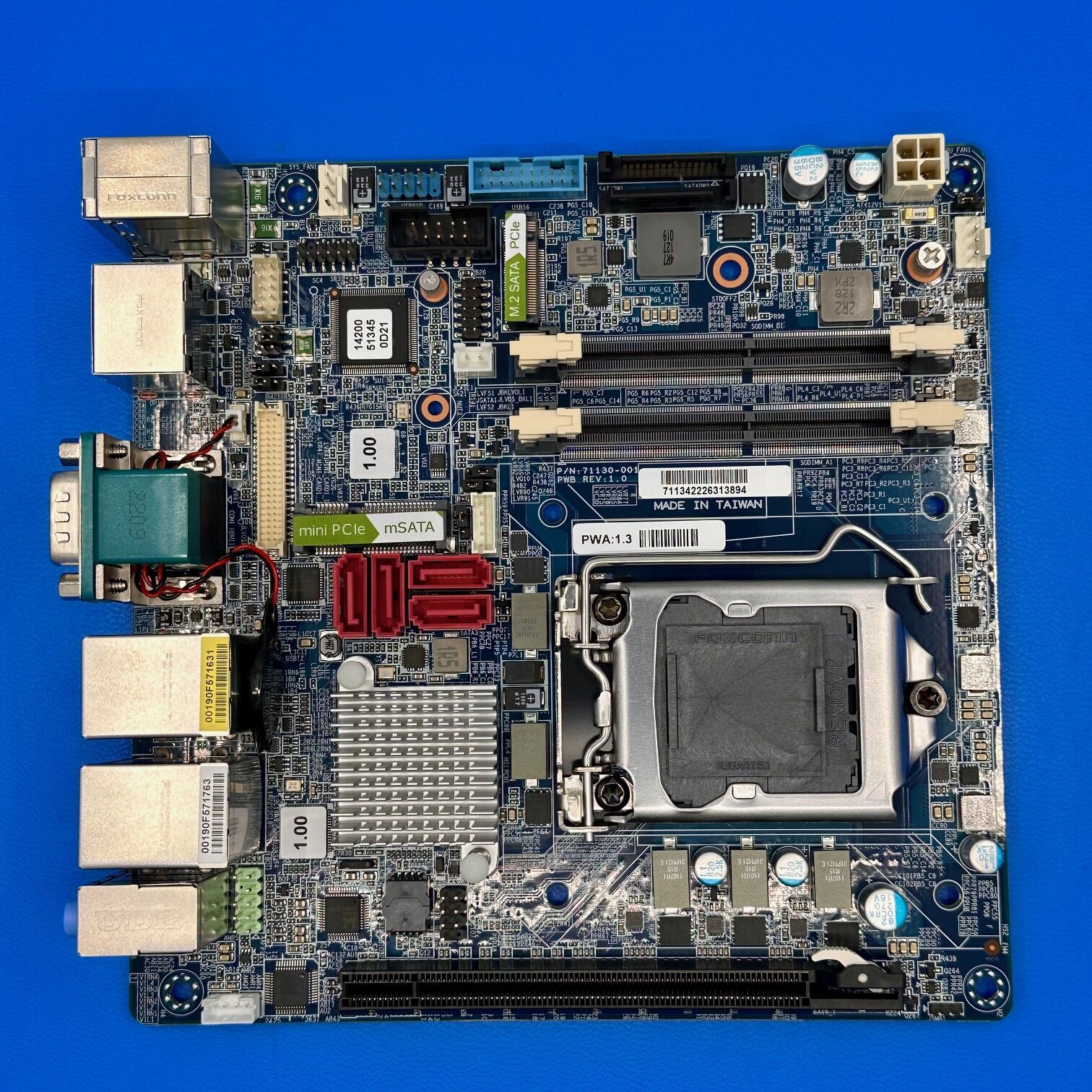

MX170QD Specifications:
Processor and Chipset:
- Supports Intel® LGA1151 socket for 6th/7th generation 14nm Intel® Core™ i7/i5/i3 and Celeron® processors
- Utilizes the Intel® Q170 PCH chipset
Memory:
- Two gold-plated SODIMM slots
- Supports up to 32 GB dual-channel DDR4 2133 MHz system memory
Graphics and Display:
- Integrated Intel® HD Graphics
- Supports three independent displays
- Two DisplayPort++ (gold-plated)
- One HDMI (gold-plated)
- One LVDS connector
- Optional eDP support
- Maximum resolutions:
- DisplayPort: 4096×2304 @ 60Hz
- HDMI: 4096×2160 @ 24Hz
- LVDS: 1920×1200 @ 60Hz
Storage and Expansion:
- Four SATA III ports (gold-plated)
- One PCIe x16 slot (gold-plated)
- One full/half-size mini-PCIe slot with mSATA III support (gold-plated)
- One M.2 slot supporting 2280 or 2242 modules (gold-plated)
USB and I/O Interfaces:
- Six USB 3.0 ports (four rear, two internal headers; gold-plated)
- Four USB 2.0 ports (two rear, two internal headers; gold-plated)
- Two COM ports
- One PS/2 keyboard/mouse port
- Audio: Line-in, Line-out, Mic-in
