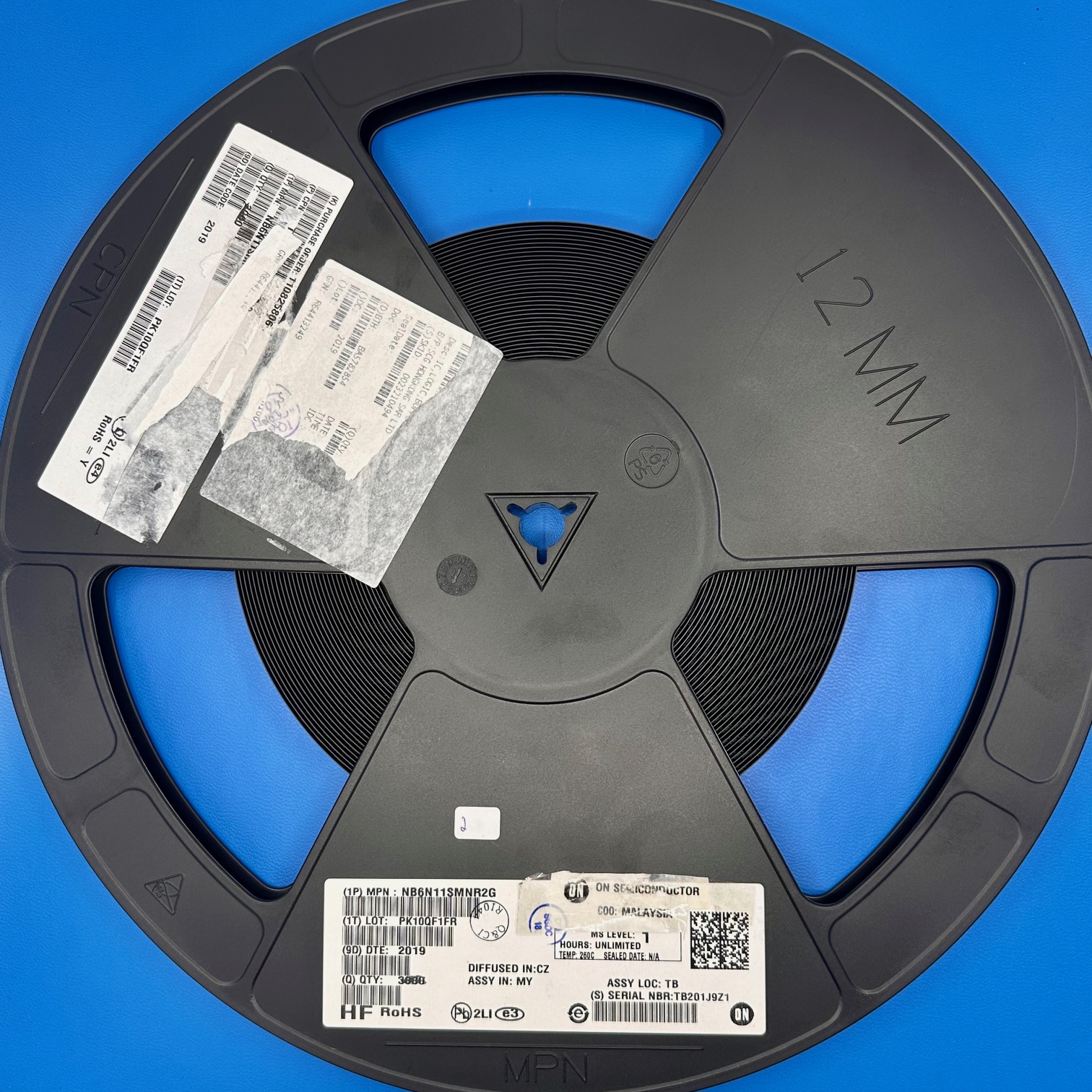

NB6N11SMNR2G Specifications
Manufacturer: onsemi
Part Number: NB6N11SMNR2G
Product Type: 1:2 Clock/Data Fanout Buffer/Translator
Input Voltage Range: 3.0 V to 3.6 V
Input Signal Compatibility: LVPECL, CML, LVCMOS, LVTTL, LVDS
Output Signal Type: LVDS
Maximum Input Frequency: 2 GHz
Maximum Data Rate: 2.5 Gb/s
Propagation Delay: 380 ps (typical)
RMS Clock Jitter: 1 ps (maximum)
Rise and Fall Times: 120 ps (typical)
Package / Case: 16-QFN (3mm x 3mm)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
Key Features
The NB6N11SMNR2G is a high-performance 1:2 clock or data fanout buffer and translator from onsemi. It accepts a wide range of input signals, including LVPECL, CML, LVCMOS, LVTTL, and LVDS, and translates them to LVDS outputs. Operating with a supply voltage between 3.0 V and 3.6 V, it supports input frequencies up to 2 GHz and data rates up to 2.5 Gb/s. The device features a typical propagation delay of 380 ps and a maximum RMS clock jitter of 1 ps, ensuring precise signal timing. Its compact 16-QFN package and surface-mount design facilitate integration into space-constrained applications.
Applications
High-speed data communications
Telecommunications infrastructure
Networking equipment
Test and measurement systems
Clock distribution networks
Product Overview
The NB6N11SMNR2G is engineered to provide reliable and efficient signal translation and distribution for high-speed applications. Its compatibility with various input signal types and LVDS output ensures seamless integration into diverse system architectures. The device’s high operating frequency and data rate capabilities make it suitable for demanding applications in telecommunications and networking. With low propagation delay and minimal clock jitter, it maintains signal integrity and timing accuracy. The robust operating temperature range of -40°C to +85°C ensures consistent performance in various environmental conditions.
