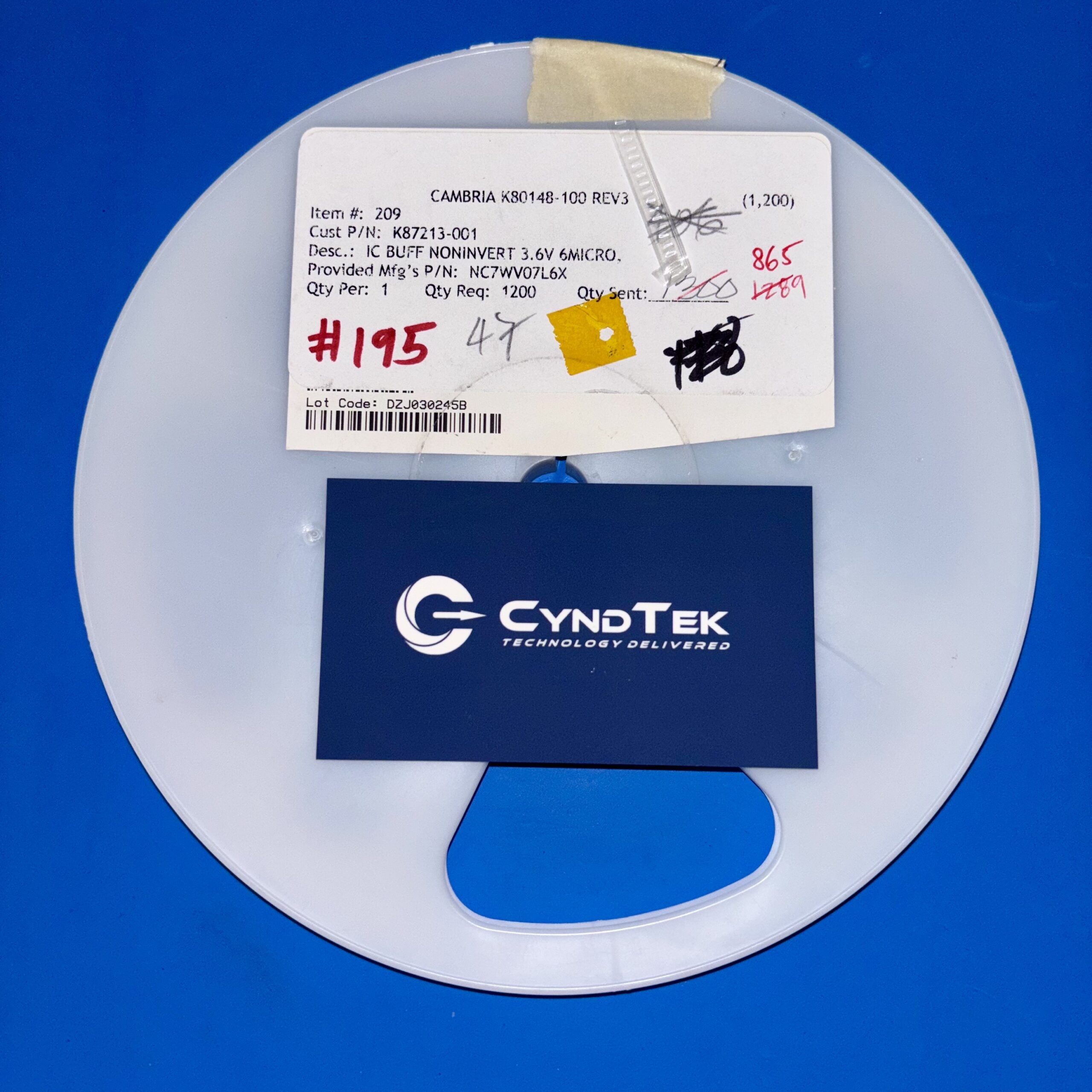

NC7WV07L6X

NC7WV07L6X Specifications

Manufacturer: onsemi
Part Type: Dual Buffer with Open-Drain Output
Logic Family: Advanced CMOS
Number of Channels: 2
Logic Type: Inverting
Output Type: Open Drain
Supply Voltage Range: 1.65 V to 5.5 V
High-Speed Performance: Yes
Input Compatibility: TTL and CMOS
Operating Temperature Range: -40°C to +85°C
Package Type: SC70-6 (SOT-363)
Mounting Type: Surface Mount
Power Consumption: Low
Propagation Delay: 2.6 ns at 5 V
RoHS Compliant: Yes
ESD Protection: High

Key Features

The NC7WV07L6X is a dual inverting buffer with open-drain outputs, tailored for high-speed, low-power digital applications. Built using advanced CMOS technology, it supports wide voltage operation from 1.65 V to 5.5 V. Its open-drain output allows wired-AND logic and level shifting, making it versatile in mixed-voltage environments. Additionally, it offers TTL and CMOS input compatibility, fast switching performance, and is protected against electrostatic discharge events. Housed in a compact SC70-6 package, this device is ideal for dense PCB layouts.

Applications

Signal buffering in mixed-voltage systems
Wired-AND logic applications
Level shifting between logic domains
Mobile devices
High-speed communication interfaces
Consumer electronics
LCD panel control
Embedded systems with GPIO expansion
Battery-powered industrial modules
Peripheral driver circuits

Product Overview

The NC7WV07L6X is designed to provide fast, energy-efficient signal inversion with open-drain output capability. Its ability to interface with both TTL and CMOS logic enables flexible integration into diverse digital environments. Moreover, its open-drain design supports wired logic configurations and voltage-level shifting, which is often required in multi-voltage systems. Its fast propagation delay and compact footprint enhance performance in applications where board space and speed are critical. With robust ESD protection and low static power draw, it fits perfectly in power-sensitive embedded designs.
