NFE61PT472C1H9L

NFE61PT472C1H9L

$0.40

FILTER LC(T) 4700PF SMD
  • Manufacturer: Murata
  • Part Number: NFE61PT472C1H9L

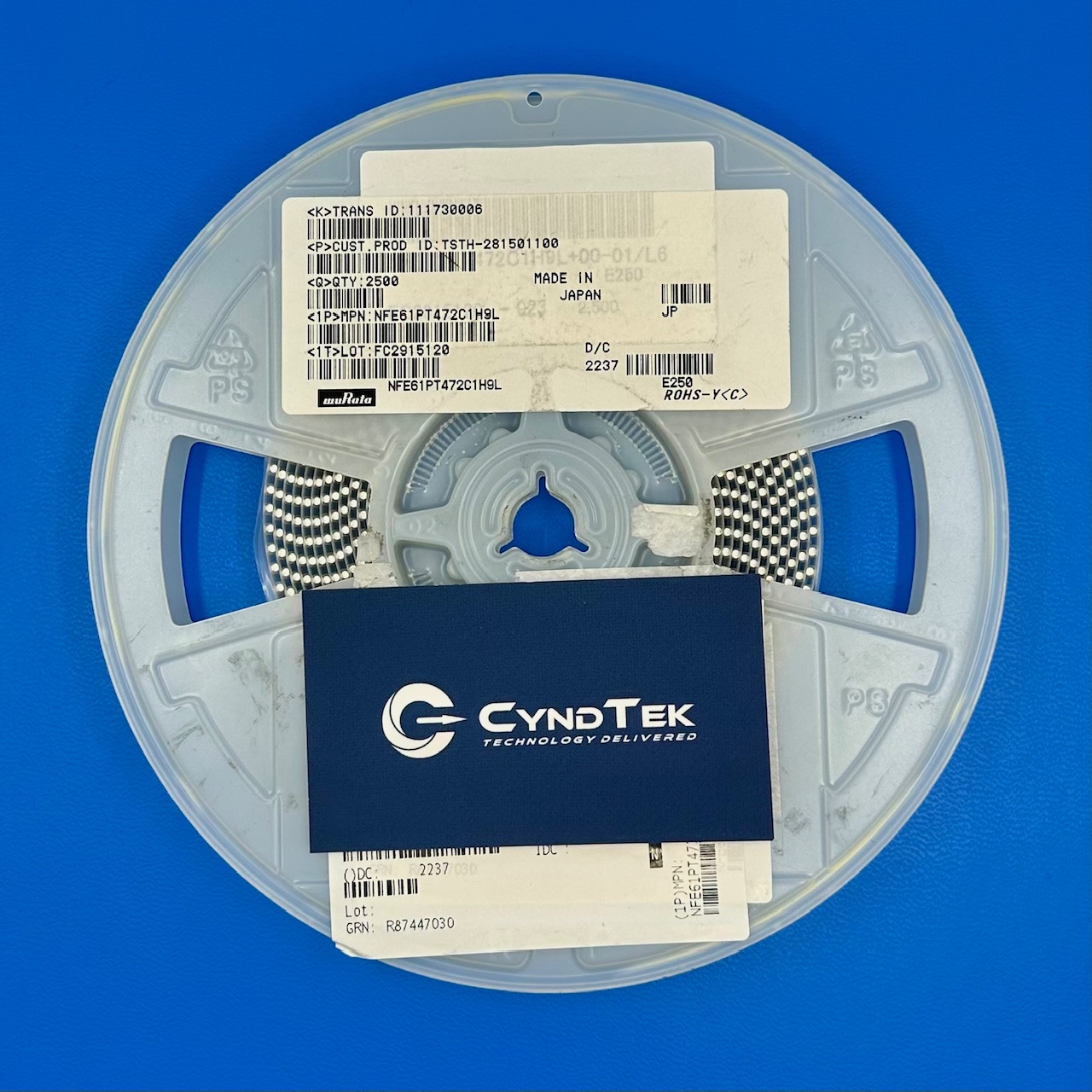

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2237

Availability: 1636 in stock

SKU TSX050G Category Brand:

NFE61PT472C1H9L Specifications

Manufacturer: Murata Electronics
Part Number: NFE61PT472C1H9L
Product Type: EMI Suppression Filter
Capacitance: 4700 pF
Voltage Rating: 50 V
Current Rating: 2 A
Tolerance: -20%, +80%
Package / Case: 2606 (6816 metric)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The NFE61PT472C1H9L is a chip EMIFIL® T-type circuit EMI suppression filter designed to attenuate high-frequency noise in electronic circuits. With a capacitance of 4700 pF and a voltage rating of 50 V, it effectively suppresses electromagnetic interference, ensuring signal integrity. The filter supports a current rating of up to 2 A, making it suitable for applications requiring moderate current flow. Its surface mount design in a 2606 (6816 metric) package allows for efficient integration into compact PCB layouts. Operating reliably within a temperature range of -40°C to +85°C, the NFE61PT472C1H9L maintains consistent performance across various environmental conditions. Compliance with RoHS standards underscores Murata’s commitment to environmental responsibility.

Applications

Noise suppression in power supply lines
EMI filtering in automotive electronics
Signal line noise attenuation
Consumer electronics
Industrial control systems

Product Overview

The NFE61PT472C1H9L from Murata Electronics is engineered to provide effective electromagnetic interference suppression in electronic circuits. Its T-type LC configuration enables efficient attenuation of high-frequency noise, enhancing the performance and reliability of electronic devices. The filter’s 4700 pF capacitance and 50 V voltage rating make it versatile for various applications, including power supply and signal line noise suppression. Its 2 A current rating accommodates moderate current applications without compromising performance. The compact 2606 (6816 metric) surface mount package facilitates seamless integration into densely populated PCBs, optimizing space utilization. Operating across a wide temperature range of -40°C to +85°C, the NFE61PT472C1H9L ensures stable performance in diverse environmental conditions. Adherence to RoHS compliance reflects Murata’s dedication to producing environmentally friendly components.
