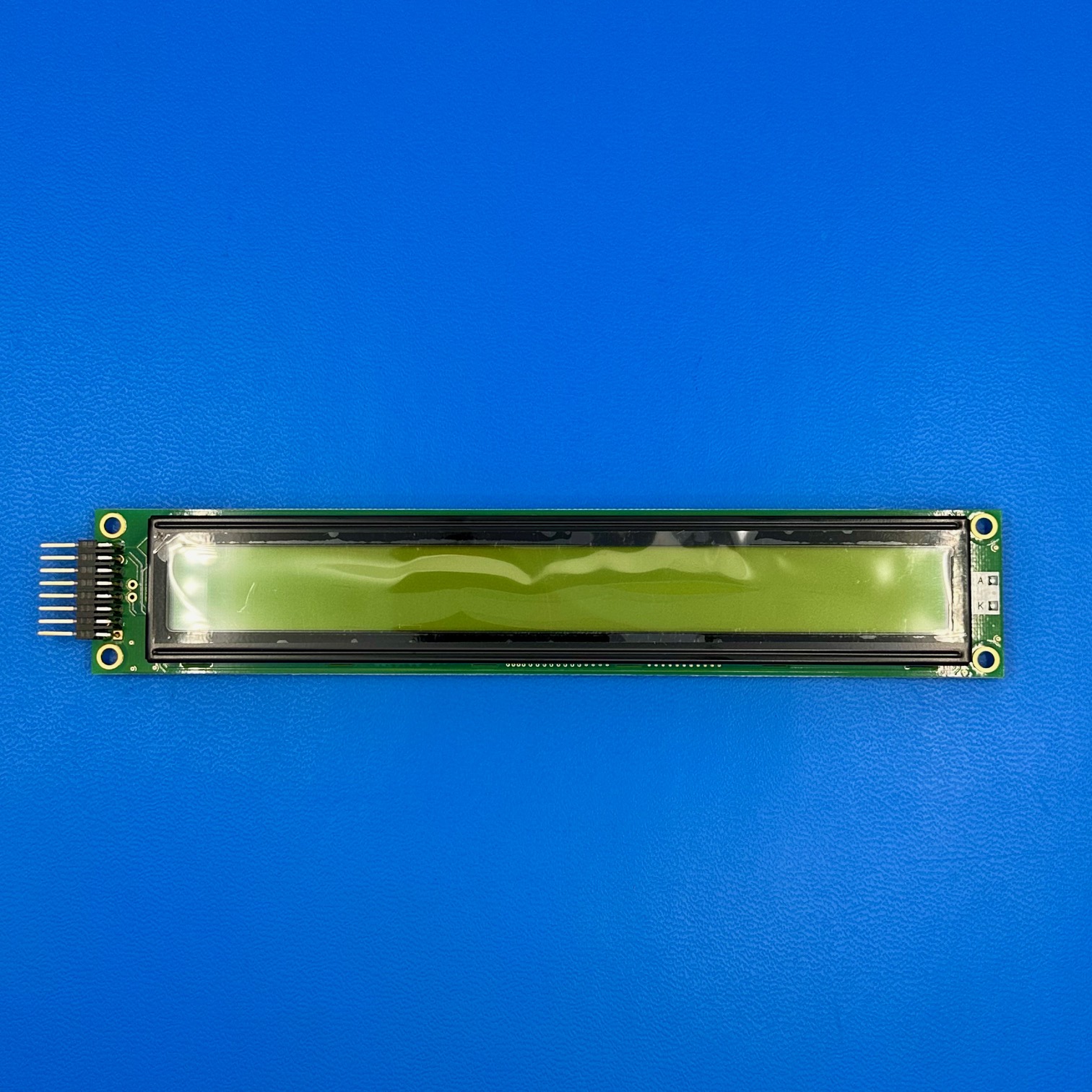

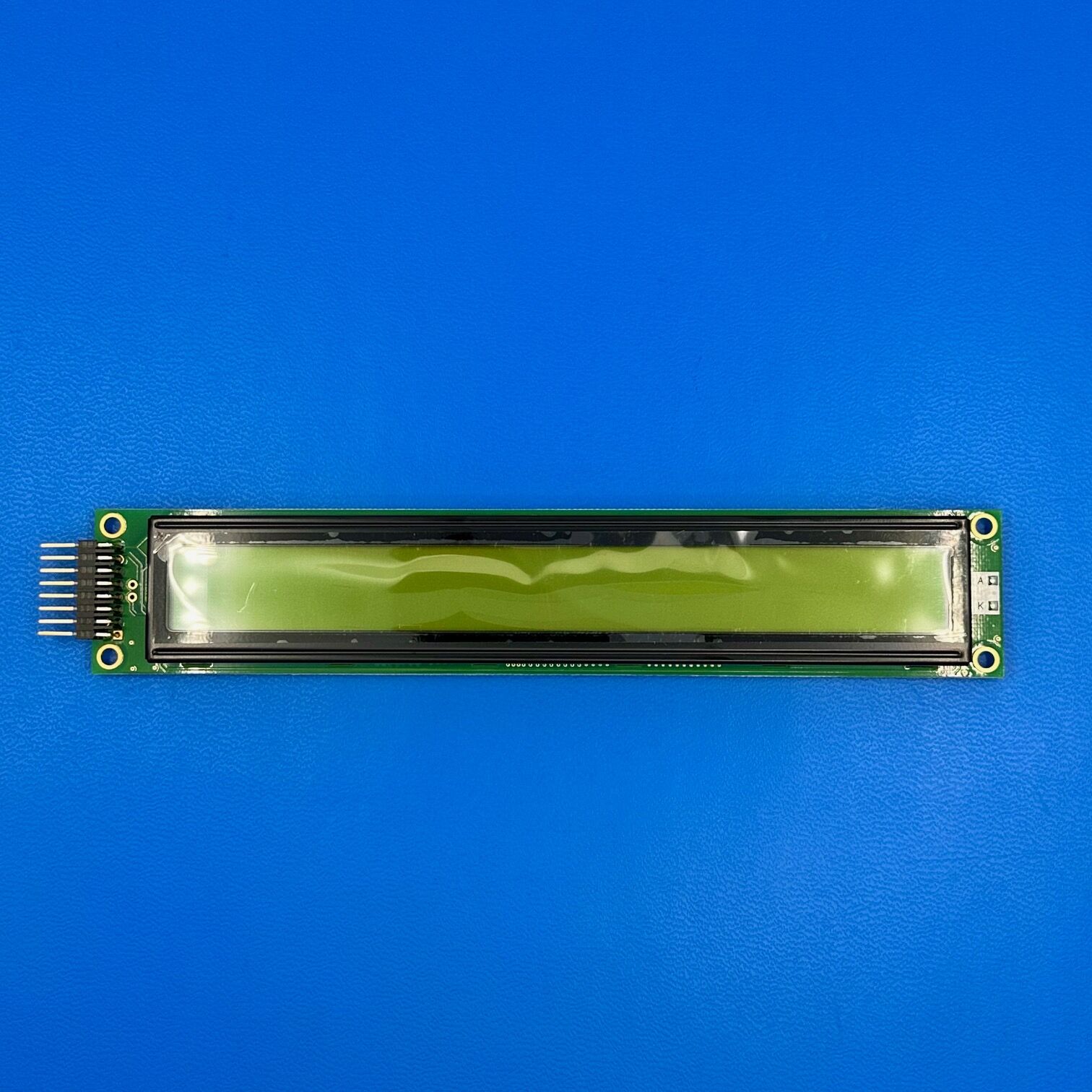

NHD-0240AZ-FL-YBW Specifications
Manufacturer: Newhaven Display
Part Number: NHD-0240AZ-FL-YBW
Product Type: LCD Character Display Module
Display Format: 40 x 2 characters
Character Format: 5 x 8 dots
Display Type: STN – Super-Twisted Nematic
Display Mode: Transflective
Character Size: 5.55mm (H) x 3.20mm (W)
Outline Dimensions: 182.00mm (L) x 33.50mm (W) x 13.50mm (H)
Viewing Area: 152.50mm (L) x 16.50mm (W)
Backlight: LED – Yellow/Green
Supply Voltage: 4.7V to 5.5V
Interface: Parallel
Controller Type: SPLC780D or ST7066U
Operating Temperature Range: -20°C to +70°C
RoHS Status: RoHS Compliant
Key Features
The NHD-0240AZ-FL-YBW is a high-quality LCD character display module designed for applications requiring clear and legible text output. Featuring a 40 x 2 character format with 5 x 8 dot matrices per character, it ensures sharp and readable text. The transflective STN technology provides excellent visibility in various lighting conditions, both indoors and outdoors. Equipped with a yellow/green LED backlight, this module enhances readability in low-light environments. Its wide operating temperature range and RoHS compliance make it suitable for diverse industrial and commercial applications.
Applications
Industrial control panels requiring clear character displays
Medical devices needing reliable data readouts
Test and measurement equipment with user interfaces
Point-of-sale systems displaying transaction information
Communication devices with status indicators
Product Overview
The NHD-0240AZ-FL-YBW from Newhaven Display is a versatile LCD module designed to deliver clear and legible character output across various applications. Its transflective display mode ensures readability in diverse lighting conditions, while the yellow/green LED backlight enhances visibility. The module’s wide operating temperature range and RoHS compliance make it suitable for use in demanding environments.
