NRS5030T4R7MMGJV

NRS5030T4R7MMGJV

$0.15

FIXED IND 4.7UH 2.6A 45.5MOHM SM JR
  • Manufacturer: Taiyo Yuden
  • Part Number: NRS5030T4R7MMGJV

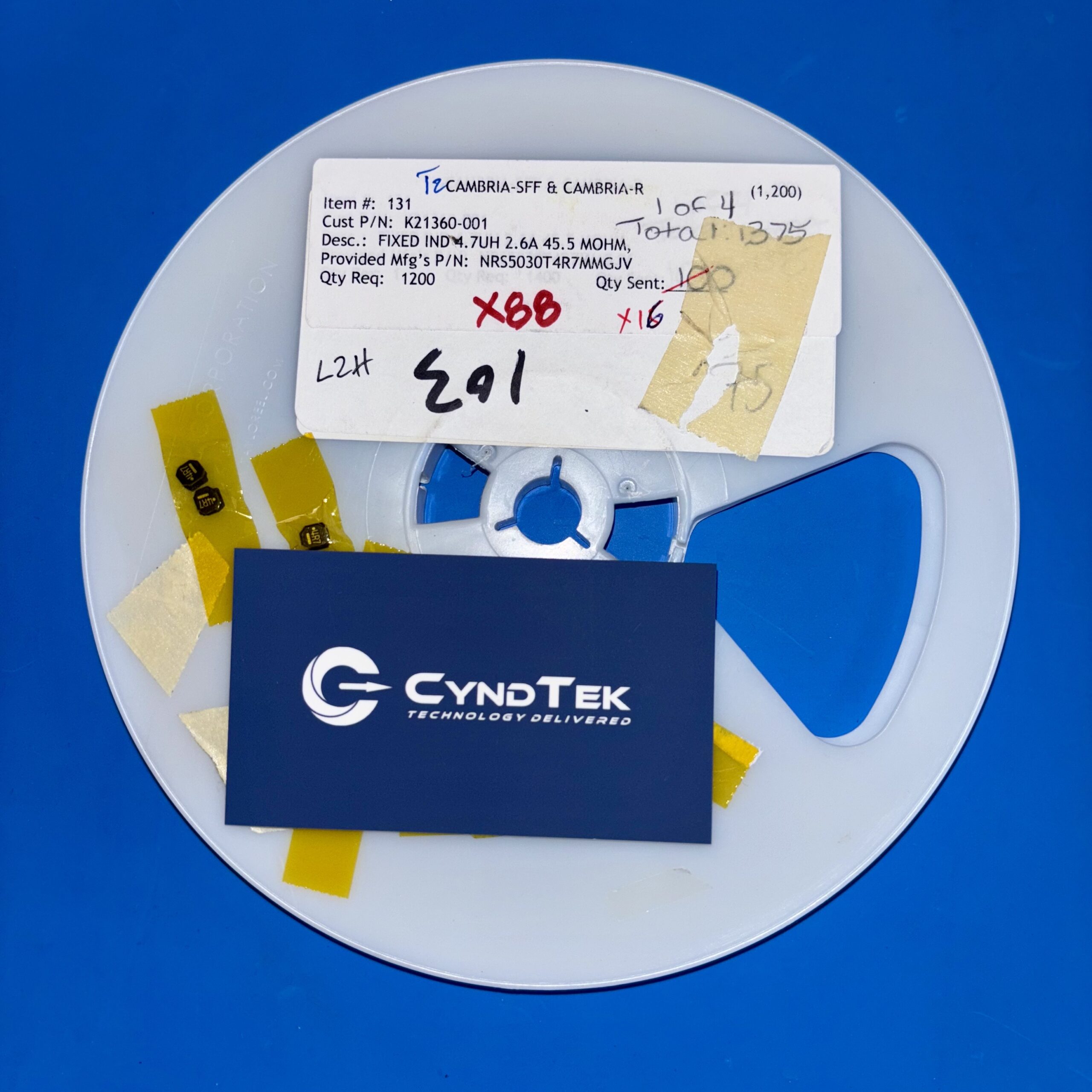

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 1901

Availability: 134 in stock

SKU PAC004C-13 Category Brand:

NRS5030T4R7MMGJV Specifications

Manufacturer: Taiyo Yuden
Part Type: Power Inductor
Inductance: 4.7 µH
Current Rating: 2.6 A (Saturation), 2.3 A (Temperature Rise)
DC Resistance (DCR): 95 mΩ (typical)
Shielding: Magnetic Shielded
Tolerance: ±20%
Package Dimensions: 5.2 mm × 5.2 mm × 3.0 mm
Core Material: Ferrite
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +105°C
Self-Resonant Frequency: 16 MHz (typical)
Applications: Power circuits, DC-DC converters
RoHS Compliant: Yes
High Reliability: Yes
Low Profile: Yes

Key Features

The NRS5030T4R7MMGJV is a compact and efficient power inductor engineered for use in high-performance power management systems. Its magnetic shielding reduces electromagnetic interference, which helps maintain signal integrity in densely populated boards. With a saturation current rating of 2.6 A and low DC resistance, it supports efficient power conversion with minimal heat buildup. This surface-mount inductor also offers excellent reliability and a small footprint, making it ideal for space-sensitive applications.

Applications

DC-DC converter modules
Smartphones and tablets
Wearable devices
Solid-state drives
LCD backlight drivers
Industrial control systems
Portable medical equipment
Bluetooth and wireless communication modules
Embedded computing
Battery-operated electronics

Product Overview

The NRS5030T4R7MMGJV delivers strong performance in compact power circuits by balancing high inductance with low core losses and excellent thermal behavior. Its ferrite core and magnetic shielding help minimize energy losses and suppress EMI. Essential in mobile and embedded environments. With a footprint just over 5 mm squared, it’s designed for surface-mount applications where board space is limited. Furthermore, its 4.7 µH inductance makes it suitable for use in energy storage and ripple filtering applications. Applies across a wide range of electronic designs.
