O.90.805326-LF

O.90.805326-LF

$33.00

LVCMOS OVCXO 10MHZ OSCILLATOR 20PPB
  • Manufacturer: KVG
  • Part Number: O.90.805326-LF

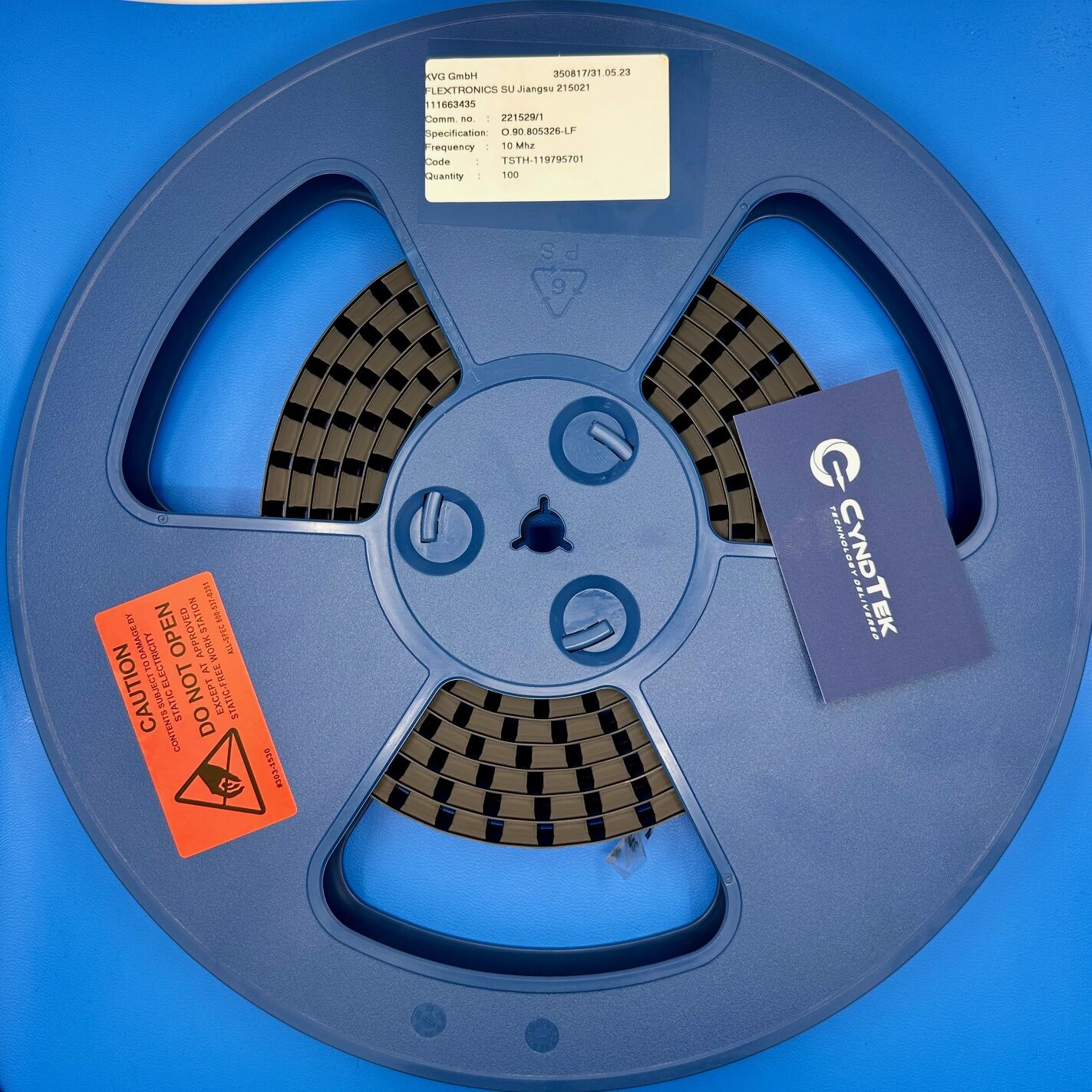

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2322

Availability: 100 in stock

SKU TSX027C Category Brand:

O.90.805326-LF Specifications

Manufacturer: KVG Quartz Crystal Technology GmbH
Part Number: O.90.805326-LF
Product Type: Oven-Controlled Voltage-Controlled Crystal Oscillator (OVCXO)
Output Type: LVCMOS
Nominal Frequency: 10 MHz
Frequency Stability: ±20 ppb
Phase Noise: Low (specific values not provided)
Supply Voltage: 3.3V (typical)
Control Voltage Range: 0 to 3.3V
Load Capacitance: 15 pF (nominal)
Aging (First Year): ±0.2 ppm (typical)
Operating Temperature Range: -40°C to +85°C
Storage Temperature Range: -55°C to +125°C
Warm-up Time: < 2 minutes (typical to ±100 ppb of final frequency)
Output Load: 15 pF
Start-up Time: ≤ 5 ms
Package / Case: Compact metal package (exact dimensions not confirmed)
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The O.90.805326-LF is a high-precision OVCXO oscillator designed for performance-critical applications requiring tight frequency accuracy and low phase noise. It delivers a stable 10 MHz LVCMOS signal with ±20 ppb frequency stability over a wide temperature range. The internal oven control ensures minimal drift and fast warm-up performance. Additionally, the oscillator supports voltage-controlled tuning, allowing precise frequency adjustment. Its low phase noise characteristics make it ideal for timing-sensitive applications in communications, instrumentation, and reference generation. With a compact, hermetically sealed package and RoHS compliance, it provides both reliability and environmental responsibility.

Applications

Telecommunications systems
Precision test and measurement equipment
Timing reference in networking hardware
Satellite and defense systems
Industrial control platforms
Instrumentation requiring low jitter performance

Product Overview

The O.90.805326-LF from KVG is engineered to meet the stringent demands of precision timing applications. It combines the stability of oven-controlled technology with the flexibility of voltage-controlled tuning, offering excellent phase noise and long-term aging characteristics. Furthermore, it supports LVCMOS output for compatibility with standard digital systems. The oscillator is optimized for applications where frequency accuracy and thermal stability are essential. Its short warm-up time and fast start-up help reduce latency in time-critical environments. As a result, the device performs reliably even in rugged operating conditions, supporting mission-critical systems in telecom, aerospace, and precision instrumentation.
