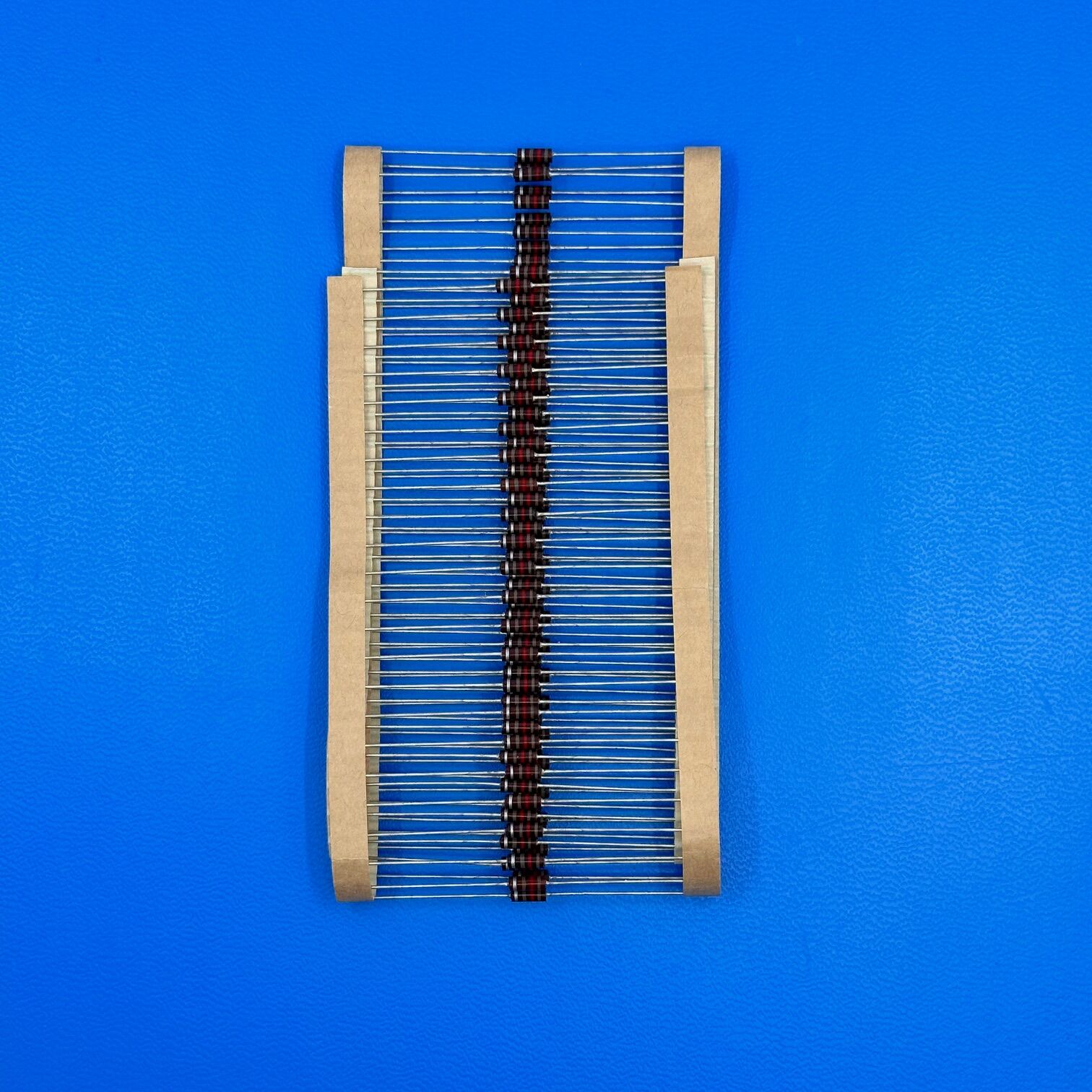

OD121KE

OD121KE Specifications

Manufacturer: Ohmite
Part Number: OD121KE
Product Type: Carbon Composition Resistor
Resistance: 120 Ohms
Tolerance: ±10%
Power Rating: 0.25W (1/4W)
Composition: Carbon Composition
Features: Pulse Withstanding
Operating Temperature Range: Not specified
Package / Case: Axial
Size / Dimension: 0.098″ Diameter x 0.276″ Length (2.50mm x 7.00mm)
Maximum Voltage: 250V
Dielectric Strength: 500V
Lead Diameter: 0.024″ (0.60mm)
Lead Length: 1.135″ ±0.12 (28.83mm ±3)
Packaging: Bulk
Series: Little Demon® OD
RoHS Compliance: Not specified

Key Features

• High surge capability for pulse load applications.
• Rugged molded insulation for high dielectric strength and durability.
• Compact axial design for efficient PCB layout.
• Low noise operation due to carbon composition construction.
• Stable performance across various temperature ranges.

Applications

• Pulse load circuits requiring high surge resistance.
• Power supply circuits needing stable resistance under varying conditions.
• Industrial equipment demanding robust resistor performance.
• Automotive electronics exposed to harsh operating conditions.
• Consumer electronics requiring reliable resistor components.

Product Overview

The OD121KE is a 120-ohm carbon composition resistor designed for high surge capability and stable performance in pulse load applications. With a power rating of 0.25W and a tolerance of ±10%, this resistor provides reliability in various electronic circuits. Its compact axial package, along with a molded phenolic body, ensures durability and efficient PCB integration. This resistor is suitable for industrial, automotive, and consumer electronics applications where robustness and reliability are critical.
