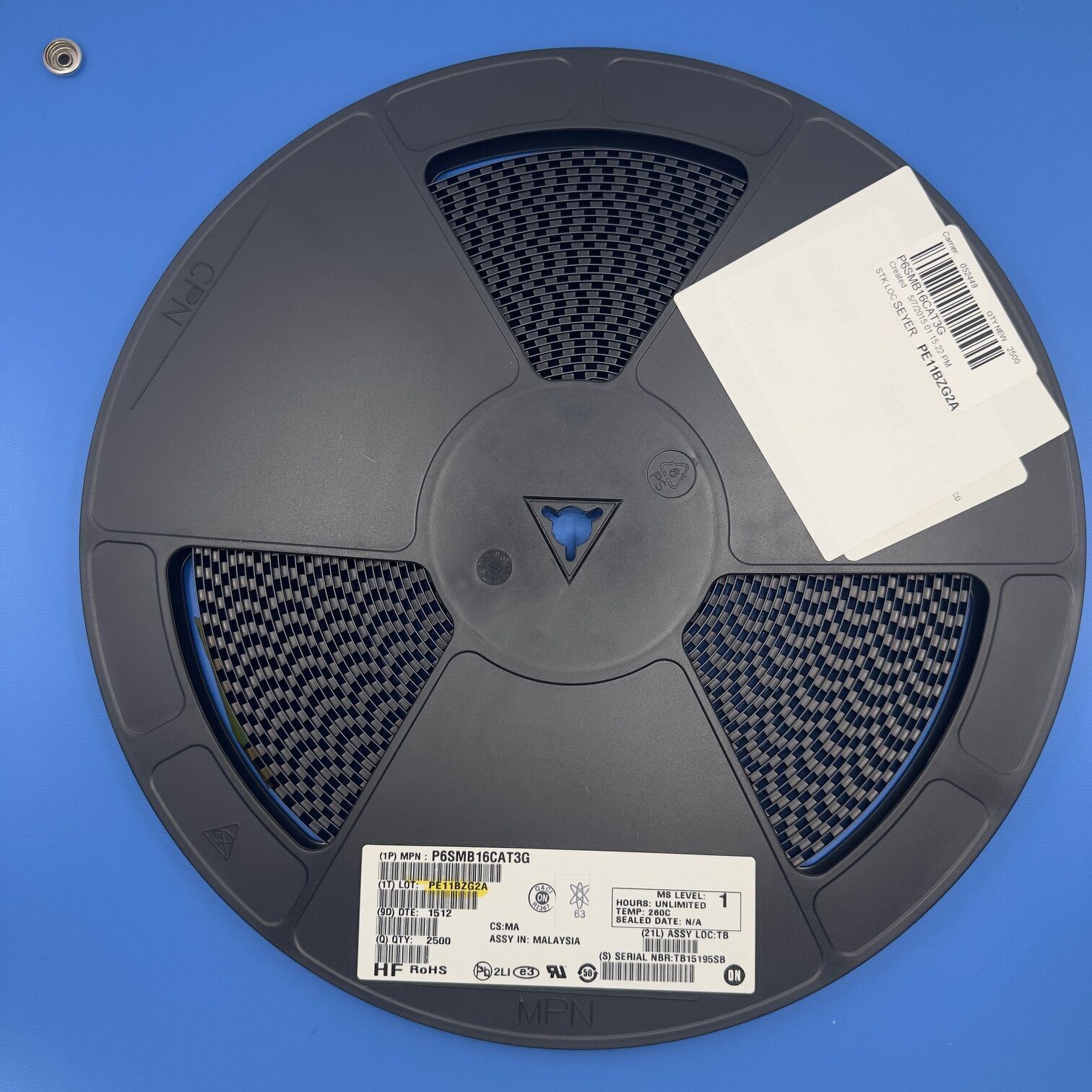

P6SMB16CAT3G Specifications
Manufacturer: ON Semiconductor
Part Number: P6SMB16CAT3G
Product Type: Transient Voltage Suppression Diode
Diode Type: Bidirectional TVS
Stand-Off Voltage: 13.6 V
Breakdown Voltage: Approximately 16 V
Clamping Voltage: 22.5 V
Peak Pulse Power: 600 W
Package Type: SMB
Mounting Type: Surface Mount
Response Time: Fast Avalanche Protection
Operating Temperature Range: -55°C to +150°C
Applications Class: Transient Protection Devices
Packaging: Factory
Key Features
The P6SMB16CAT3G is a bidirectional transient voltage suppression diode designed to protect electronic circuits from voltage spikes and transient surges. It provides a working stand-off voltage of 13.6 volts and clamps surge events to approximately 22.5 volts. Additionally, the device supports peak pulse power up to 600 watts which allows it to absorb high energy transient events. Because TVS diodes respond rapidly to overvoltage conditions, engineers frequently use them to protect sensitive semiconductor devices. As a result, the P6SMB16CAT3G helps improve system reliability in power and signal protection circuits.
Applications
Power supply surge protection
Communication line protection
Industrial control electronics
Embedded system power inputs
Automotive electronics protection
Telecommunication equipment surge suppression
Data line protection circuits
Consumer electronic power protection
Product Overview
The P6SMB16CAT3G from ON Semiconductor provides reliable transient voltage suppression for electronic systems exposed to voltage spikes. First, the bidirectional design allows the diode to protect circuits from both positive and negative surge events.
Additionally, the avalanche protection structure allows the device to clamp excessive voltage levels quickly. Because transient surges from switching loads or lightning events can damage semiconductor components, surge protection devices remain essential in many electronic systems.
Moreover, the SMB surface mount package supports compact circuit layouts and automated assembly. Engineers frequently use TVS diodes such as the P6SMB series in industrial electronics, communication equipment, and power regulation circuits.
Therefore, the P6SMB16CAT3G remains a dependable protection component for safeguarding electronic circuits against damaging transient voltage events.
