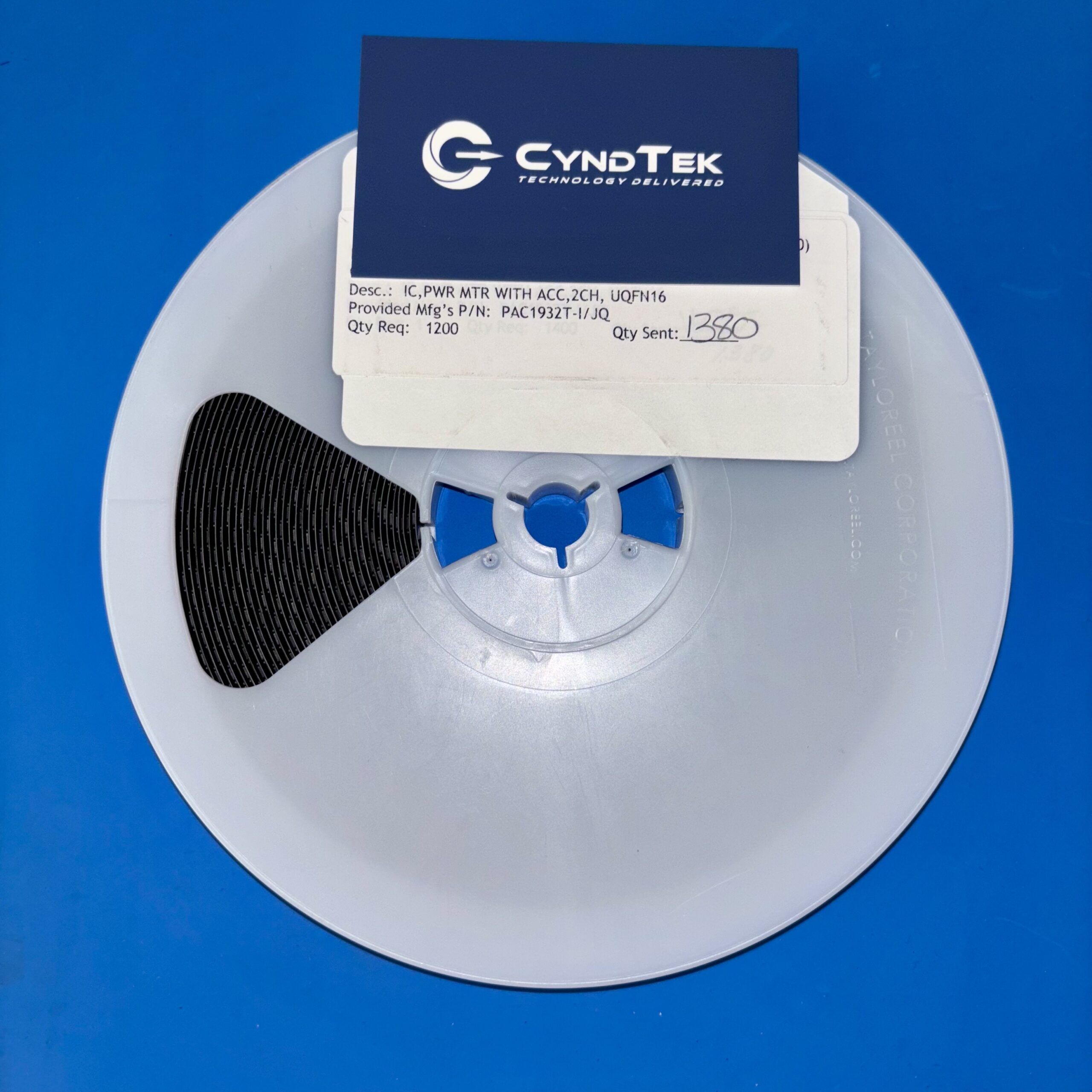

PAC1932T-I/JQ

PAC1932T-I/JQ Specifications:

• Manufacturer: Microchip Technology
• Function: Dual High-Side Current Sensor with Power Calculation
• Number of Channels: 2
• Input Voltage Range: 2.7V to 5.5V
• Bus Voltage Range: 0V to 32V
• Current Sense Voltage Range: ±100mV (full-scale)
• Resolution: 16-bit for both voltage and current measurements
• Accuracy: ±1%
• Operating Temperature Range: -40°C to +85°C
• Communication Interface: I²C/SMBus
• Package / Case: 16-UQFN (4x4mm)
• Mounting Type: Surface Mount
• Features: Integrated accumulator for energy measurement, bi-directional current sensing, low input offset voltage

The PAC1932T-I/JQ is a dual high-side current sensor from Microchip Technology, designed to provide accurate power monitoring for DC power systems. It supports a wide bus voltage range from 0V to 32V and operates with an input voltage between 2.7V and 5.5V. The device offers a full-scale current sense voltage range of ±100mV, enabling precise bi-directional current measurements with 16-bit resolution. An integrated accumulator facilitates energy measurement over time, making it suitable for applications requiring detailed power consumption analysis. The PAC1932T-I/JQ communicates via an I²C/SMBus interface, allowing seamless integration into various system architectures. Housed in a compact 16-UQFN package measuring 4x4mm, it is ideal for space-constrained designs. The device operates efficiently across a temperature range of -40°C to +85°C, ensuring reliability in diverse environmental conditions.
