PCM2707CPJTR

PCM2707CPJTR

$8.00

IC AUDIO 16BIT 48K 32TQFP
  • Manufacturer: Texas Instruments
  • Part Number: PCM2707CPJTR

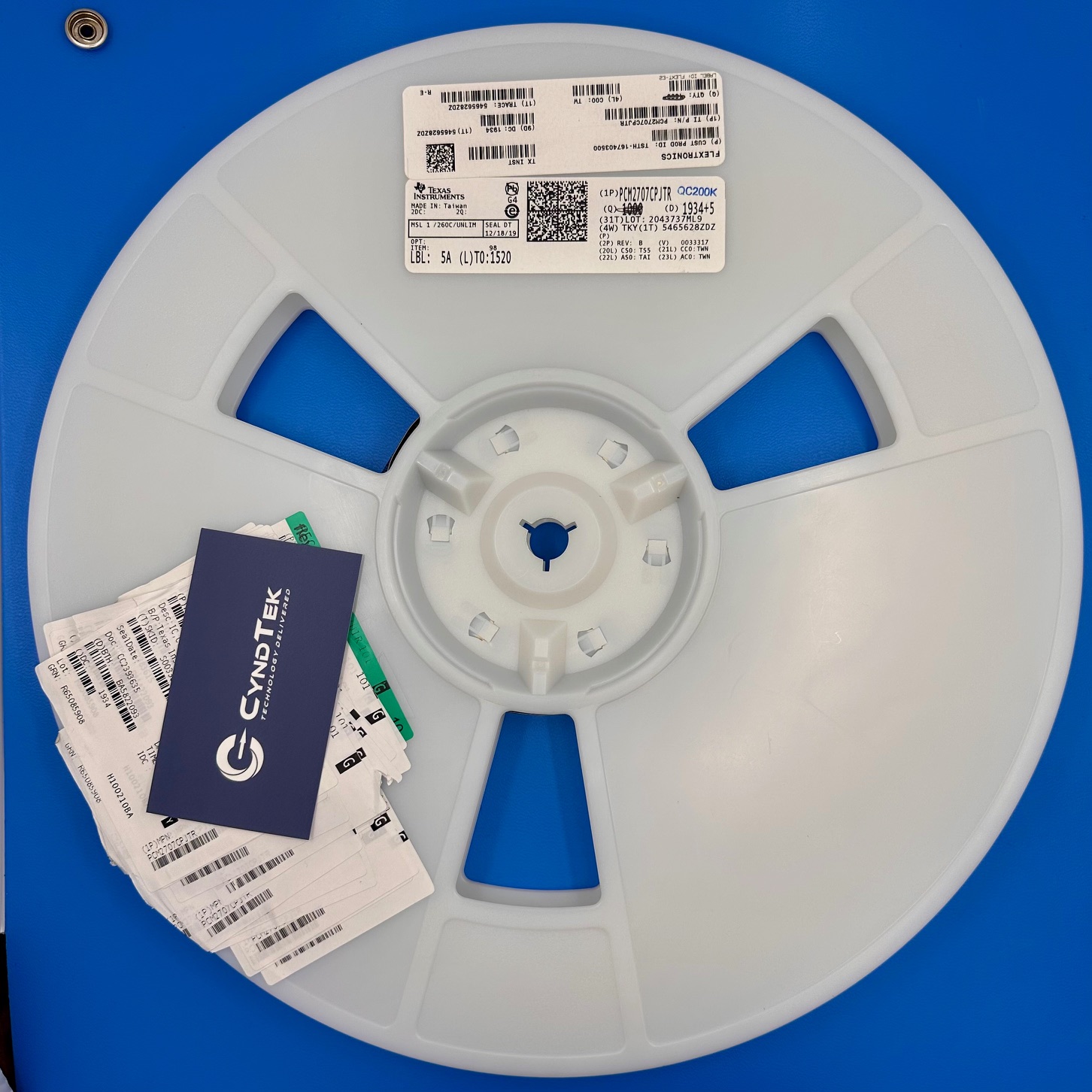

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 1934

Availability: 40 in stock

SKU TSX065D Category Brand:

PCM2707CPJTR Specifications

Manufacturer: Texas Instruments
Part Number: PCM2707CPJTR
Product Type: Stereo Audio Digital-to-Analog Converter (DAC) with USB Interface
Number of Channels: 2 (Stereo)
Resolution: 16-bit
Sampling Rates Supported: 32 kHz, 44.1 kHz, 48 kHz
Data Interface: USB 1.1, SPI
Voltage Supply: 3.0 V to 3.6 V (Analog and Digital), 4.35 V to 5.25 V (VBUS)
Operating Temperature Range: -40°C to +125°C
Mounting Type: Surface Mount
Package / Case: 32-TQFP (7 mm × 7 mm)
RoHS Status: RoHS Compliant

Key Features

The PCM2707CPJTR from Texas Instruments is a stereo audio DAC that integrates a USB interface, facilitating seamless digital audio playback from USB-enabled devices. It supports 16-bit resolution with sampling rates of 32 kHz, 44.1 kHz, and 48 kHz, ensuring high-fidelity audio reproduction. The device features an adaptive isochronous transfer mode for playback eliminating the need for additional drivers. It includes a single-ended headphone output capable of delivering 12 mW into a 32 Ω load, suitable for direct headphone drive. Additionally, the PCM2707CPJTR offers an S/PDIF output, providing flexibility for digital audio connections. The device operates within a supply voltage range of 3.0 V to 3.6 V for analog and digital sections, and 4.35 V to 5.25 V for VBUS, accommodating both bus-powered and self-powered configurations. Its compact 32-TQFP package allows for efficient integration into space-constrained designs.

Applications

USB audio playback devices.
Digital audio conversion in consumer electronics.
PC audio interfaces.
Portable audio devices.
USB-powered speakers.

Product Overview

Texas Instruments’ PCM2707CPJTR is designed to provide high-quality stereo audio conversion with USB connectivity, making it ideal for a wide range of audio applications. Its integration of USB interface and DAC functions simplifies design and reduces component count, offering a cost-effective solution for digital audio playback. The device’s support for standard audio sampling rates and 16-bit resolution ensures compatibility with various audio formats. Thus delivering clear and accurate sound reproduction. The inclusion of both headphone and S/PDIF outputs provides versatility in audio output options. Operating over a broad temperature range and supporting multiple power supply configurations, the PCM2707CPJTR is suitable for both portable and stationary audio applications. Its compliance with RoHS standards underscores its environmental responsibility.
