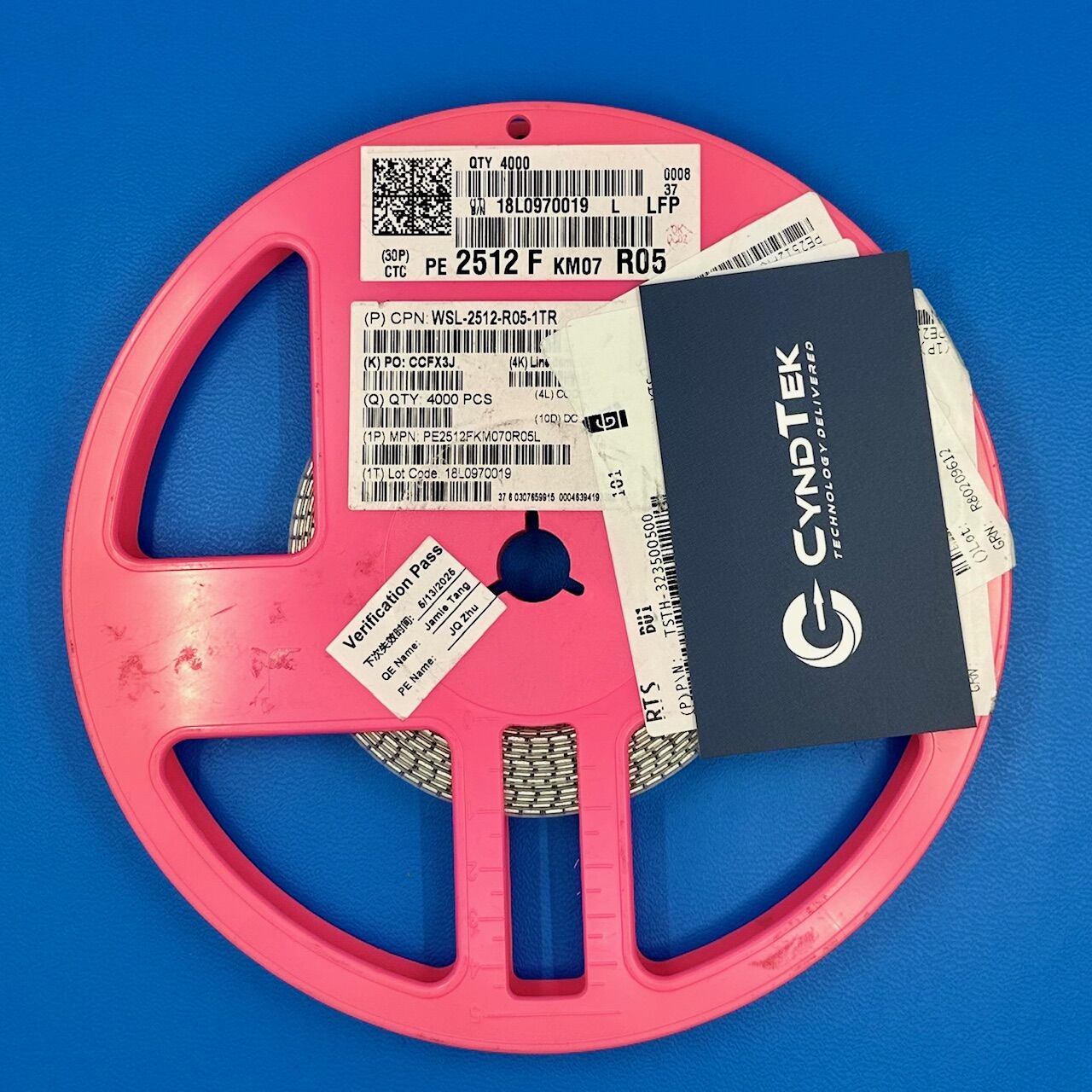

PE2512FKM070R05L Specifications
Manufacturer: Yageo
Part Type: Current Sense Resistor
Resistance Value: 0.05 Ω (50 mΩ)
Tolerance: ±1%
Power Rating: 1 W
Package Size: 2512 (6.35 mm × 3.18 mm)
Temperature Coefficient: ±75 ppm/°C
Operating Temperature Range: -55°C to +170°C
Automotive Qualification: AEC-Q200
Mounting Type: Surface Mount
Construction: Thick Film
Rated Voltage: 100 V
RoHS Compliant: Yes
Dimensions: 6.35 mm length × 3.18 mm width × 0.55 mm height
Key Features
The PE2512FKM070R05L is a precision current sense resistor designed for accurate measurement in automotive and industrial systems. With a low resistance of 50 mΩ and ±1% tolerance, it ensures dependable current monitoring. Its AEC-Q200 qualification makes it reliable for automotive-grade applications. Additionally, the resistor provides excellent thermal stability with a ±75 ppm/°C temperature coefficient. Compact 2512 packaging and thick film construction allow for efficient board placement and rugged performance in demanding environments.
Applications
Battery management systems
DC-DC converters
Automotive motor control units
Power inverters for renewable energy
Industrial robotics controllers
Server and data center power supplies
LED lighting power regulation
Consumer electronics charging circuits
Smart meters and energy monitors
Telecommunication power systems
Product Overview
The Yageo PE2512FKM070R05L is engineered for modern power management designs requiring accuracy, stability, and long-term reliability. Its robust 2512 surface-mount package supports compact PCB layouts while providing a 1 W power rating suitable for high-current applications. Moreover, the AEC-Q200 qualification guarantees performance under automotive stress testing, making it an excellent choice for vehicles and other mission-critical environments. With its low resistance value and tight tolerance, the component enables efficient energy measurement and regulation.
