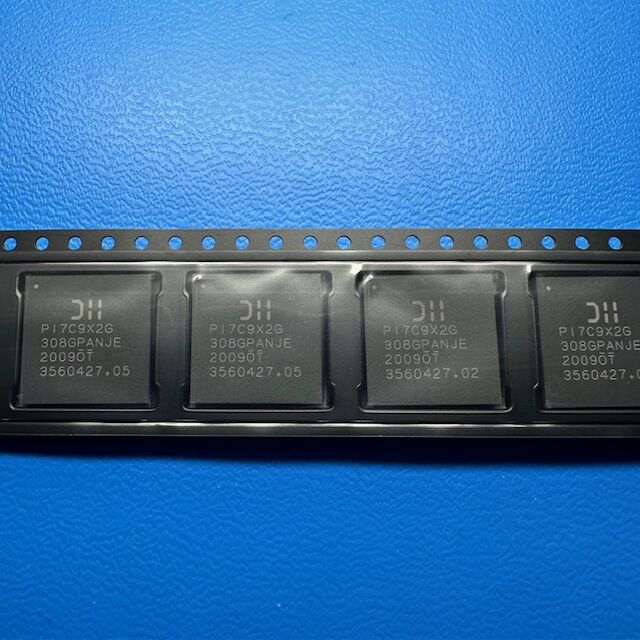

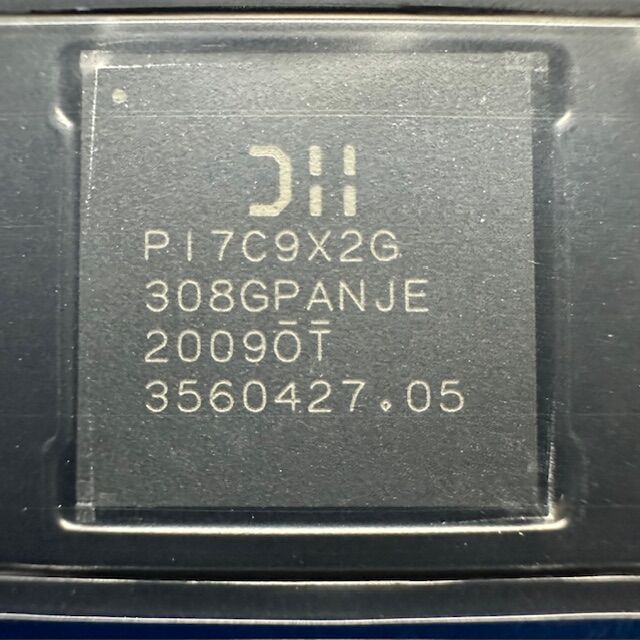

PI7C9X2G308GPANJEX

PI7C9X2G308GPANJEX Specifications

Manufacturer: Pericom (now part of Diodes Incorporated)
Part Number: PI7C9X2G308GPANJEX
Product Type: PCIe Switch
Interface: PCI Express Gen2
Number of Ports: 8
Voltage Supply: 3.3V, 1.8V
Operating Temperature Range: 0°C to +70°C
Mounting Type: Surface Mount
Package / Case: 100-QFN
Maximum Data Rate: 5.0 GT/s
Power Dissipation: 500 mW
Bus Interface: PCI Express 2.0
Port Configuration: x8, x4, x2, x1
Compliance: RoHS Compliant
Width: 10mm
Length: 10mm
Height: 0.9mm

Key Features

• Supports PCI Express Gen2 (5.0 GT/s) for high-speed data transfer.
• 8-port configuration allows flexible connectivity for high-performance applications.
• Low power consumption of 500 mW, ideal for power-sensitive designs.
• Configurable lanes (x8, x4, x2, x1) for scalable bandwidth options.
• Compatible with PCI Express 2.0 devices, ensuring broad compatibility.
• Surface-mount package (100-QFN) allows for compact PCB designs.

Applications

• High-performance computing systems and workstations.
• Network equipment, including switches and routers requiring high-speed interconnects.
• Storage systems, such as RAID controllers and storage area networks (SAN).
• Graphics and video processing systems that demand high bandwidth.
• Consumer electronics and embedded systems needing high-speed data transfer.
• Servers and data centers with high-demand PCIe connectivity.

Product Overview

The PI7C9X2G308GPANJEX from Pericom is an 8-port PCIe switch designed for high-performance applications requiring high-speed data transfer. Supporting PCI Express Gen2, the device ensures 5.0 GT/s data rates, making it an ideal choice for servers, storage systems, network devices, and workstations. The switch is configurable with x8, x4, x2, or x1 lane configurations, offering flexible bandwidth options for varying system needs. With low power consumption (500 mW) and compatibility with PCI Express 2.0, this switch is a reliable, energy-efficient solution for expanding PCIe interconnectivity in data-intensive systems.
