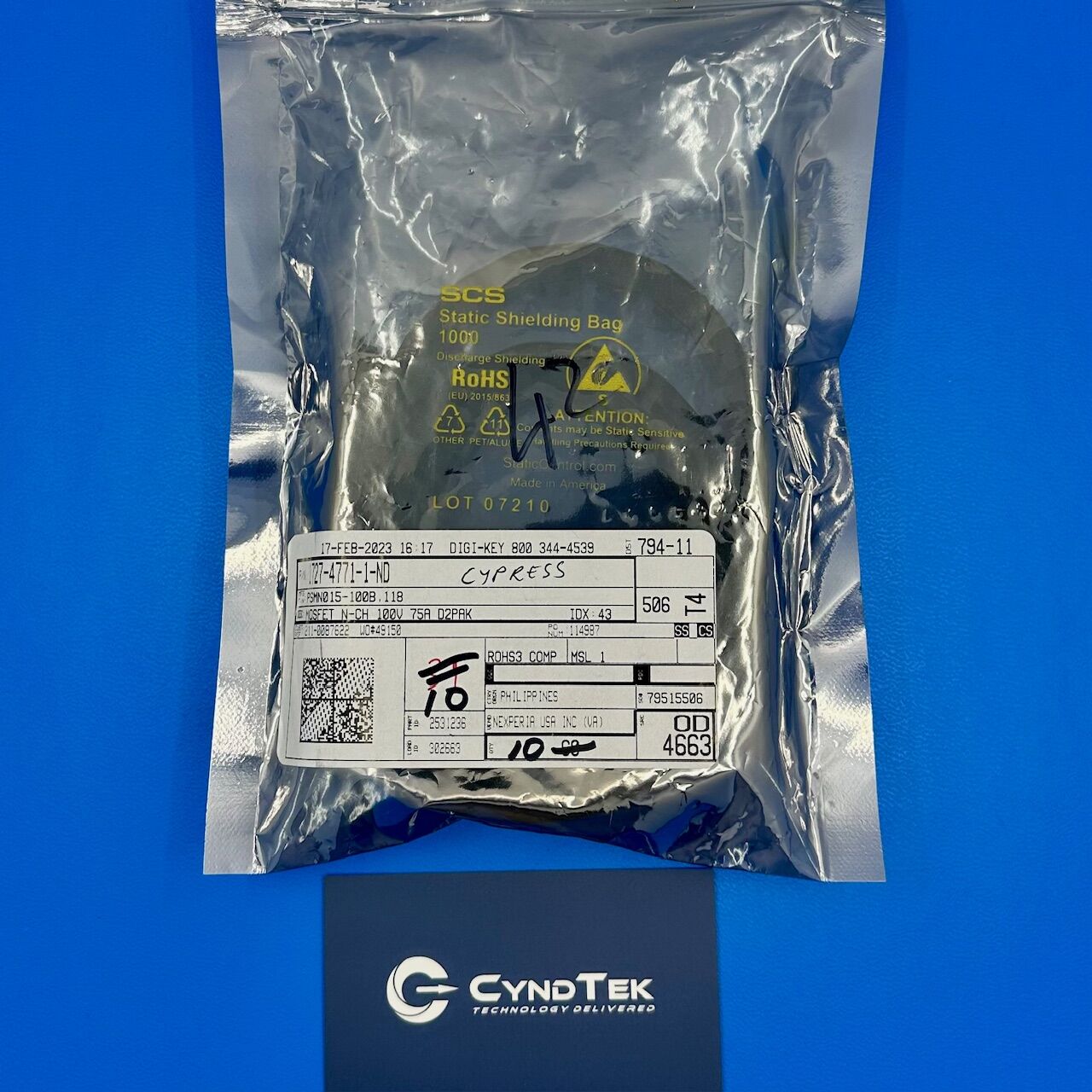

PSMN015-100B Specifications
Manufacturer: Nexperia
Product Category: Semiconductor
Device Type: N-Channel MOSFET Power Transistor
Drain-Source Voltage (Vdss): 100 V
Continuous Drain Current: 75 A (Tc)
Total Power Dissipation: 300 W (Tc)
RDS(on) (Typ): 12 mΩ @ VGS = 10 V
Gate-Source Threshold Voltage (VGS(th)): ~4 V
Total Gate Charge (Qg): ~90 nC
Package / Case: D2PAK (TO-263)
Mounting Type: Surface Mount (SMT)
Operating Temperature Range: –55 °C to +175 °C
Category: Semiconductor
Key Features:
Moreover, the PSMN015-100B is an N-channel enhancement-mode MOSFET with low on-state resistance that improves conduction efficiency. Additionally, it supports high continuous current and power dissipation for demanding power conversion tasks. Also, the robust gate charge characteristics help maintain responsive switching performance. Furthermore, its rugged D2PAK package enhances thermal and mechanical handling in board assemblies. Finally, the wide operating temperature range supports use across varied environments.
Applications:
DC-DC converters
Switched-mode power supplies
Motor drive controllers
Power management modules
Industrial power systems
Product Overview:
The PSMN015-100B from Nexperia is a high-current, low-RDS(on) N-channel MOSFET designed for robust power switching and conversion. Consequently, it handles significant current and voltage levels, which make it suitable for power supply and motor control applications. In addition, its low on-state resistance reduces conduction losses and helps improve efficiency. Also, the high total power dissipation rating supports heavy-load environments. Furthermore, the D2PAK surface mount package ensures reliable assembly and thermal performance. Therefore, designers can use this device in demanding systems where dependable power switching is critical. Moreover, its broad operating temperature range contributes to stability in industrial, consumer, and communications designs.
