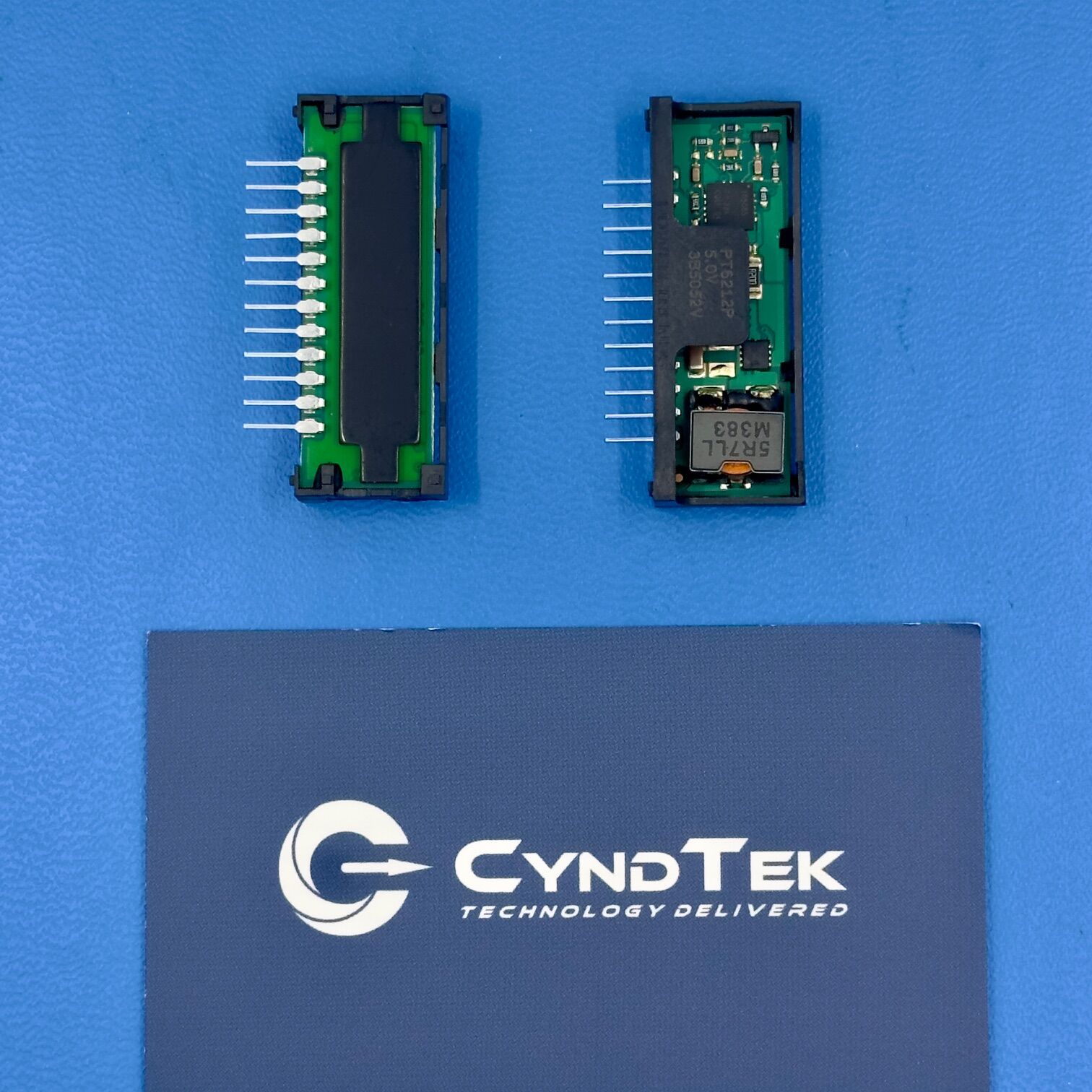

PT6212P Specifications
Manufacturer: Texas Instruments
Part Number: PT6212P
Product Type: DC-DC Switching Regulator Module
Output Voltage: 5 V
Output Current: 2 A
Input Voltage Range: 4.5 V to 18 V
Number of Outputs: 1
Efficiency: High Efficiency Switching Regulator
Package Type: 12-Pin SIP Module
Mounting Type: Through Hole
Topology: Step Down Switching Regulator
Operating Temperature Range: -40°C to +85°C
Protection Features: Overcurrent and Thermal Protection
Applications Class: Embedded Power Modules
Packaging: Factory
Key Features
The PT6212P is a compact DC-DC switching regulator module designed to provide a stable 5 volt output for embedded electronic systems. It supports output currents up to 2 amps while maintaining efficient switching regulator performance. Additionally, the module integrates the switching controller and power components into a single SIP package. Because this design reduces the need for external components, engineers can simplify power supply layouts. As a result, the PT6212P is widely used in embedded electronics and industrial control equipment.
Applications
Embedded processor power supplies
Industrial control electronics
Communication equipment power systems
Instrumentation power regulation
Data acquisition systems
Industrial automation controllers
Embedded development platforms
Power regulation for digital electronics
Product Overview
The PT6212P from Texas Instruments provides a convenient DC-DC conversion solution for systems that require regulated 5 volt output power. First, the module integrates switching regulator circuitry and power components into a compact 12-pin SIP format. This integration simplifies power supply design and reduces development time.
Additionally, the switching regulator architecture supports efficient voltage conversion while delivering up to 2 amps of output current. Because switching regulators generate less heat than many linear regulators, they are well suited for systems that require efficient power delivery.
Moreover, the through-hole SIP package allows easy integration into prototype boards and legacy electronic equipment. This feature makes the module useful in industrial electronics, instrumentation hardware, and embedded control systems.
Therefore, engineers frequently select the PT6212P when they require a reliable and compact power module for embedded electronic designs.
