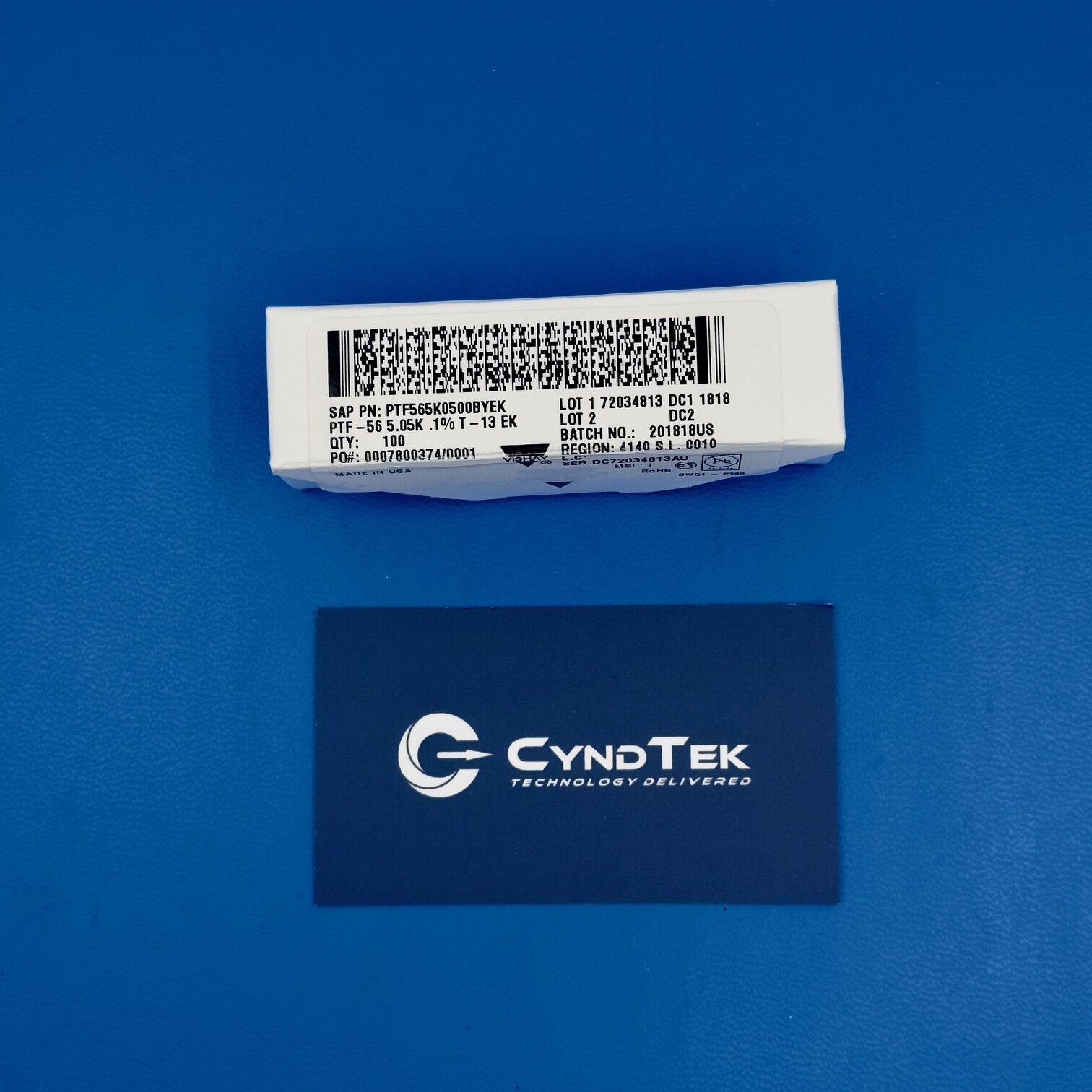

PTF565K0500BYEK Specifications
Manufacturer: Vishay
Part Number: PTF565K0500BYEK
Product Type: Precision Thin Film Resistor
Resistance Value: 5.05 kΩ
Tolerance: ±0.1%
Power Rating: 0.125 W
Resistor Technology: Thin Film
Temperature Coefficient: ±5 ppm/°C
Resistor Series: PTF56 Precision Series
Mounting Type: Through Hole
Lead Style: Axial Lead
Operating Temperature Range: -55°C to +155°C
Application Class: Precision Instrumentation Electronics
Packaging: Factory
Key Features
The PTF565K0500BYEK is a precision thin film resistor engineered for high accuracy analog and measurement circuits. It offers a resistance value of 5.05 kΩ with a tight ±0.1% tolerance for consistent electrical performance. Additionally, the thin film technology provides superior long-term stability compared to standard resistor constructions. The device features a low temperature coefficient of ±5 ppm/°C, which helps maintain resistance accuracy across varying operating conditions. Because Vishay’s PTF56 series is designed for precision applications, the resistor supports dependable performance in calibration and instrumentation systems. As a result, it integrates effectively into circuits requiring accurate resistance values and minimal drift over time.
Applications
Precision instrumentation electronics
Analog signal conditioning circuits
Measurement and calibration equipment
Industrial process control systems
Data acquisition hardware
Laboratory electronics
Precision voltage divider networks
High stability analog reference circuits
Product Overview
The PTF565K0500BYEK from Vishay provides stable and accurate resistance control for demanding electronic circuits. First, the 5.05 kΩ resistance value supports precision signal conditioning and measurement applications. Furthermore, the thin film resistor structure minimizes resistance drift and improves overall circuit reliability. Because the device maintains a low temperature coefficient, it preserves accuracy across a wide temperature range.
Moreover, the axial through-hole design allows easy installation in instrumentation boards and legacy electronics assemblies. In addition, the tight tolerance specification improves repeatability in precision circuit calibration. Therefore, the resistor is widely used in industrial measurement equipment, laboratory electronics, and high-accuracy analog circuits. Overall, the Vishay PTF56 series resistor provides dependable precision performance, excellent thermal stability, and long-term reliability for demanding applications.
