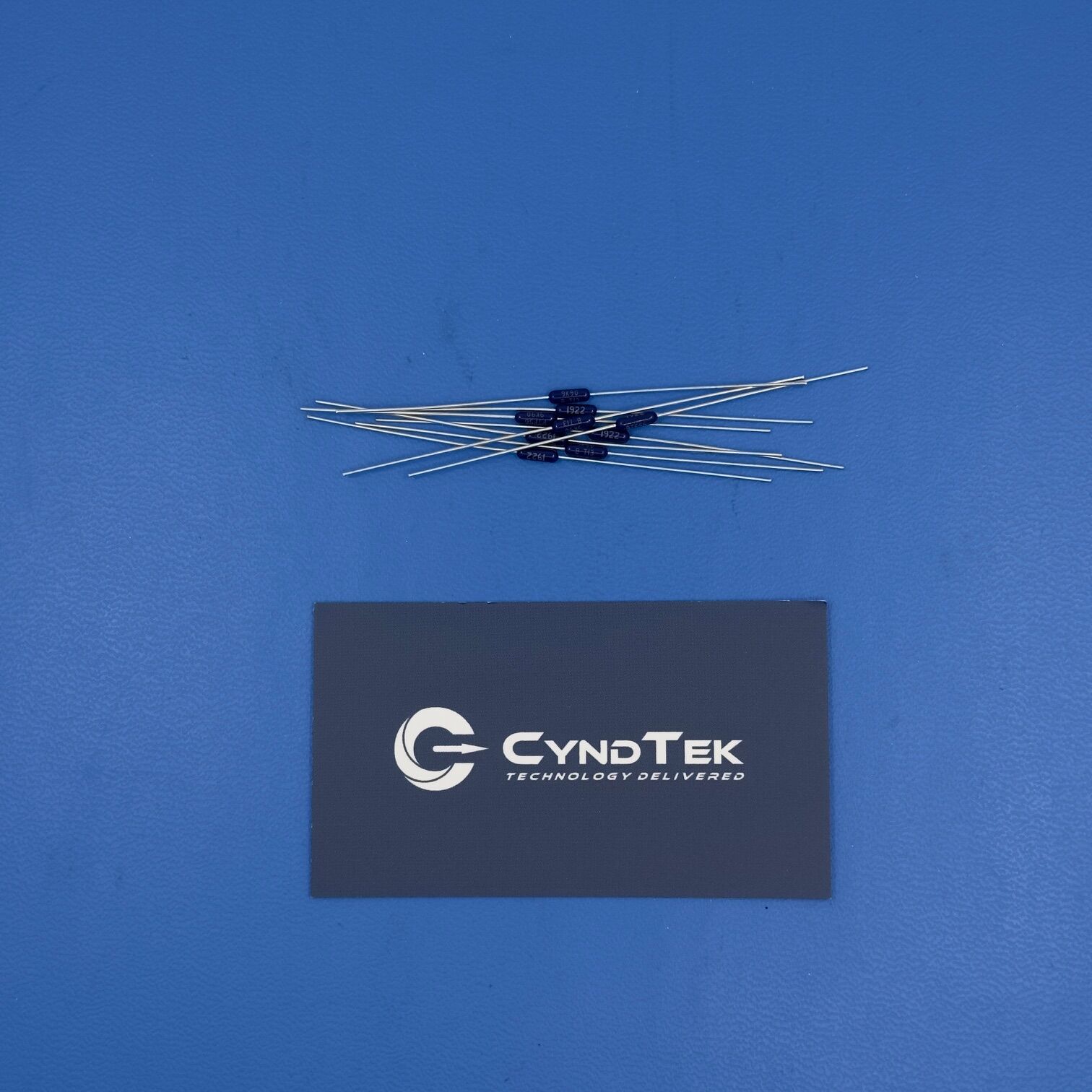

PTF569K9000BYEK Specifications
Manufacturer: Vishay
Part Number: PTF569K9000BYEK
Product Type: Precision Thin Film Resistor
Resistance Value: 9.9 kΩ
Tolerance: ±0.1%
Power Rating: 0.5 W
Temperature Coefficient: ±5 ppm/°C
Resistor Technology: Thin Film
Mounting Type: Through Hole
Lead Style: Axial Lead
Series: PTF56 Precision Series
Operating Temperature Range: -55°C to +155°C
Application Class: Precision Instrumentation
Packaging: Factory
Key Features
The PTF569K9000BYEK is a high-precision thin film resistor designed for accurate resistance control in precision analog circuits. It provides a resistance value of 9.9 kΩ with tight ±0.1% tolerance for stable and predictable electrical performance. Additionally, the thin film resistor technology delivers excellent temperature stability with a low temperature coefficient of ±5 ppm/°C. The axial lead configuration allows straightforward integration into through-hole circuit boards and instrumentation assemblies. Because the Vishay PTF56 series is engineered for precision measurement systems, this resistor maintains consistent resistance values across temperature variations and extended operational life. As a result, it delivers dependable performance in high-accuracy electronic circuits.
Applications
Precision instrumentation systems
Analog signal conditioning circuits
Measurement and calibration equipment
Industrial control electronics
Test and measurement platforms
High accuracy voltage divider networks
Data acquisition systems
Laboratory electronic equipment
Product Overview
The PTF569K9000BYEK from Vishay provides precise resistance performance for demanding analog and instrumentation applications. First, the 9.9 kΩ resistance value supports accurate signal conditioning and voltage reference circuits. Furthermore, the tight ±0.1% tolerance improves circuit calibration and system accuracy. Because thin film resistor technology offers superior stability compared to conventional resistor types, it maintains resistance consistency during long-term operation.
Moreover, the low temperature coefficient minimizes resistance drift across wide operating temperatures. In addition, the axial through-hole format supports installation in both legacy and modern instrumentation electronics. Therefore, this resistor is well suited for measurement systems, calibration equipment, and precision analog circuitry. Overall, the Vishay PTF56 series resistor provides dependable precision performance, stable electrical characteristics, and long-term reliability.
