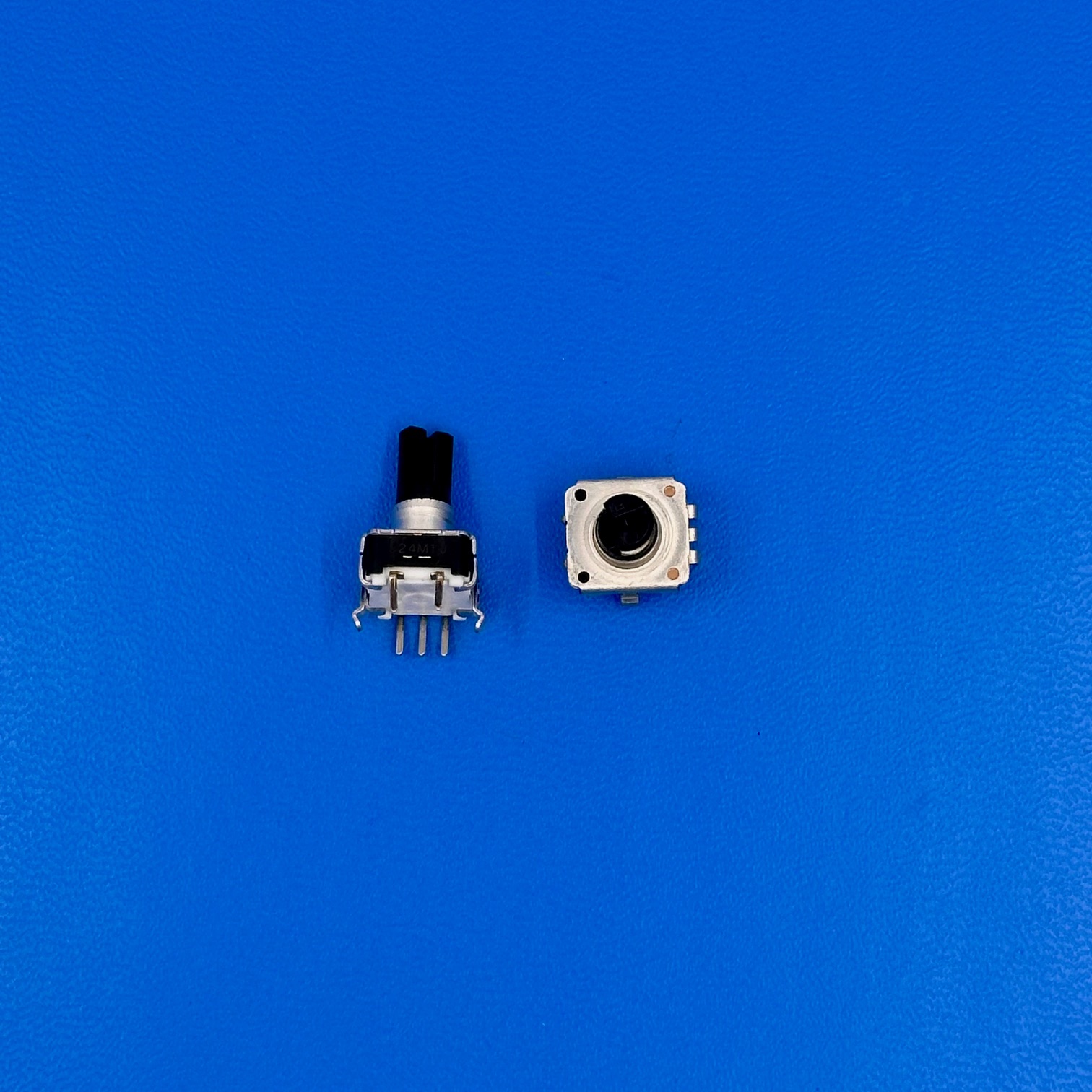

RE0124PVB20FINB1-2-24E

RE0124PVB20FINB1-2-24E

$1.00

ENCODER; DIGITAL CONTACTING ENCODER, 24 CPR,
  • Manufacturer: Noble JP
  • Part Number: RE0124PVB20FINB1-2-24E
  • Packaging: Tray/Bulk
  • Quantity: Each
  • Datecode: 22+

Availability: 205 in stock

SKU TR4D Category Brand:

RE0124PVB20FINB1-2-24E Specifications

Manufacturer: Noble
Part Number: RE0124PVB20FINB1-2-24E
Product Type: Rotary Encoder
Encoder Type: Digital Contacting Encoder
Resolution: 24 Counts Per Revolution (CPR)
Shaft Style: Knurled Shaft
Mounting Style: Through Hole with Snap-In Tabs
Termination Style: PC Pins
Operating Voltage: 5 V DC Typical
Output Type: Quadrature (2-bit Gray Code)
Rotational Torque: Low Torque for Smooth Rotation
Switch Type: No Push-Switch Included
Mounting Orientation: Vertical
Operating Temperature Range: -10°C to +70°C
RoHS Status: RoHS Compliant

Key Features

The RE0124PVB20FINB1-2-24E from Noble is a compact rotary encoder designed for digital signal feedback in precision electronic interfaces. With a resolution of 24 counts per revolution, it enables accurate rotational input recognition for applications requiring smooth user interaction. Its knurled shaft allows for direct knob attachment, while the through-hole and snap-in design ensures secure PCB mounting. This encoder provides stable quadrature output and long mechanical life, making it well-suited for devices that require consistent tactile feedback. Furthermore, its compact size and vertical orientation allow for tight enclosure integration without sacrificing usability.

Applications

Volume and menu navigation controls in audio mixers and amplifiers
Rotational input for industrial control interfaces and operator panels
Position feedback in home appliances with user adjustment dials
Embedded systems requiring user-tuned variable input
Digital rotary adjustments in automotive interior control modules

Product Overview

The RE0124PVB20FINB1-2-24E is a durable digital contacting rotary encoder from Noble, offering 24 CPR resolution and reliable quadrature signal output. Its smooth low-torque rotation supports repeated use in professional-grade interfaces, including audio, control, and embedded system applications. The encoder is housed in a compact form factor and built to operate reliably across a standard industrial temperature range. Designers can implement this component with confidence in systems that demand tactile precision, electrical durability, and mechanical reliability. Its direct PCB mounting configuration also streamlines integration and manufacturing for control boards with dense component placement.
