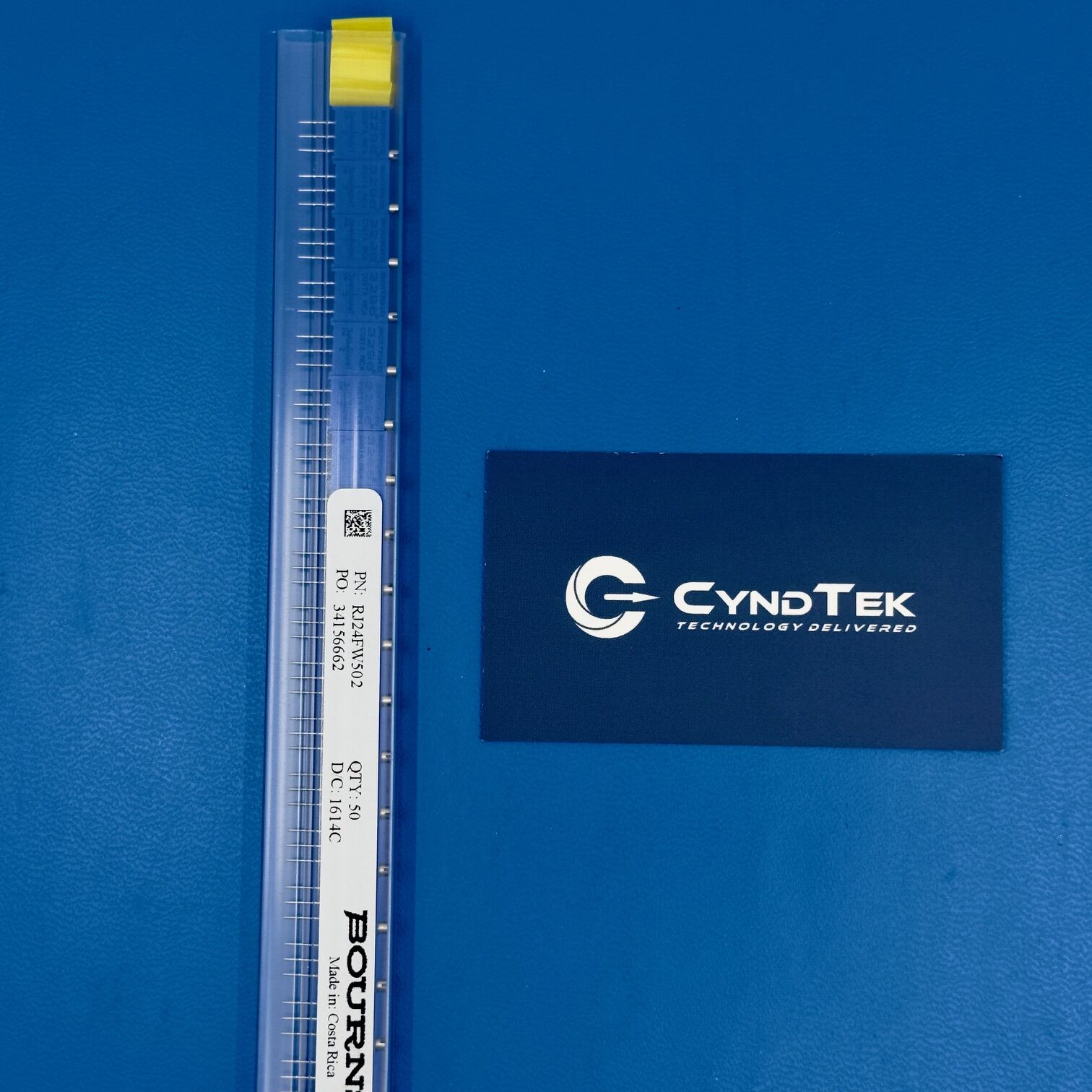

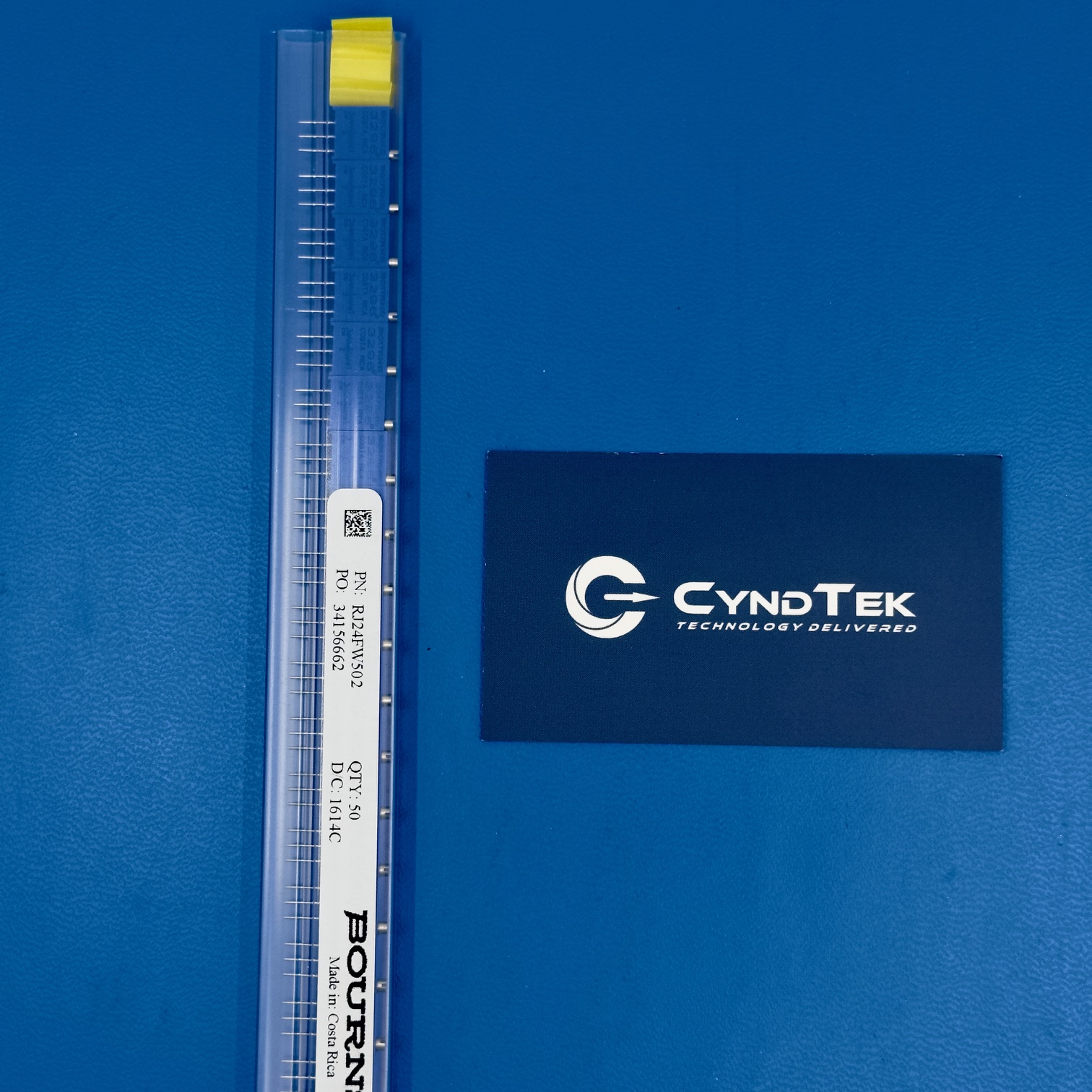

RJ24FW502 Specifications
Manufacturer: Bourns
Part Number: RJ24FW502
Product Type: Trimmer Potentiometer
Resistance Value: 5 kOhm
Tolerance: ±10%
Adjustment Type: Single Turn Trimmer
Power Rating: 0.5 W Typical
Mounting Style: Through Hole
Package Type: 3/8 Inch Square Trimmer
Termination Style: Three Lead
Adjustment Direction: Top Adjustment
Operating Temperature Range: -55°C to +125°C
Applications Class: Precision Adjustment Components
Packaging: Factory
Key Features
The RJ24FW502 is a precision trimmer potentiometer designed for circuit calibration and adjustment. It provides a resistance value of 5 kiloohms with a compact 3/8 inch square package. Additionally, the single turn adjustment mechanism allows quick and precise resistance tuning. Because trimmer potentiometers enable fine electrical adjustment, engineers frequently use them in calibration circuits and analog signal control systems. As a result, the RJ24FW502 supports reliable circuit tuning in electronic equipment.
Applications
Analog calibration circuits
Instrumentation electronics
Industrial control equipment
Power supply adjustment circuits
Signal conditioning electronics
Communication hardware tuning
Embedded analog control systems
Test and measurement equipment
Product Overview
The RJ24FW502 trimmer potentiometer from Bourns provides a dependable solution for adjustable resistance in electronic circuits. First, the 5 kiloohm resistance value supports common calibration and tuning functions in analog electronics.
Additionally, the compact 3/8 inch square form factor allows the component to fit easily within space constrained circuit boards. Because electronic systems often require fine adjustment during manufacturing or maintenance, trimmer potentiometers remain widely used in instrumentation and control electronics.
Moreover, the through-hole mounting design supports secure mechanical installation and reliable electrical connections. Engineers frequently select Bourns trimmer potentiometers for calibration functions in industrial electronics, communication equipment, and measurement systems.
Therefore, the RJ24FW502 remains a practical adjustment component for electronic circuits that require precise resistance tuning and long term stability.
